5 Technical Specifications

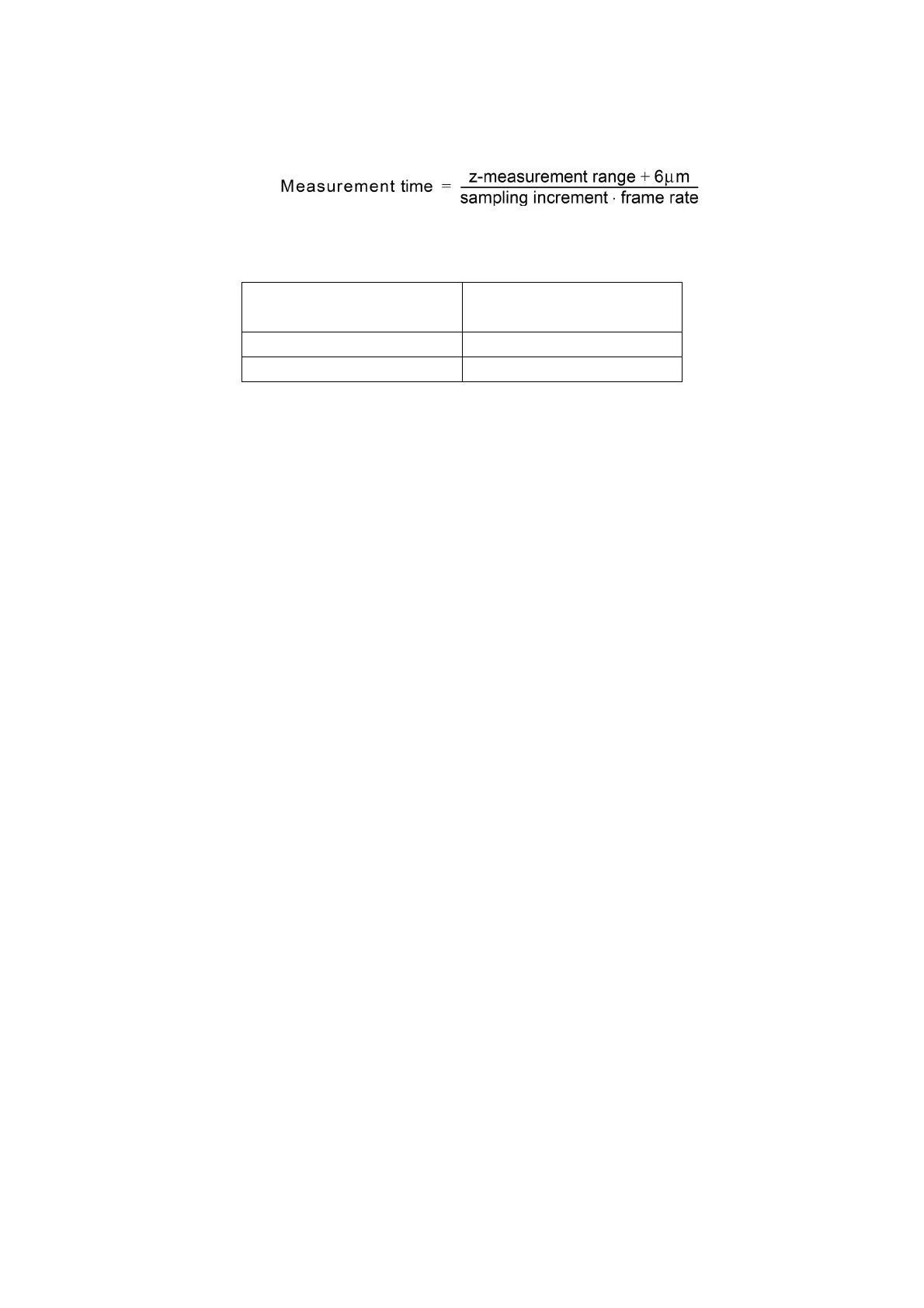

Calculating the Measurement Time
Equation 5.1
The following values for the measurement time result from a z measurement
range of 15 µm and a frame rate of 140 images per second:
5.4 TMS-E-500 Controller
Mains Connection
Ambient Conditions
Housing
Sampling increment Measurement time
[nm] [s]
87 (nominal) ~1.8 (without averaging)
196 ~0.8 (without averaging)
Mains voltage: 100…240 VAC ±10%, 50/60 Hz
Power consumption: max. 120 VA
Fuses: 3.15 A/slow-blow
Protection class: 1 (protective grounding)
Operating temperature: +5… +33 °C (41…91.4 °F)
Storage temperature: –10…+65 °C (14…149 °F)
Air humidity: max. 80%, non-condensing
Dimensions (w x h x d): Without angle brackets, feet and grips:
450mmx132mmx324mm (19", 84TE/3HE)
With angle brackets, feet and grips:
480mmx150mmx362mm (19", 84TE/3HE)
Weight: 7.5 kg
