Polytec TMS-500 TopMap Pro.Surf - A-SPK-0003 Tip-Tilt Unit

5-9
5 Technical Specifications
5.6 A-SPK-0003 Tip-Tilt Unit
Dimensions

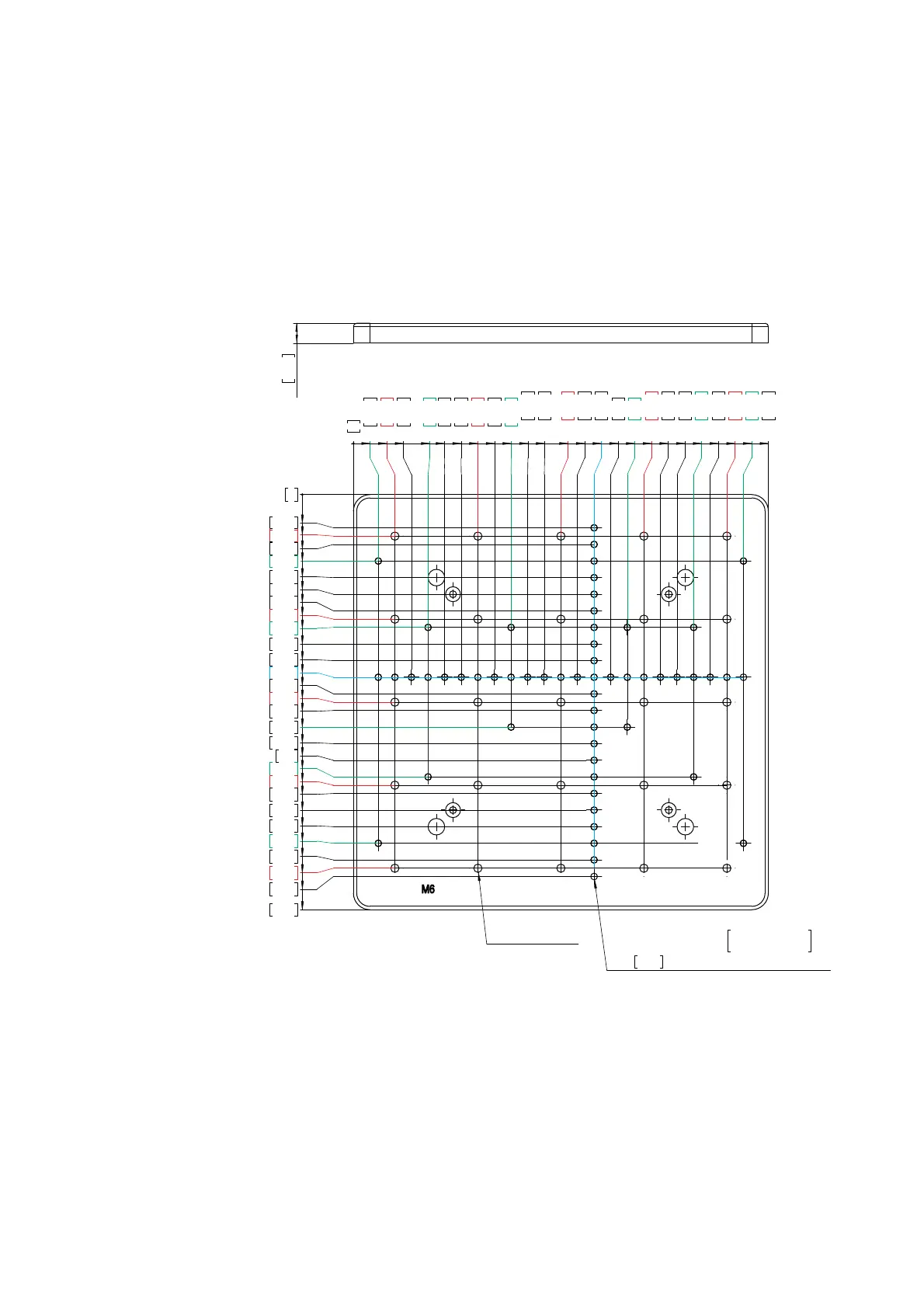

Figure 5.5: Dimensions of the object support on the tip-tilt unit, metric design (Dimensions
not specified are given in mm, dimensions in brackets in inch.)
Weight (tip-tilt unit and spacer
ring): 8.5 kg
Dimensions spacer ring (w x h):230 mm x 80 mm
Max. load capacity: 10 kg (refer to S
ECTION 4.4)
             




 






       
                 


   
 

























































