2.1.2 Internal View

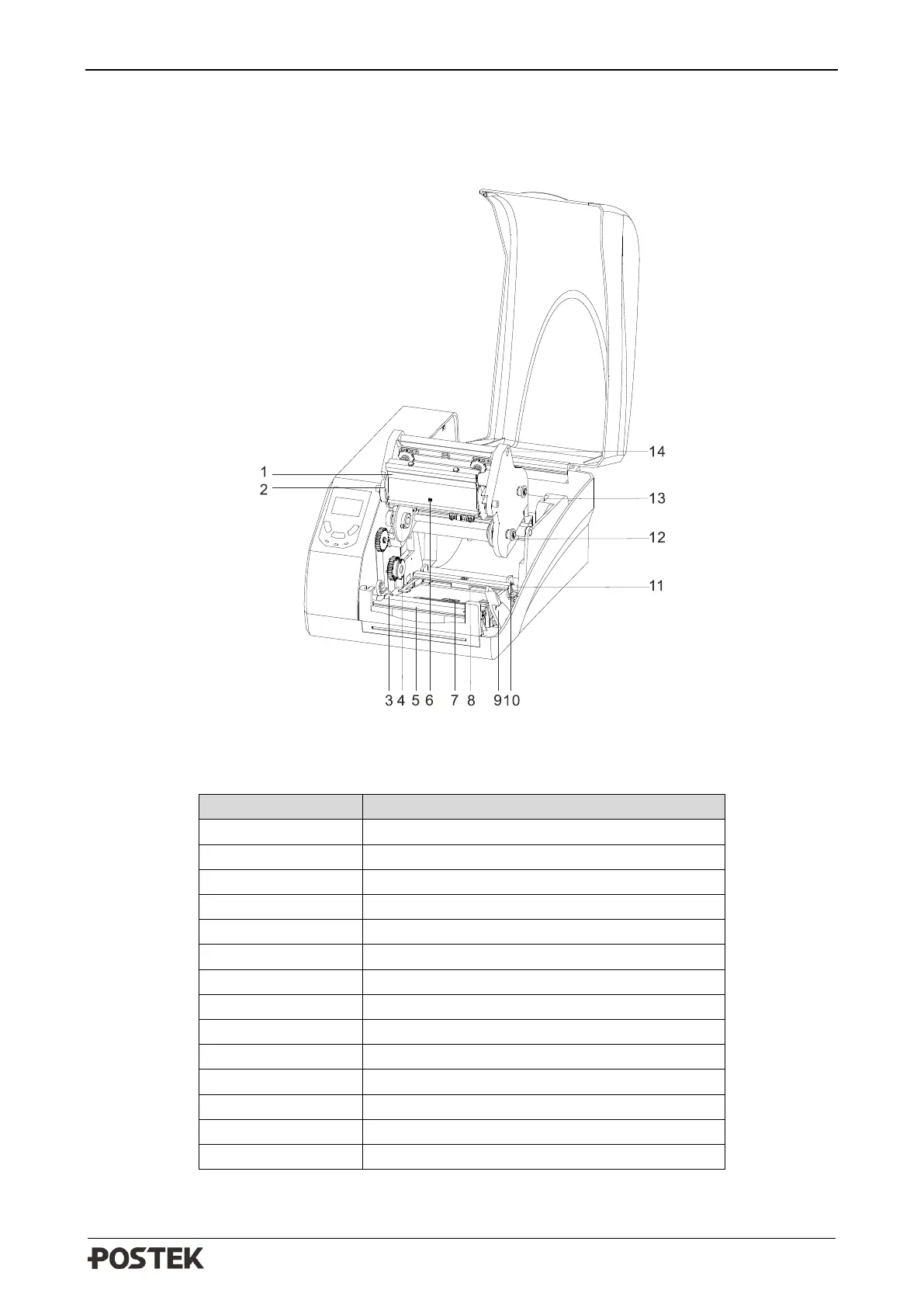

Figure 2-2 shows the detailed structure of the printer.
Figure 2-2 Internal View
Table 2-2 Internal View Description
Number
Description
1
Printhead
2
Printhead Bracket
3
Platen Roller
4
Left Mount_Ribbon supply
5
RFID R/W Antenna
6
Ribbon End Sensor
7
Reflective Media Sensor
8
Transmissive Media Sensor
9
Printhead Release Lever
10
Media Guide
11
Media Guide Rod
12
Release Knob
13
Media Compartment
14
Printhead Module
