POWER CONNECTION
The following schemes illustrate the SD700 internal power structure.

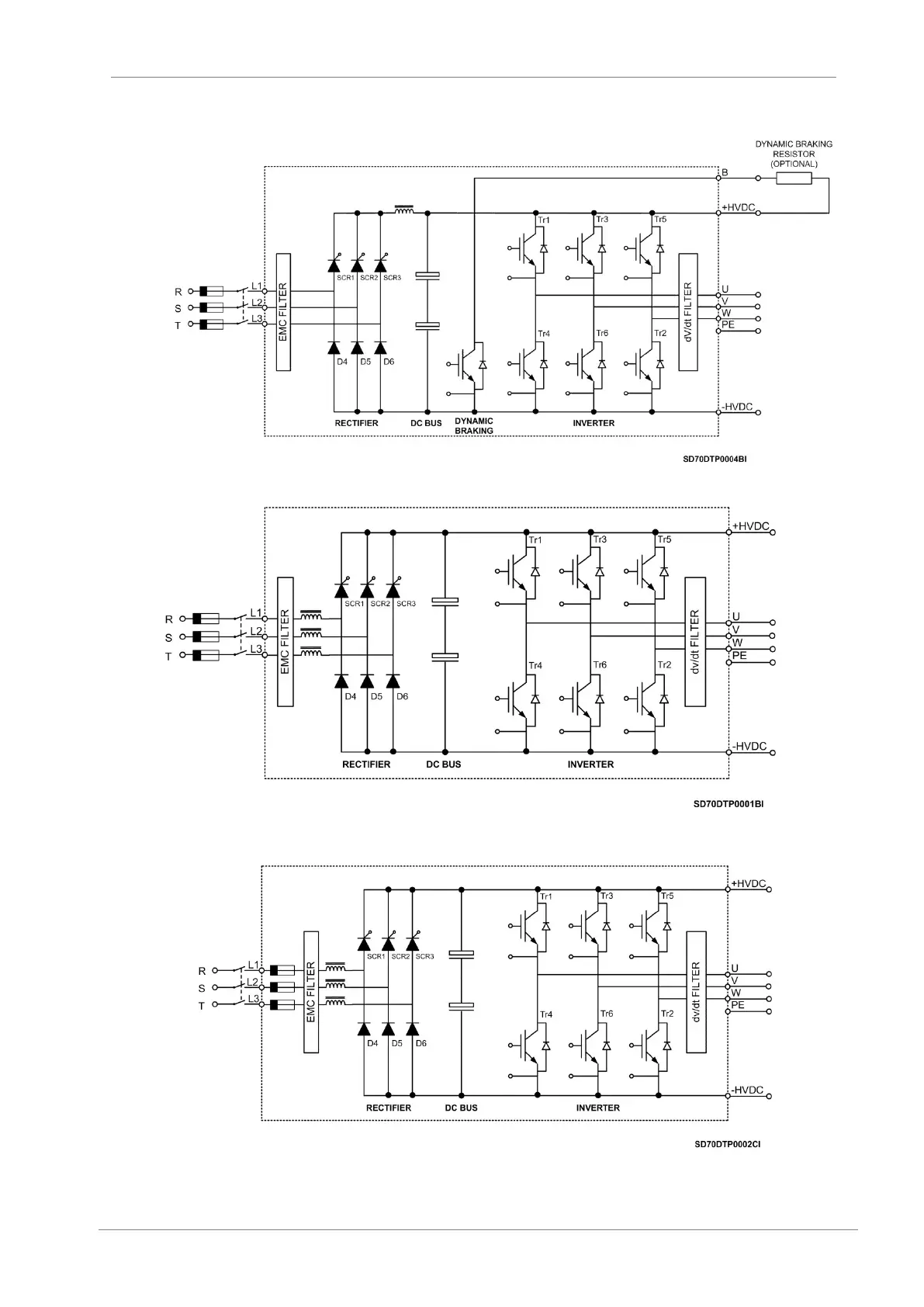

Figure 6.3 SD700 frames 1 and 2 power electronics
Figure 6.4 SD700 frames 3 and 4 power electronics
Figure 6.5 SD700 frames 5 to 11 power electronics
