SD700 SERIES
POWER ELECTRONICS
40
POWER CONNECTION
6.5. Multipulse drives
This section specifies the technical characteristics that may be considered by the installer to select the
appropriate transformer for a multipulse drive. The configurations given in this section are recommendations.
The user could use another configuration that may not appear in this section.
6.5.1. 12 Pulses Configuration Example
General characteristics:
 Suggested Vector Diagram: Dd0/Dy11
 Nominal Secondary Windings Voltage (V): 3xVn
1
 Recommended Tap Voltage on Primary Side (%): ±10%
 Total Nominal Current (A): In (A)
 Total Overload (A): 120% ND (60 seconds)
150% HD (60 seconds)
 Short Circuit Impedance (%): < 7%
 Secondary Winding Power Factor: 0.90
 Recommended Rated Power (kVA): +20% Motor Power

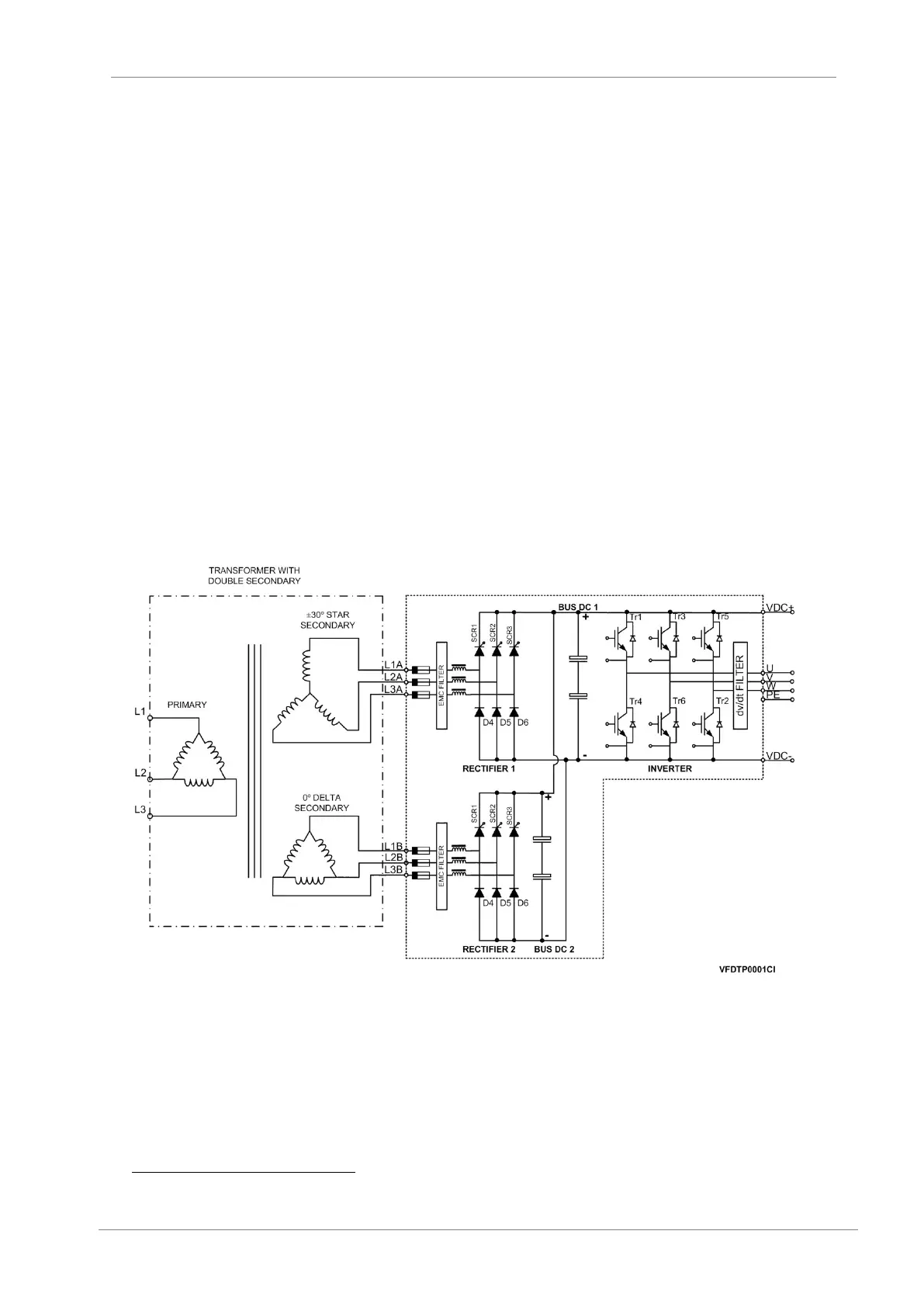

SD700 12 pulses connection scheme:
Figure 6.12 SD700 12 pulses
1
For improved performance, it is recommended to increase a 3% the nominal secondary voltage.
