POWER ELECTRONICS
MODBUS COMMUNICATION
71
8.3. RS232 Connections

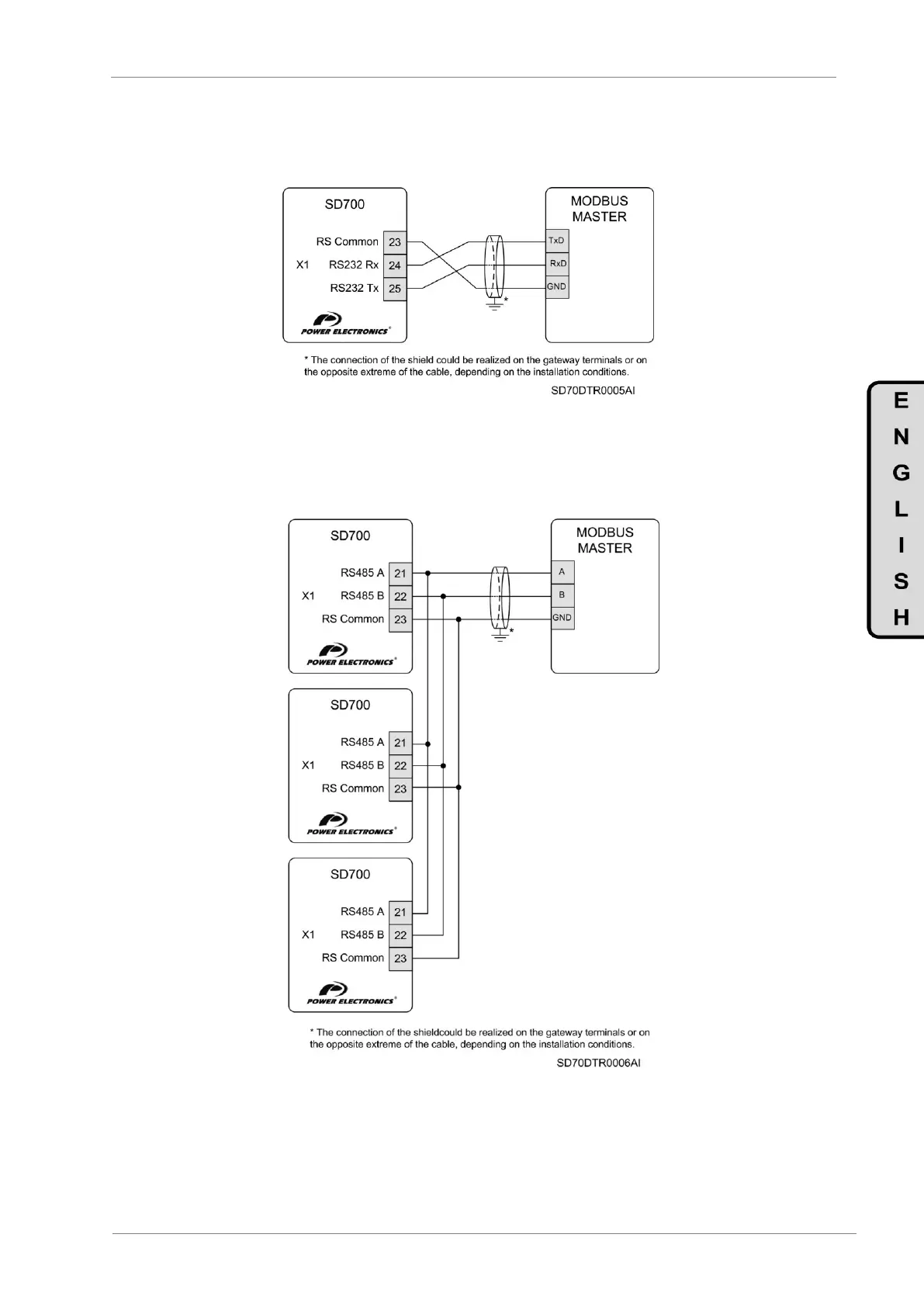

The following diagram shows a common wiring for a RS232 connection:
Figure 8.2 RS232 Connection
8.4. RS485 Connections
The following diagram shows a common wiring for a RS232 connection RS485:
Figure 8.3 RS485 connection
