DIMENSIONS
10.3. Dimensions of Frames 6 and 7
FRAME
INPUT VOLTAGE
EQUIPMENTS
6
230VAC (±20%)
SD70330 2X Y, SD70370 2X Y, SD70460 2X Y
380 – 500VAC (-20% to +10%)
SD70330 5X Y, SD70370 5X Y, SD70460 5X Y, SD70330 5X 12 Y, SD70370 5X 12 Y,
SD70460 5X 12 Y
525VAC (-20% to +10%)
SD70270 7X Y, SD70295 7X Y, SD70340 7X Y, SD70270 7X 12 Y, SD70295 7X 12 Y,
SD70340 7X 12 Y
690VAC (-15% to +10%)
SD70210 6X Y, SD70260 6X Y, SD70320 6X Y, SD70210 6X 12 Y, SD70260 6X 12 Y,
SD70320 6X 12 Y
7
230VAC (±20%)
SD70580 2X Y, SD70650 2X Y, SD70720 2X Y
380 – 500VAC (-20% to +10%)
SD70580 5X Y, SD70650 5X Y, SD70720 5X Y, SD70580 5X 18 Y, SD70650 5X 18 Y,
SD70720 5X 18 Y
525VAC (-20% to +10%)
SD70425 7X Y, SD70470 7X Y, SD70535 7X Y, SD70425 7X 18 Y, SD70470 7X 18 Y,
SD70535 7X 18 Y
690VAC (-15% to +10%)
SD70385 6X Y, SD70460 6X Y, SD70385 6X 18 Y, SD70460 6X 18 Y
FRAME
DIMENSIONS (mm)
WEIGHT
(kg)
H1
H2
W1
W2
W3
D1
D2
Y1
Y2
Y3
Y4
6
1712
1667
786
747
-
529
460
1602
1208.5
230.5
81.5
335
7
1712
1667
1132
1097
-
529
460
1602
1208.5
230.5
81.5
479

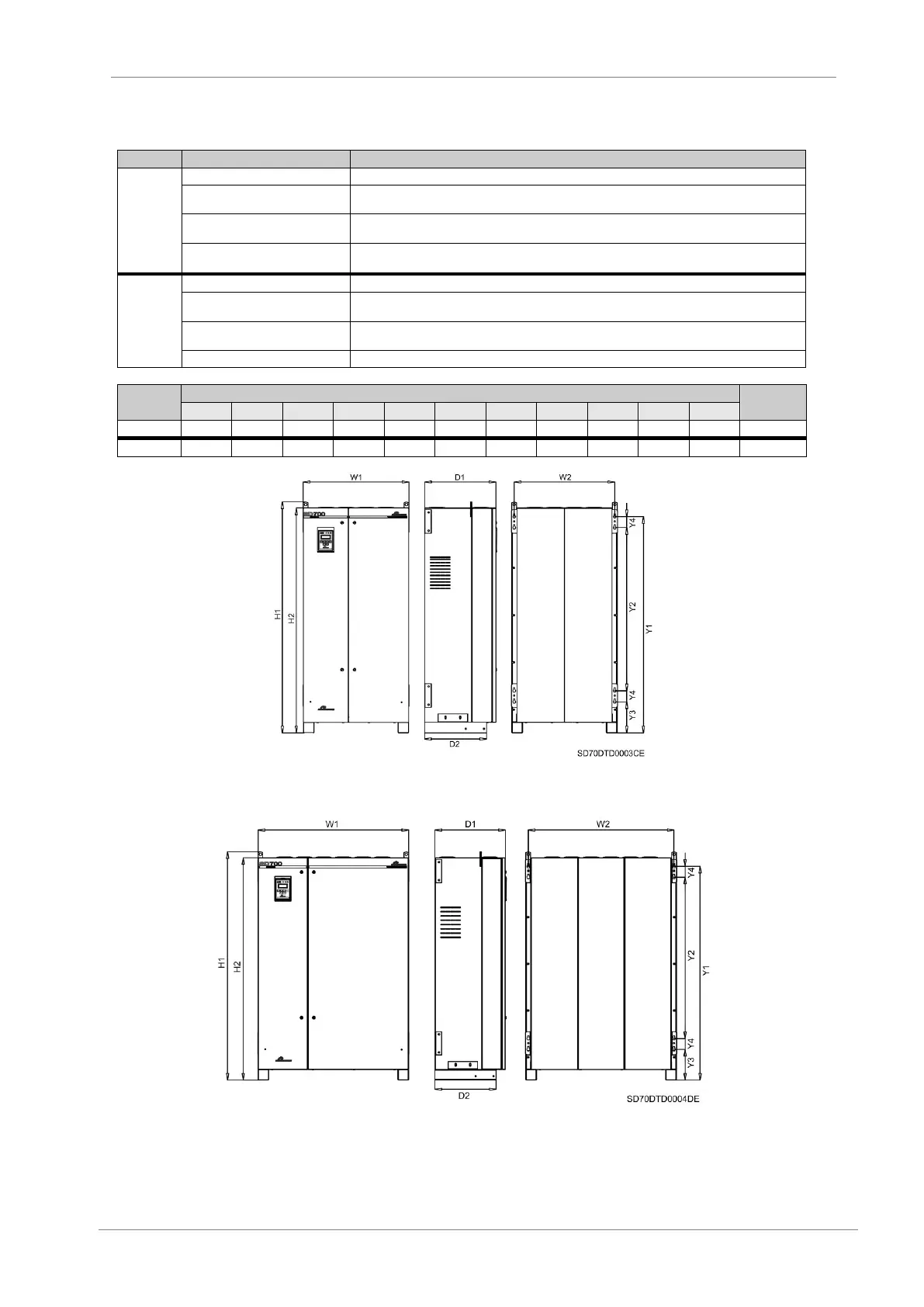

Figure 10.6 Dimensions of Frame 6
Figure 10.7 Dimensions of Frame 7
