POWER ELECTRONICS
SD700 SERIES
DIMENSIONS
77

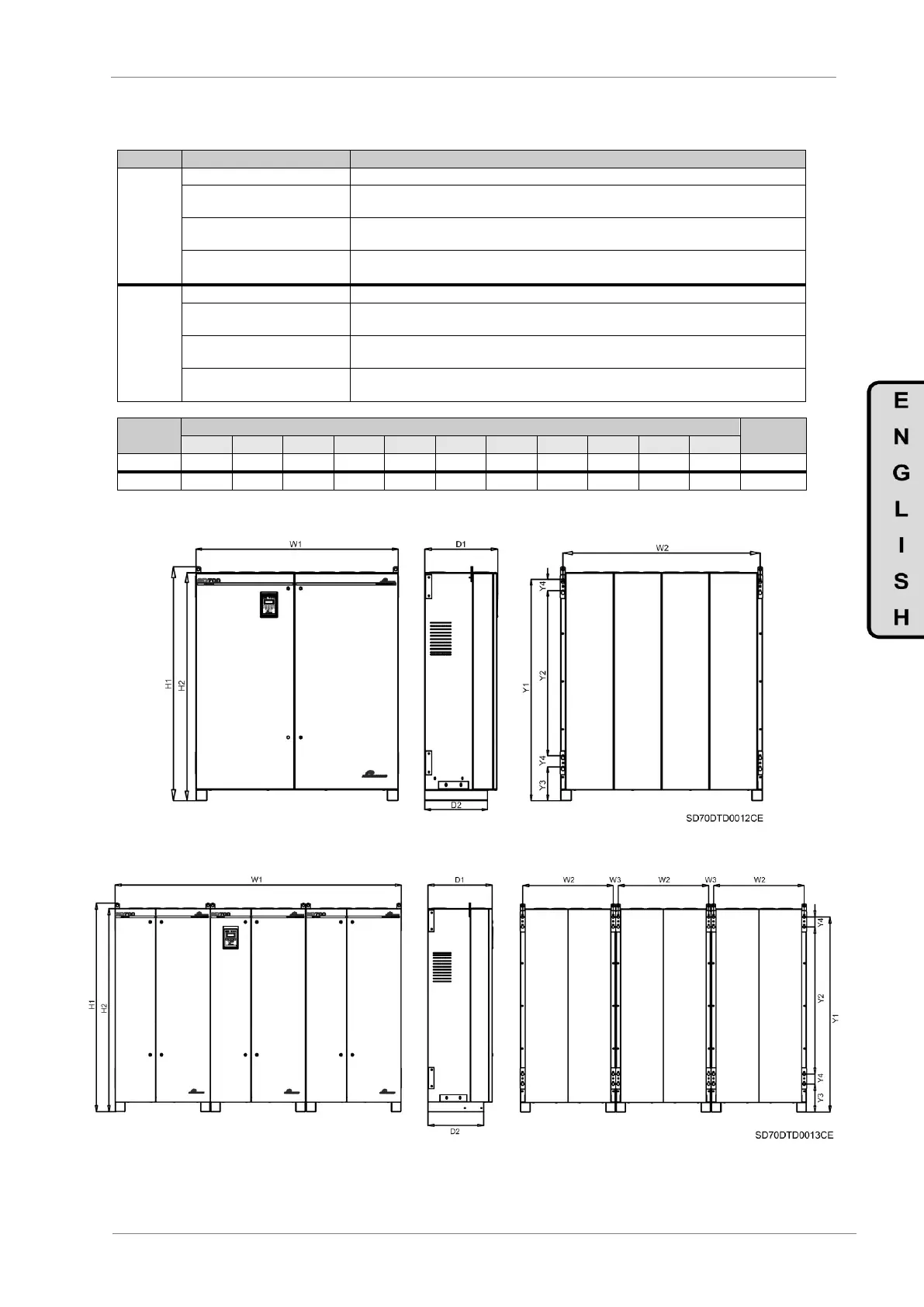

10.4. Dimensions of Frames 8 and 9
FRAME
INPUT VOLTAGE
EQUIPMENTS
8
230VAC (±20%)
-
380 – 500VAC (-20% to +10%)
SD70840 5X Y, SD70925 5X Y, SD70990 5X Y, SD70840 5X 12 Y, SD70925 5X 12 Y,
SD70990 5X 12 Y, SD70840 5X 24 Y, SD70925 5X 24 Y, SD70990 5X 24 Y
525VAC (-20% to +10%)
SD70660 7X Y, SD70750 7X Y, SD70660 7X 12 Y, SD70750 7X 12 Y, SD70660 7X 24
Y, SD70750 7X 24 Y
690VAC (-15% to +10%)
SD70550 6X Y, SD70660 6X Y, SD70550 6X 12 Y, SD70660 6X 12 Y, SD70550 6X 24
Y, SD70660 6X 24 Y
9
230VAC (±20%)
-
380 – 500VAC (-20% to +10%)
SD71150 5X Y, SD71260 5X Y, SD71440 5X Y, SD71150 5X 12 Y, SD71260 5X 12 Y,
SD71440 5X 12 Y, SD71150 5X 18 Y, SD71260 5X 18 Y, SD71440 5X 18 Y
525VAC (-20% to +10%)
SD70845 7X Y, SD70950 7X Y, SD70845 7X 12 Y, SD70950 7X 12 Y,
SD70845 7X 18 Y, SD70950 7X 18 Y
690VAC (-15% to +10%)
SD70750 6X Y, SD70840 6X Y, SD70950 6X Y, SD70750 6X 12 Y, SD70840 6X 12 Y,
SD70950 6X 12 YSD70750 6X 18 Y, SD70840 6X 18 Y, SD70950 6X 18 Y
FRAME
DIMENSIONS (mm)
WEIGHT
(kg)
H1
H2
W1
W2
W3
D1
D2
Y1
Y2
Y3
Y4
8
1712
1667
1482
1447
-
529
460
1619
1209
247.5
81.5
585
9
1712
1667
2352
747
38
529
460
1619
1209
247.5
81.5
1005
Figure 10.8 Dimensions of Frame 8
Figure 10.9 Dimensions of Frame 9
