DIMENSIONS
10.5. Dimensions of Frames 10 and 11
FRAME
INPUT VOLTAGE
EQUIPMENTS
10
230VAC (±20%)
-
380 – 500VAC (-20% to +10%)
SD71580 5X Y, SD71800 5X Y, SD71580 5X 18 Y, SD71800 5X 18 Y
525VAC (-20% to +10%)
SD71070 7X Y, SD71205 7X Y, SD71340 7X Y, SD71605 7X Y, SD71070 7X 18 Y,
SD71205 7X 18 Y, SD71340 7X 18 Y, SD71605 7X 18 Y
690VAC (-15% to +10%)
SD71140 6X Y, SD71270 6X Y, SD71420 6X Y, SD71140 6X 18 Y, SD71270 6X 18 Y,
SD71420 6X 18 Y
11
230VAC (±20%)
-
380 – 500VAC (-20% to +10%)
SD72200 5X Y, SD72500 5X Y, SD72200 5X 12 Y, SD72500 5X 12 Y, SD72200 5X 18
Y, SD72500 5X 18 Y, SD72200 5X 24 Y, SD72500 5X 24 Y,
525VAC (-20% to +10%)
SD72005 7X Y, SD72005 7X 12 Y, SD72005 7X 18 Y, SD72005 7X 24 Y
690VAC (-15% to +10%)
SD71500 6X Y, SD71800 6X Y, SD71500 6X 12 Y, SD71800 6X 12 Y,
SD71500 6X 18 Y, SD71800 6X 18 Y, SD71500 6X 24 Y, SD71800 6X 24 Y
FRAME
DIMENSIONS (mm)
WEIGHT
(kg)
H1
H2
W1
W2
W3
D1
D2
Y1
Y2
Y3
Y4
10
1712
1667
3402
1097
38
529
460
1619
1209
247.5
81.5
1437
11
1712
1667
4452
1447
38
529
460
1619
1209
247.5
81.5
1755

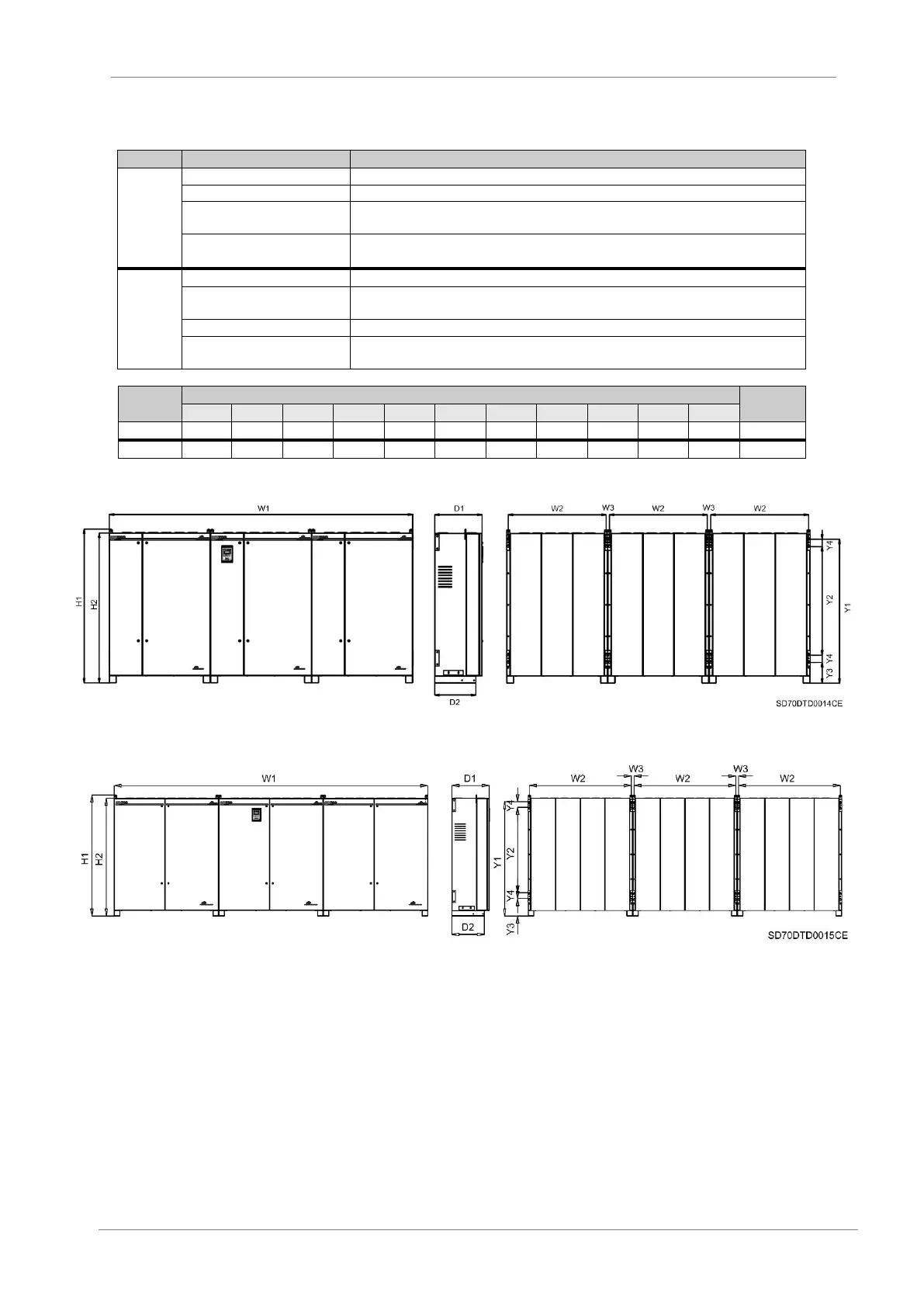

Figure 10.10 Dimensions of Frame 10
Figure 10.11 Dimensions of Frame 11
