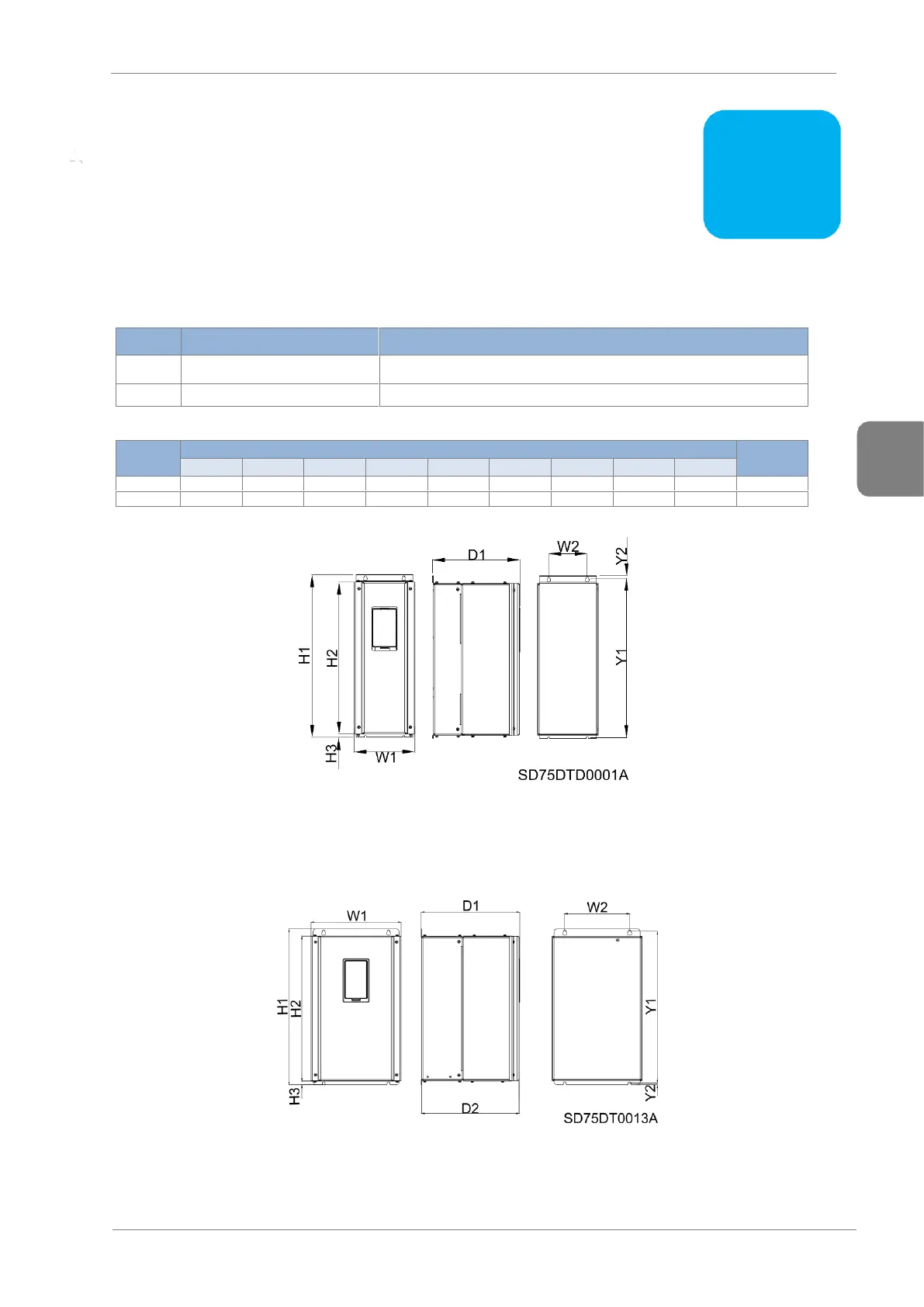

DIMENSIONS
21
EN
DIMENSIONS
Dimensions of Frames 1 and 2
TALLA
TENSIÓN DE ENTRADA
EQUIPOS
1
380VAC – 480VAC (-10% a +10%)
SD750006 5B06DEF, SD750008 5B06DEF, SD750011 5B06DEF, SD750015 5B06DEF,
SD750024 5B06DEF, SD750030 5B06DEF, SD750040 5B06DEF
2
380 – 480VAC (-10% a +10%)
SD750048 5B06DEF, SD750060 5B06DEF, SD750075 5B06DEF
TALLA
DIMENSIONES (mm)
PESO (kg)
H1
H2
H3
W1
W2
D1
D2
Y1
Y2
1
507
474
10
190
120
273
-
498
7
15
2
510
474
13
296
212
323
320
497
6
26
Dimensions of Frame 1
Dimensions of Frame 2
