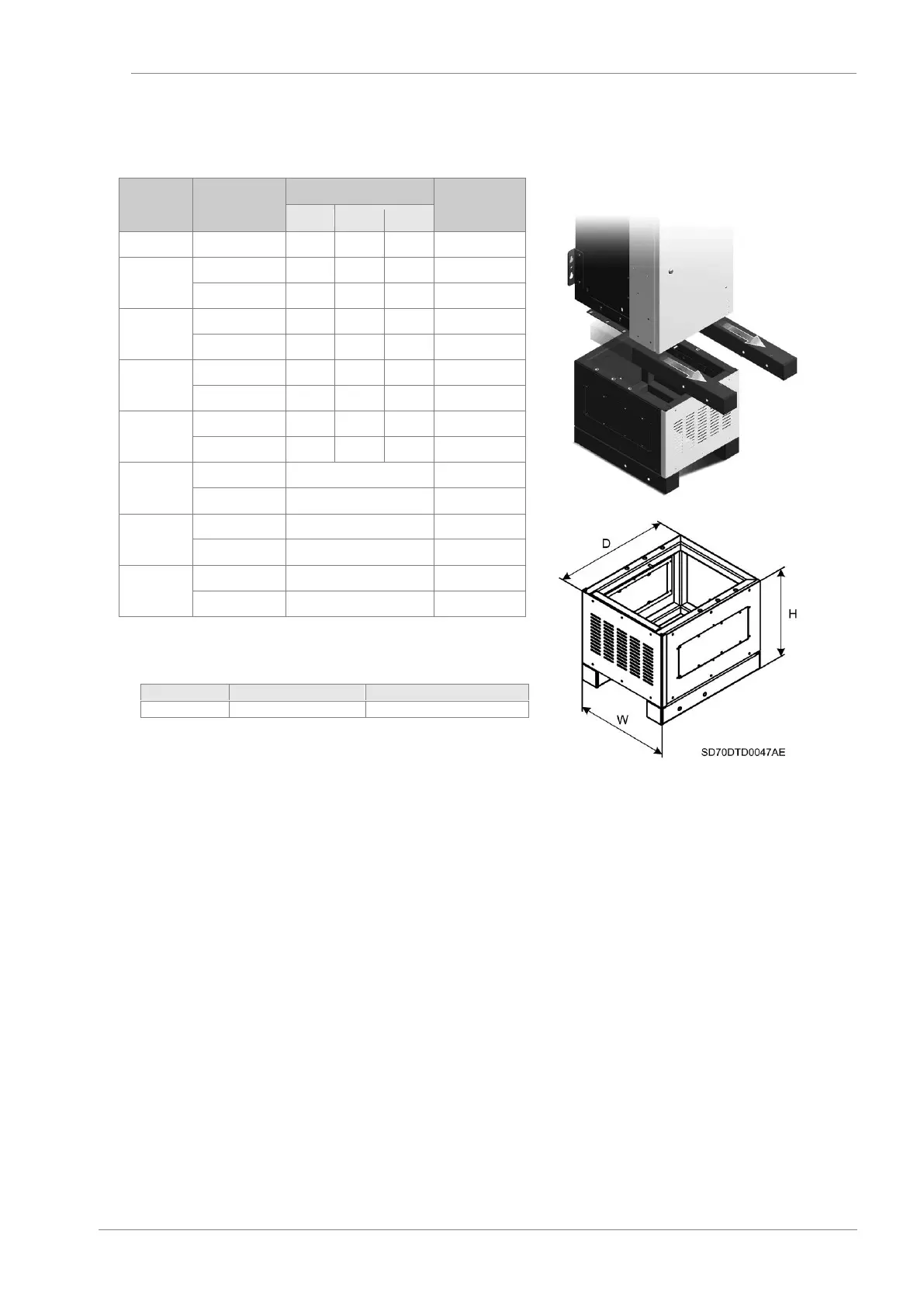

OPTIONAL EQUIPMENT
Plinths
FRAME
CODE
Dimensions (mm)
Total Drive
Height (mm)
W
H
D
4
SD75PL0417
320
464
438.5
1712
5
SD75PL0520
431
413.5
529
2000
SD75PL0522
431
613.5
529
2200
6
SD75PL0620
786
413.5
529
2000
SD75PL0622
786
613.5
529
2200
7
SD75PL0720
1132
413.5
529
2000
SD75PL0722
1132
613.5
529
2200
8
SD75PL0820
1482
413.5
529
2000
SD75PL0822
1482
613.5
529
2200
9
SD75PL0920
3 x SD75PL0620
2000
SD75PL0922
3 x SD75PL0622
2200
10
SD75PL1020
3 x SD75PL0720
2000
SD75PL1022
3 x SD75PL0722
2200
11
SD75PL1120
3 x SD75PL0820
2000
SD75PL1122
3 x SD75PL0822
2200
Code Explanation: SD75PL0520
SD75
PL05
20
SD750 Series
Plinth for Frame 5
Total Height 2000mm
Dimensions for Plinths
