Drive mounting
This section contains assembly instructions for optimum operation of the inverter and precautions to
avoid personal injury and property damage.
SD750 drives are designed for wall or panel mounting.
The drive may become hot during operation. Install it on a surface that is fire resistant or flame retardant
and with sufficient space around the drive to allow air to circulate. Make sure to follow the space
recommendations given in section 6.3.
Wall mounting drives
The drives SD750 from frame 1 to 4 are are designed for wall mounting. In addition, the frame 4 has
optionally available a plinth that that allows its mounting on the ground..
The installation method and its location must be in accordance with the weight and dimensions of the
drive. Power Electronics recommends hanging the SD750 in a wall or solid structure using the anchors
arranged in the back, which supports the weight and possible forces generated by the wiring..
Use a level to draw a horizontal line on the mounting surface and mark the attachment points. Then,
drill the two holes of the top mounting bolts, and then install the mounting bolts. Do not fully tighten
bolts yet.
Mount the unit with the top two bolts and then fully tighten the mounting bolts. Make sure the SD750 is
flat on the mounting surface.

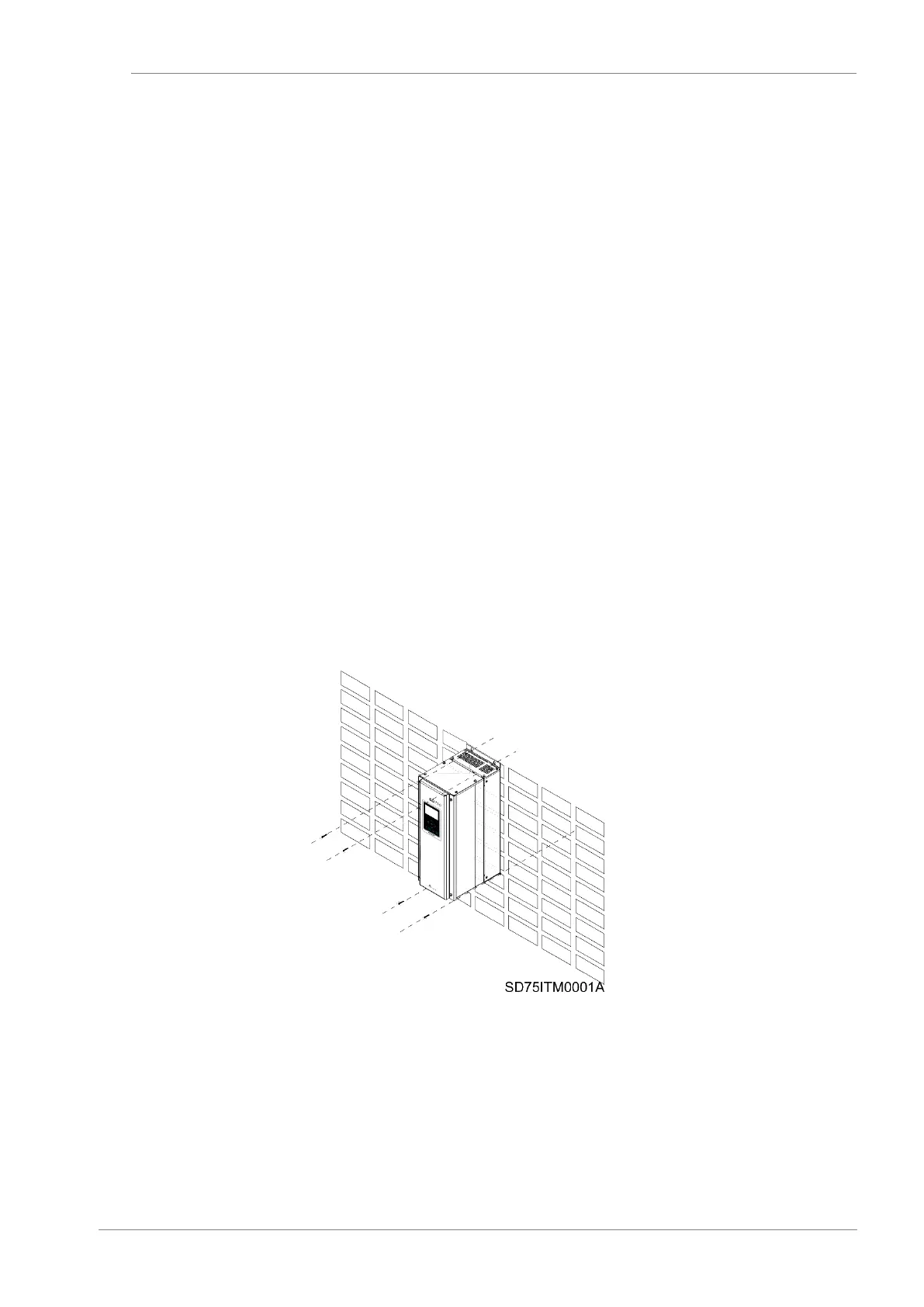

SD750 wall mounting
