Power Electronics SD750 Series User Manual

POWER ELECTRONICS
SD750
DIMENSIONS
25
EN
Dimensions of Frames 10 and 11
TALLA
TENSIÓN DE ENTRADA
EQUIPOS
10
380 – 480VAC (-10% a +10%)
SD752250 5B06DEF, SD752750 5B06DEF, SD752250 5B18DEF, SD752750 5B18DEF
11
380 – 480VAC (-10% a +10%)
SD753100 5B06DEF, SD753100 5B12DEF, SD753100 5B18DEF, SD753100 5B24DEF
TALLA
DIMENSIONES (mm)
PESO
(kg)
H1
H2
W1
W2
W3
D1
D2
Y1
Y2
Y3
Y4
10
1712
1667
3402
1097
38
529
460
1619
1209
247.5
81.5
1437
11
1712
1667
4452
1447
38
529
460
1619
1209
247.5
81.5
1755

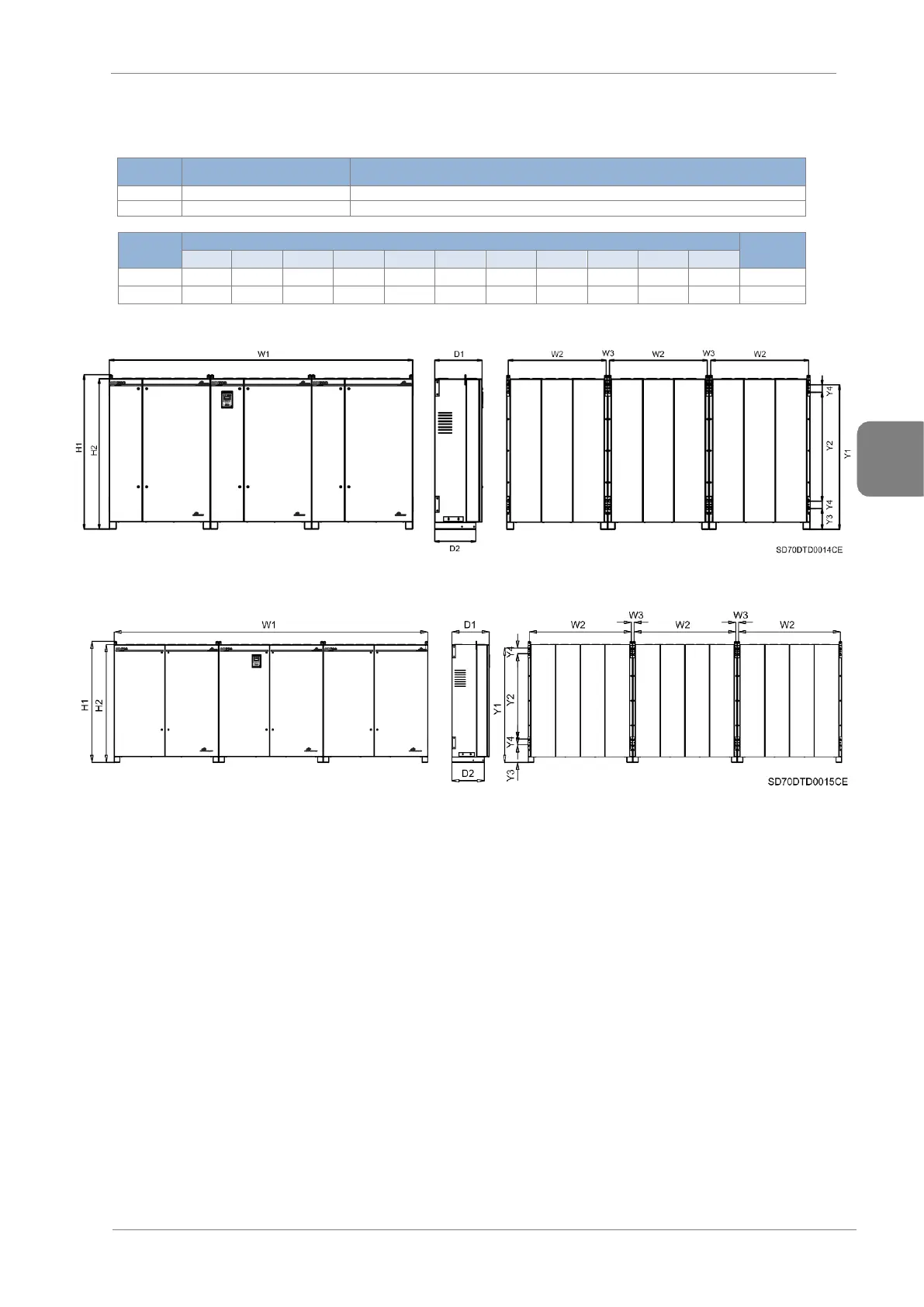

Dimensions of Frame 10
Dimensions of Frame 11
