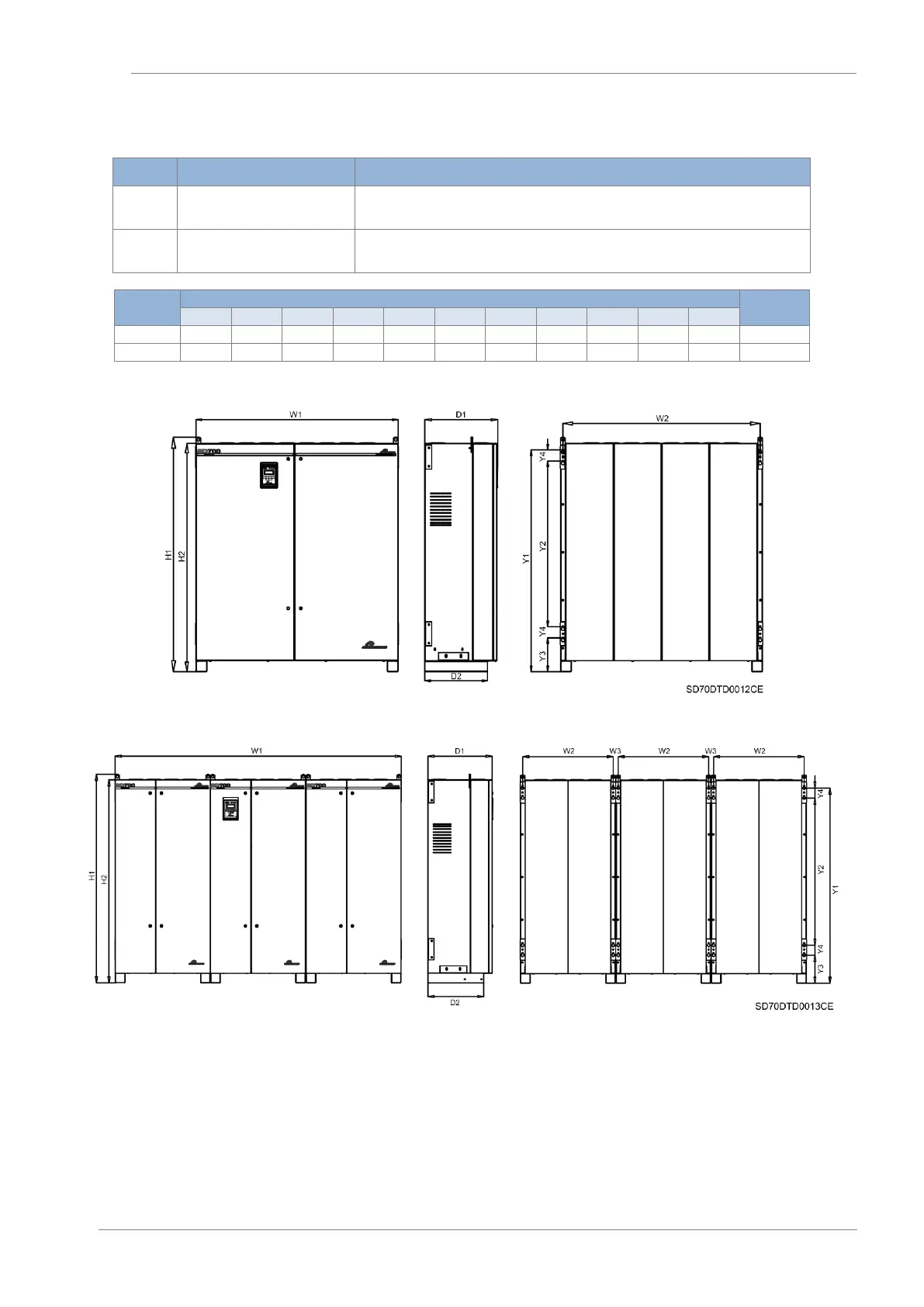

DIMENSIONS
Dimensions of Frames 8 and 9
TALLA
TENSIÓN DE ENTRADA
EQUIPOS
8
380VAC – 480VAC (-10% a +10%)
SD751140 5B06DEF, SD751400 5B06DEF, SD751140 5B12DEF, SD751400 5B12DEF,
SD751140 5B24DEF, SD751400 5B24DEF, SD751140 5B06DEF, SD751400 5B06DEF,
SD751140 5B12DEF, SD751400 5B12DEF, SD751140 5B24DEF, SD751400 5B24DEF
9
380 – 480VAC (-10% a +10%)
SD751550 5B06DEF, SD751800 5B06DEF, SD751950 5B06DEF, SD751550 5B12DEF,
SD751800 5B12DEF, SD751950 5B12DEF, SD751550 5B18DEF, SD751800 5B18DEF,
SD751950 5B18DEF
TALLA
DIMENSIONES (mm)
PESO (kg)
H1
H2
W1
W2
W3
D1
D2
Y1
Y2
Y3
Y4
8
1715
1667
1482
1452
-
529
467
1602
1220
232
75
585
9
1712
1667
2352
747
38
529
460
1619
1209
247.5
81.5
1005
Dimensions of Frame 8
Dimensions of Frame 9
