DIMENSIONS
23
EN
Dimensions of Frames 6 and 7
TALLA
TENSIÓN DE ENTRADA
EQUIPOS
6
380VAC – 480VAC (-10% a +10%)
SD750450 5B06DEF, SD750570 5B06DEF, SD750700 5B06DEF, SD750450 5B12DEF,
SD750570 5B12DEF, SD750700 5B12DEF, SD750450 5B12DEF, SD750570 5B12DEF,
SD750700 5B12DEF
7
380 – 480VAC (-10% a +10%)
SD750800 5B06DEF, SD750900 5B06DEF, SD751050 5B06DEF
TALLA
DIMENSIONES (mm)
PESO
(kg)
H1
H2
W1
W2
W3
D1
D2
D3
D4
Y1
Y2
Y3
Y4
6
1715
1667
780
649
752
529
194
100
467
1607
1220
237
75
335
7
1715
1667
1132
990
1096
529
194
100
467
1607
1220
237
75
479

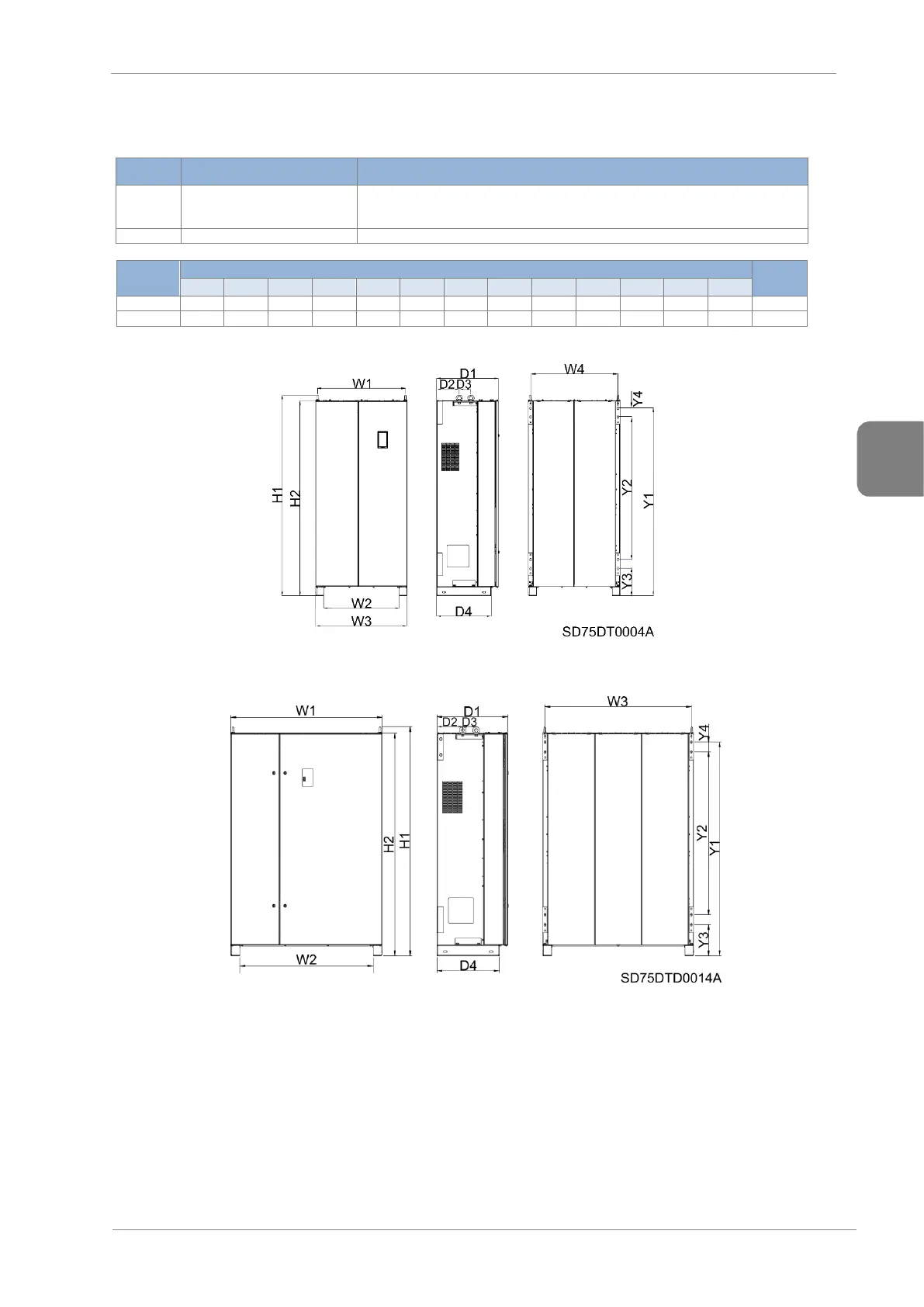

Dimensions of Frame 6
Dimensions of Frame 7
