Duecanali User Guide
AES3-A stream
Control data stream
Port 1 Port 2
Ethernet switch

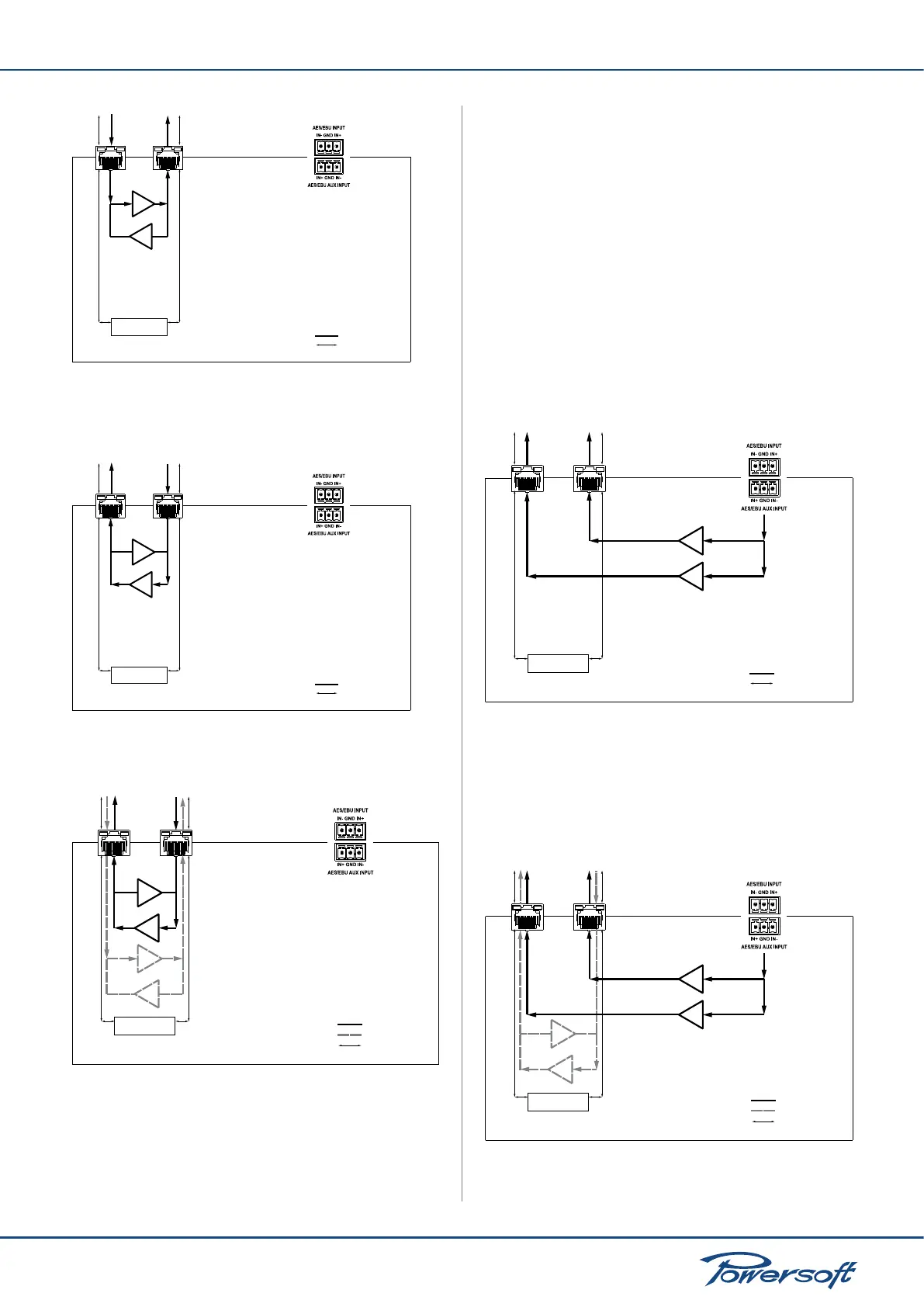

FIGURE 40: This diagram illustrates a simplied internal AES3 and
Ethernet data path. The amplier is set to repeat the AES3-A stream
coming from master port 1 to port 2. Notice that AES3 streams are
monodirectional, while data stream is bidirectional.
AES3-A stream
Control data stream
Port 1 Port 2
Ethernet switch
FIGURE 41: This diagram shows the amplier set to repeat the
AES3-A from port 2 to port 1.
AES3-A stream
AES3-B stream
Control data stream
Port 1 Port 2
Ethernet switch
FIGURE 42: This diagram shows both AES3 data paths in repeater
mode. In this example, the AES3-A streams enters port 2 and is
repeated out of port 1. At the same time, the AES3-B stream is
incoming in port 1 and is repeated outwardly via port 2. All possible
permutations are not displayed.
KEASOP forward mode
When the amplier is set in forward mode, the AES3 signal
coming into the amplier from the rear panel Phoenix connector
is forwarded to both of the master RJ45 ports. There are three
ways the AES can be forwarded:
▶
Forward to AES3-A:
the amplier’s rear panel AES input via the Phoenix connector
will be routed to the AES stream A on both ports 1 and 2. If
there is an AES3-B stream incoming from either port (1 or 2),
this will be repeated on the other port. For example, the gure
below shows the “Forward to AES3-A” function where the AES3
stream coming from the rear Phoenix connector is forwarded to
the AES3-A stream and no AES3-B stream is present.
AES3-A stream
Control data stream
Port 1 Port 2
Ethernet switch
FIGURE 43: Forward to AES3-A signal path. No AES3-B stream
present
This gure, on the other hand, illustrates the signal path in
“Forward to AES3-A” mode when an AES3-B stream is present;
the AES3-B stream is, in this example, incoming through master
port 1. The AES3-A stream, if present will be repeated from/to
RJ45 ports 1 and 2.
AES3-A stream
AES3-B stream
Control data stream
Port 1 Port 2
Ethernet switch
FIGURE 44: Forward to AES3-A signal path and simultaneous AES3-B
stream in repeater mode.
