User interfaces | 23
f output 1+2+3 as the left three-way loudspeaker
f output 4+5+6 as the right three-way loudspeaker
f output 7+8 as the subwoofer
Each way is driven independently: the crossover allows
to feed the transducers with the right signal bandwidth, lim-
iting as well as damping control can be congured for each
output signal (transducer), and nally you can create the
overall equalization of each single multi-way loudspeaker.
15 : 5.2. Routing path and levels
Proceeding backward to the input, the matrix allows to
manage signal routing and mixing suiting the actual loud-
speakers layout. In the example of FIGURE 43, speakers A,
B and C becomes the output channels of the matrix, where
you can properly mix and route the input signals.
15 : 5.3. Signal source and processing
The input selection stages add further degrees of
freedom in setting system performance with regards to the
venue and conguring the backup policy for signal redun-
dancy and safe operating.

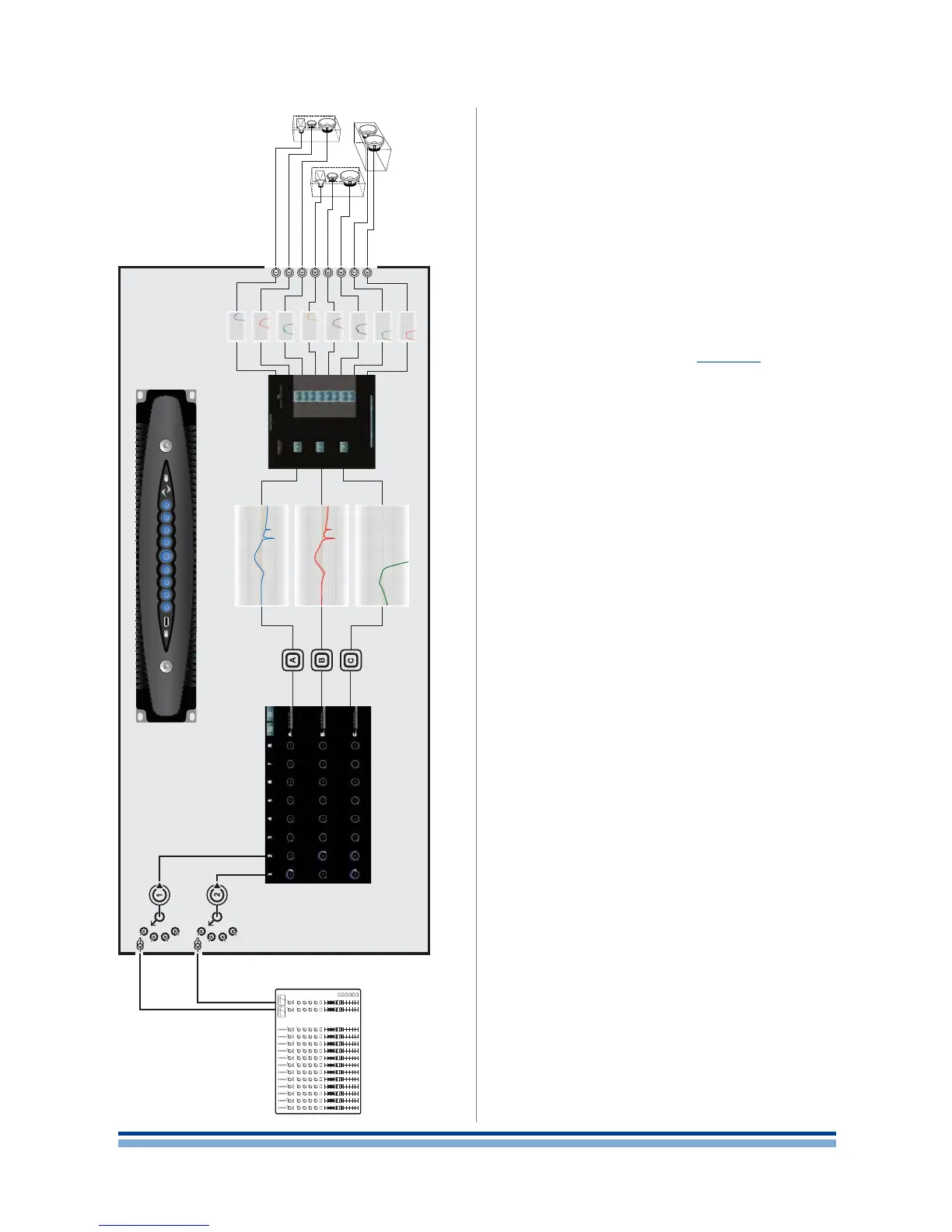

FIGURE 43: Example: X8 driving three multy-way loudspeakers.
