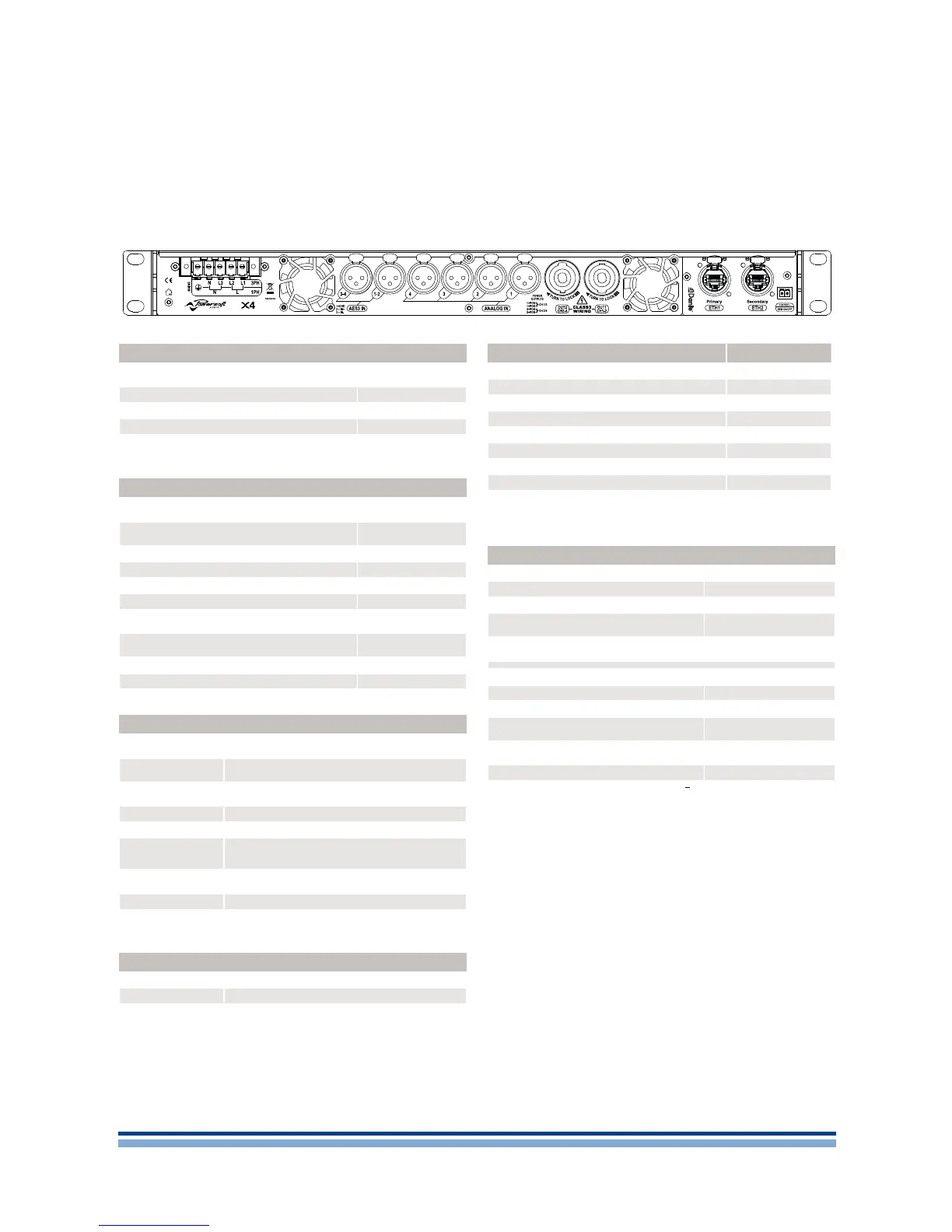

26 | X Series | User guide
Specifications
18
Channel Handling
Number of output channels
4 mono,
bridgeable per ch. pair
Number of input channels:
Analog 4 (4x XLR)
AES3 4 (2x XLR)
Dante™* 16 (2x RJ45)
* DANTE version only
Audio
Output Noise
A-Weighted @ 8 Ω - Analog to Analog / Digital to Analog
< -70.0 dBV
Dynamic Range
A-Weighted @ 8 Ω - Analog to Analog / Digital to Analog
114,3 dB
Damping Factor @ 8 Ω, 20Hz - 500Hz > 5000
Slew Rate (input lter bypassed) > 50 V/µs
Frequency Response ( -3 dB , 1 W @ 8 Ω) 5 Hz - 30 kHz
Crosstalk (1 kHz) -70 dB
THD+N (from 0.1 W to Full Power)
< 0.5%
(typical < 0.01%)
DIM (from 0.1 W to Full Power)
< 0.5%
(typical < 0.01%)
Input Impedance 20 kΩ Balanced
Input Acceptance +25 dBu
DSP
AD converters
24 Bit Tandem™ @ 96 kHz
129 dB Dynamic Range - 0.00056 % THD+N
DA converters
24 Bit Tandem™ @ 192 kHz
121 dB Dynamic Range - 0.00084 % THD+N
Sample rate converter
24 Bit @ 44.1 kHz to 192 kHz
140 dB Dynamic Range - 0.0001 % THD+N
Internal precision 40 bit oating point
Delay 4 s + 200 ms for time alignment
Equalizer
Raised-cosine, custom FIR, parametric IIR:
peaking, hi/lo-shelving, all-pass,
band-pass, band-stop, hi/lo-pass
Crossover
linear phase (FIR), hybrid (FIR-IIR), Butterworth,
Linkwitz-Riley, Bessel: 6 dB/oct to 48 dB/oct (IIR)
Limiters TruePower™, RMS voltage, RMS current, Peak limiter
Damping control
Active DampingControl™ and
LiveImpedance™ measurement
Construction
Dimensions 483 mm x 88 mm x 495 mm (19.0 in x 3.5 in x 19.5 in)
Weight 15 kg (33.0 lb)
Output Stage
Maximum output power per channel @ 8 Ω 1600 W
Maximum output power per channel @ 4 Ω 3000 W
Maximum output power per channel @ 2.7 Ω 4000 W
Maximum output power per channel @ 2 Ω 5200 W
Maximum output power @ 8 Ω Bridged 6000 W
Maximum output power @ 4 Ω Bridged 10400 W
Peak total output, all channels driven 20000 W
Maximum unclipped output voltage 175 V
peak
Maximum output current 130 A
peak
The power gure is calculated by driving and loading symmetrically all the
channels: uneven loads allow to achieve highest performance.
AC Mains Power
Single Phase
Nominal Voltage Operating Range 100 - 240 V
rms
@ 50/60Hz
Suggested circuit breaker C16
Power Factor
1/8 Maximum Output Power @ 4 Ω
> 0.9
Current Draw
1/8 Maximum Output Power @ 4 Ω
18 A
rms
@100V
9 A
rms
@240V
Three Phase
Nominal Voltage Operating Range 200 - 415 V
rms
Suggested circuit breaker (per phase) C10
Power Factor
1/8 Maximum Output Power @ 4 Ω
> 0.9
Current Drawn from Each Single Phase
1/8 Maximum Output Power @ 4 Ω
6 A
rms
@ V
L
=200V
3 A
rms
@ V
L
=415V
Idle Consumption (all AC MAINS cases) < 100 W
V
P
= Single phase voltage (eg. 120V); V
L
= V
P
√3 = Nominal line voltage (eg. 200V)
X4
