NOTE Pedestals are required for one and two cabinet installations. EBM brackets are
required for all tower EBM installations.
Air Vents

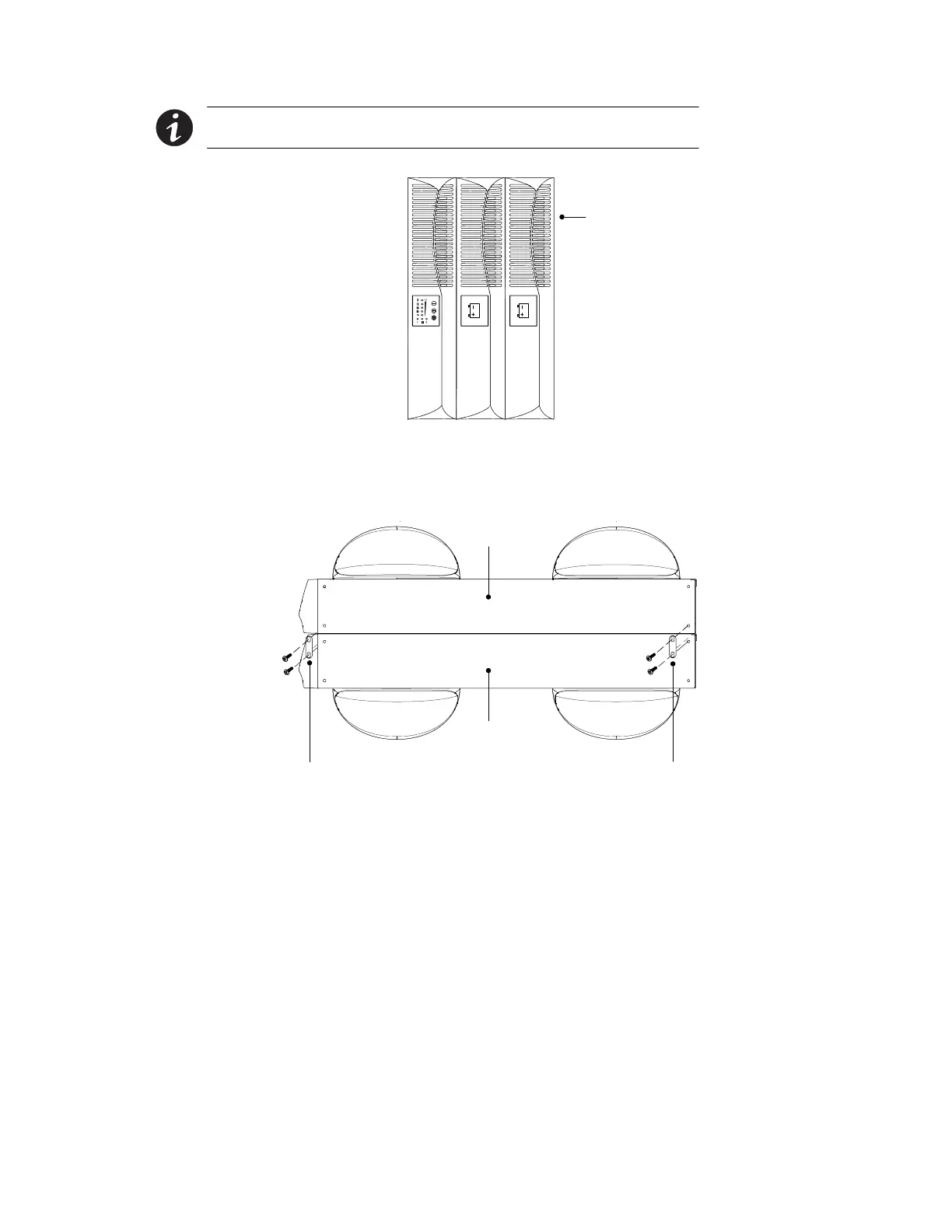

Figure 9. Tower Setup with Three Cabinets
9. Align each EBM bracket with the adjacent corner screw holes
and secure with the supplied screws (see Figure 10).
EBM Bracket
EBM
UPS
EBM Bracket
Figure 10. Installing the EBM Brackets (Top View with Pedestals)
10. If installing additional EBMs, repeat Step 9 for each cabinet and
continue to the following section, “EBM Installation.”
