28000 System Installation
Page 32
28000 Signal Conditioning Installation Instructions Precision Filters, Inc.
Rev. B
Formed
End
Ball B aring
Wheels
e
Screws
28016
Frame
Chassis
Mounting
Section

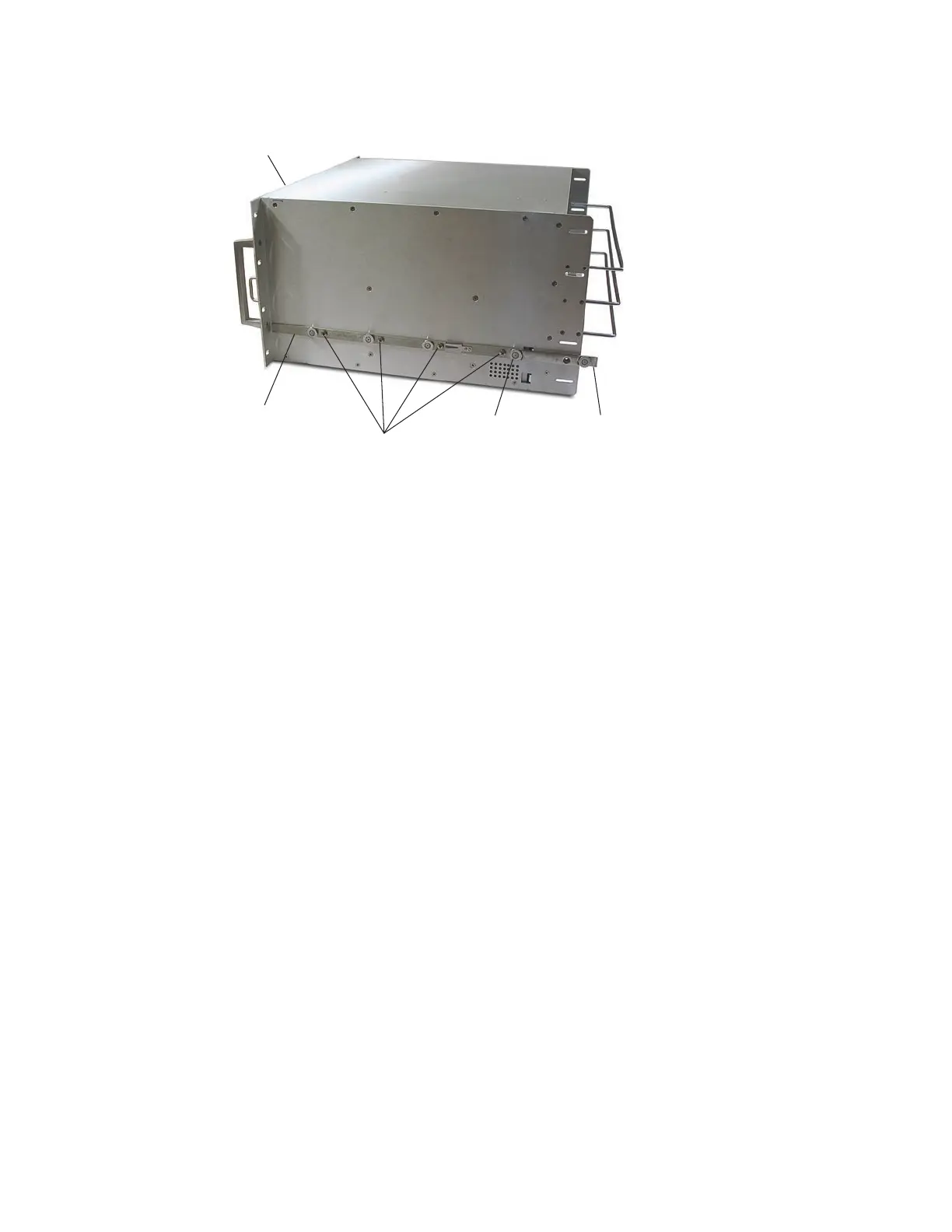

Figure 22 Chassis Section Mounted on 28016 Mainframe
Slide Frame with Chassis Mounting Slide into Cabinet
WARNING
The 28016 frame with power supply weighs more than 60 lbs. Two people
are required to lift and support the frame.
Step 1
Align the ball bearing wheels on both chassis mounting sections with the two mid-
support sections on the cabinet rails and carefully slide the frame into the cabinet.
Step 2
If the frame does not slide in easily, make sure all ball bearing wheels are engaging
with the mid-support section.
