PRECISION FILTERS Precision 28000 - Changing a Fuse: 28000 C-ACPS-X

Precision Filters, Inc. 28000 Signal Conditioning System Installation Instructions
Rev. B
Maintenance and Troubleshooting
Page 77
Changing a Fuse: 28000C-ACPS-X
CAUTION
Switch off the 28008 system power and remove the power cord from the
AC power connector before changing fuse.
Fuses are located in the fuse drawer in the power entry module on the rear panel.
See Figure 54.
Step 1
Switch the power switch to the Off position.
Step 2 Remove the AC power cord from the AC power connector.
Step 3 Pull the fuse holder out. Pull out the fuse drawer by pressing on the top and bottom
tabs of the fuse holder.
Step 4
Replace the fuse with the correct fuse. See Table 22.
Note:
Single-fuse congurations have a metal spring next to the existing fuse. Do not
remove this spring.
Step 5
Reinstall the fuse holder in the same position as it was before removal.
Tab
Fuse
Drawer
Tab

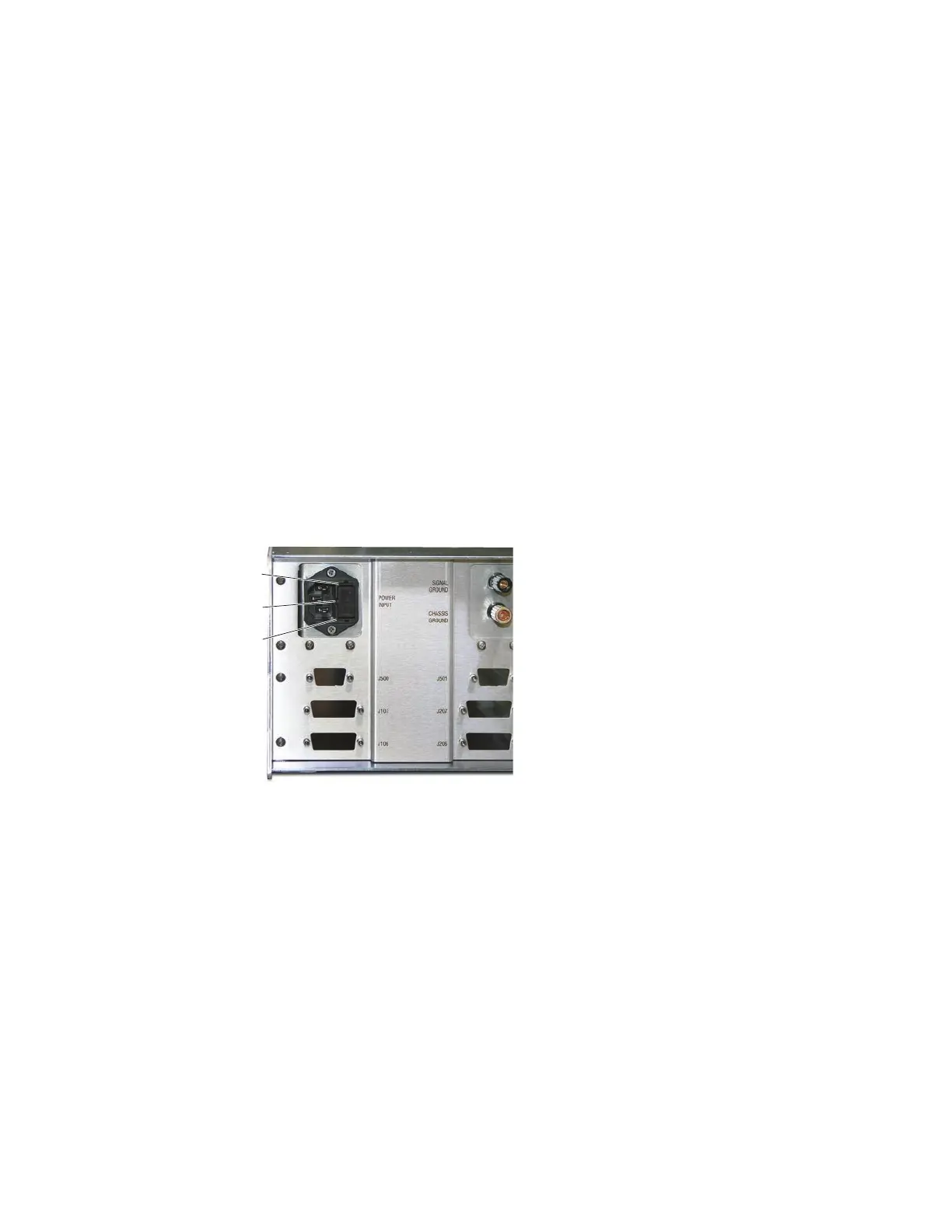

Figure 54 28008 Rear Panel, Fuse Door Location
