28000 System Installation
Page 52
28000 Signal Conditioning Installation Instructions Precision Filters, Inc.
Rev. B
28016-M5 16-Slot Mainframes
The 28016-M5 mainframe has 16 integrated 26-pin high-density D-shell output connectors,
one per card slot, supporting outputs signals for 2-, 4-, 8-, and 16-channel cards. The 16 con-
nectors are located on the rear horizontal center panel of the mainframe. The connectors, from
right to left, are J300 through J315. See Figure 38.
28016-M5 Output
Connectors J300-J315
J500 J115 J114 J113 J112 J111 J110 J109 J108 J107 J106 J105 J104 J103 J102 J101 J100
J501 J215 J214 J213 J212 J211 J210 J209 J208 J207 J206 J205 J204 J203 J202 J201 J200
J502
J315
J314
J313
J312
J311
J310
J309
J308
J307
J306
J304
J304
J303
J302
J301
J300
1
9
1
1
1019
1826 9

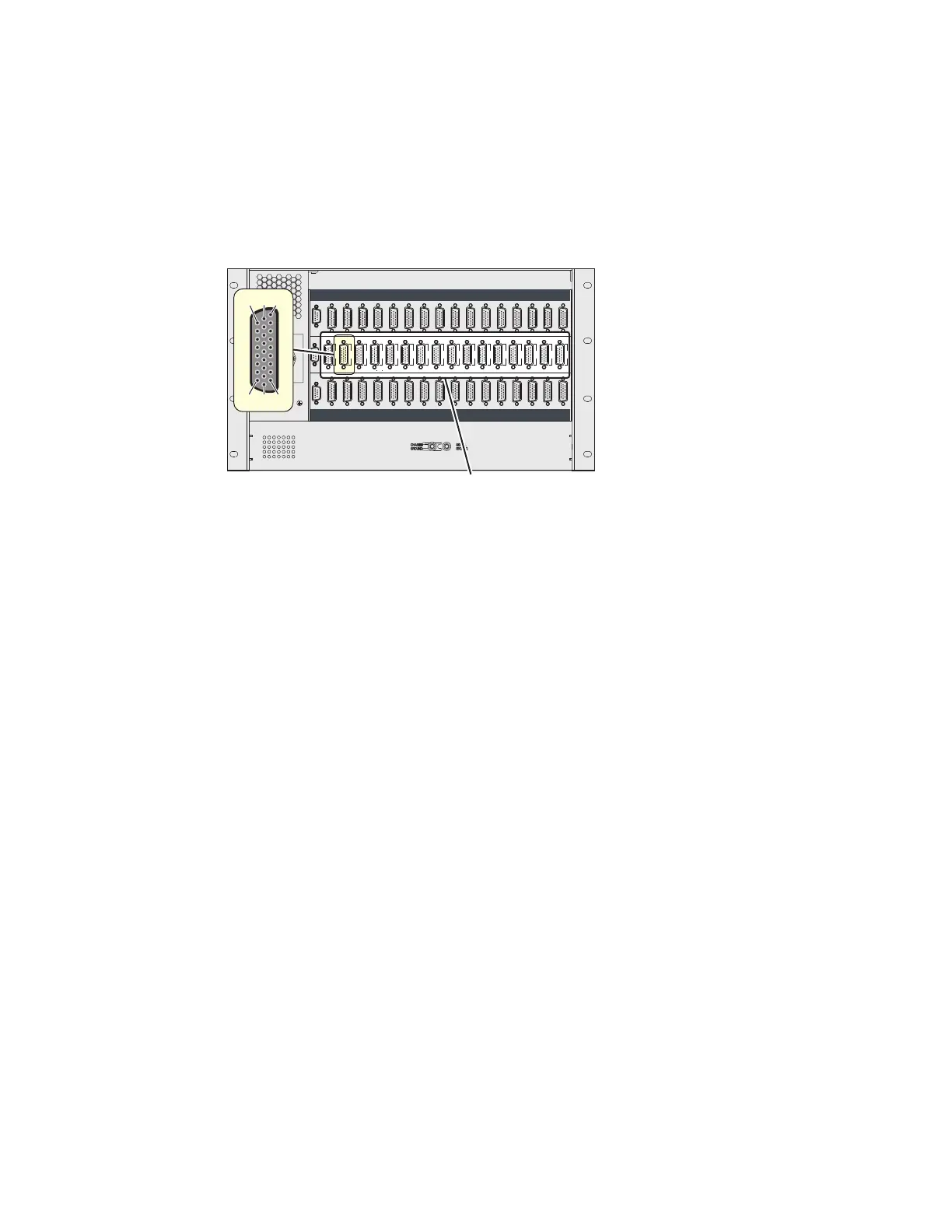

Figure 38 28016-M5 Output Connector Pin Assignments
Refer to the following tables for the pin assignments of 26-pin high-density output connectors:
• Four-channel cards: See Table 12.
• Eight-channel cards: See Table 13.
• Sixteen-channel cards: See Table 14.
