Precision Filters, Inc. 28000 Signal Conditioning System Installation Instructions
Rev. B
28000 System Installation
Page 59
2.10.4 Screw Terminal Adapters
Screw terminals adapters provide a convenient way to wire input and output signals to the
cards. Adapters accept 28- through 16-gauge wire. Figure 40 shows an example.

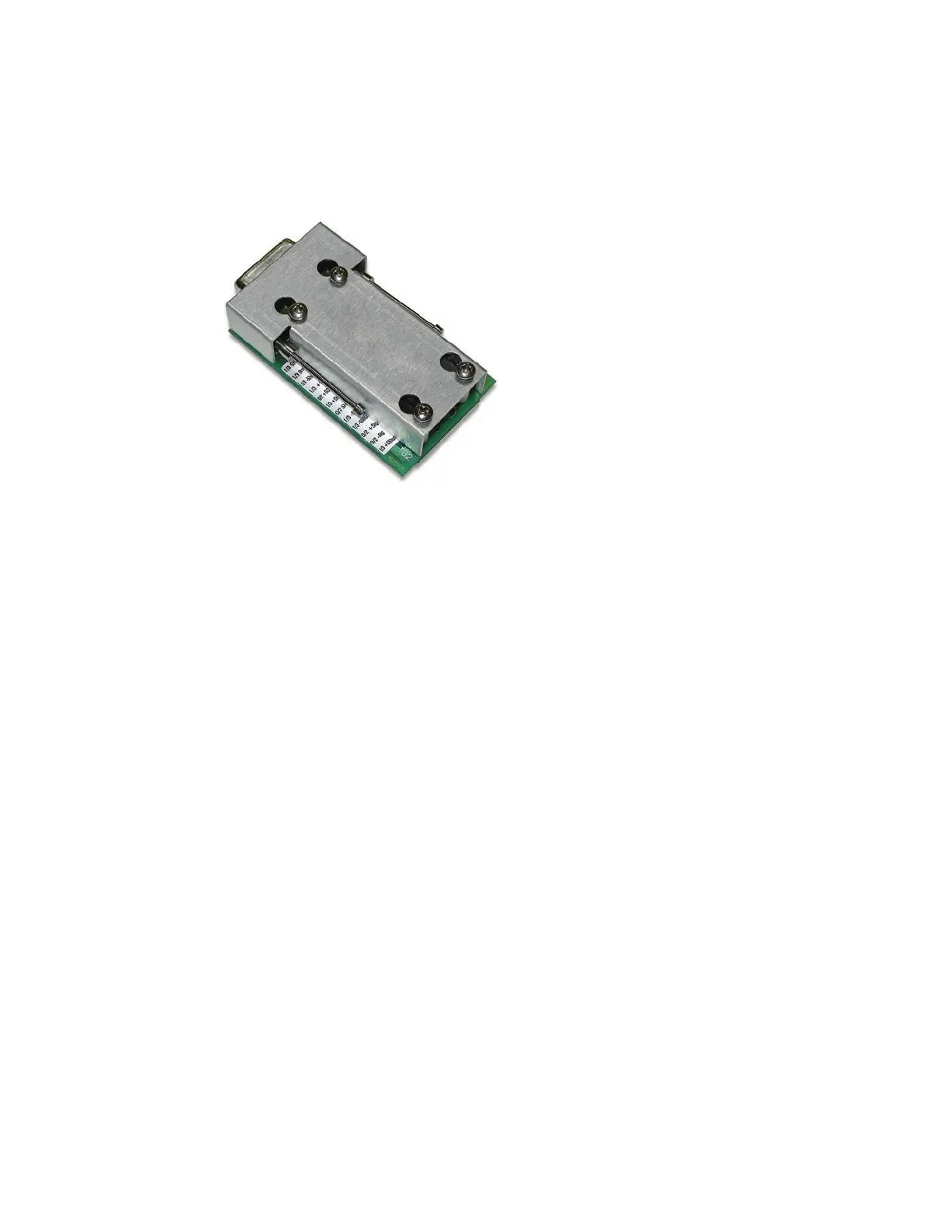

Figure 40 Example of a High-Density Screw Terminal Adapter
Precision Filters provides two high-density 26-pin D to screw terminal adapter:
• ADAPTER-I-SCTA High-density 26-pin D to screw terminal adapter for high- density
26-pin D connector with sockets
• ADAPTER-O-SCTA High-density 26-pin D to screw terminal adapter for high- density
26-pin D connector with pins
