PRECISION FILTERS Precision 28000 - 28016-M3 16-Slot Mainframes

Precision Filters, Inc. 28000 Signal Conditioning System Installation Instructions
Rev. B
28000 System Installation
Page 51
28016-M3 16-Slot Mainframes
The 28016-M3 mainframe has four integrated 50-pin D-shell output connectors, J300 through
J303, supporting the output signals for 2- and 4-channel cards. Signal conditioning cards with
more than four channels per card may furnish inputs and outputs via the rear panel cutouts or,
in the case of some 8- and 16-channel cards, via the front panel for the output.
The four 50-pin connectors are located on the rear horizontal center panel of the mainframe.
The connectors, from right to left, are J300 through J303. See Figure 37.
28016-M3 Output
Connectors J300-J303
J500 J115 J114 J113 J112 J111 J110 J109 J108 J107 J106 J105 J104 J103 J102 J101 J100
J501 J215 J214 J213 J212 J211 J210 J209 J208 J207 J206 J205 J204 J203 J202 J201 J200
J502
1
J303 J302 J301 J300
1
18
34
17
33
50

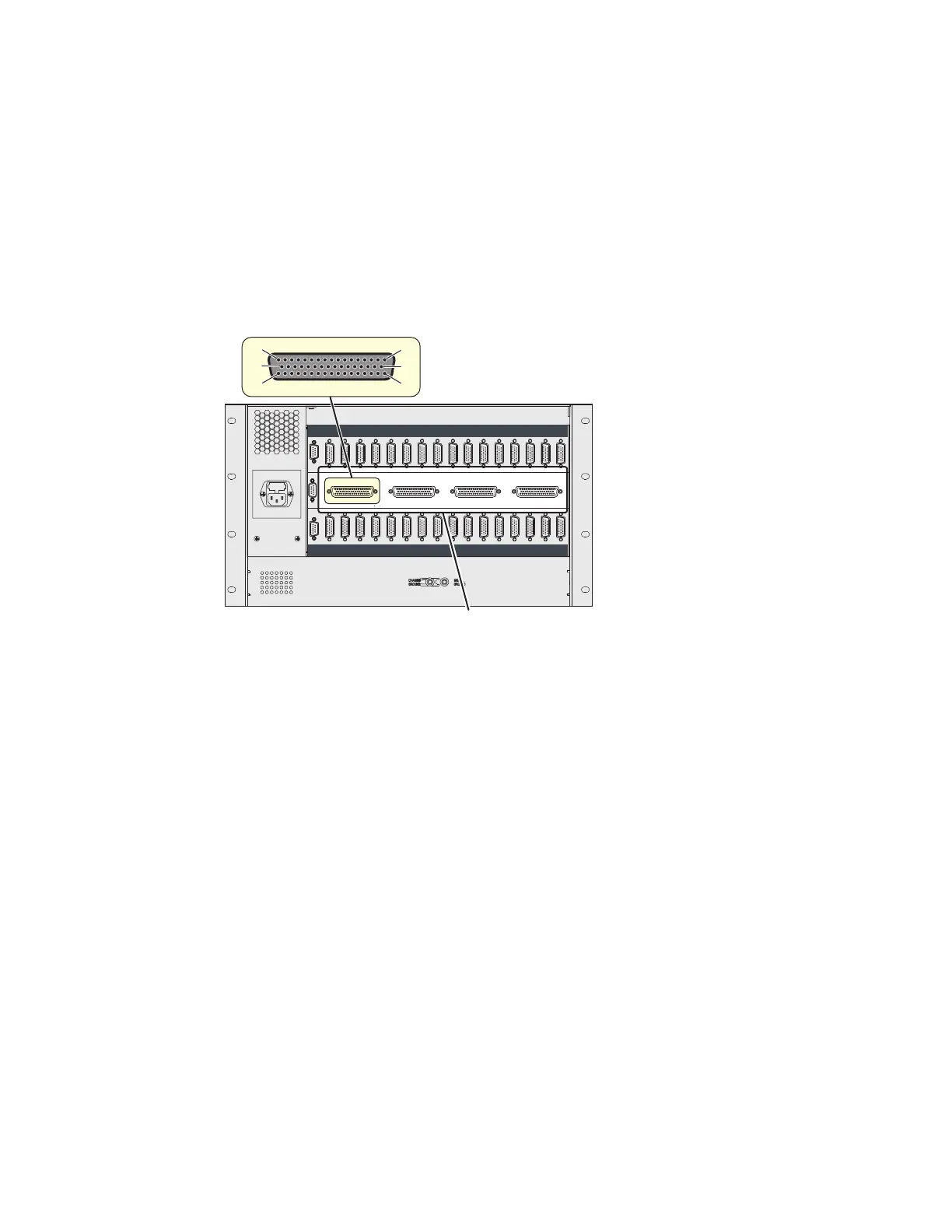

Figure 37 28016-M3 Output Connector Pin Assignments
Table 10 and Table 11 identify specic connector and pin assignments for the 64-channel outo-
puts available at connectors J300 through J303.
