Corporate Network Connection (Not Recommended)
The typical corporate network connection, where systems and test subsystem equipment are
connected directly to the corporate Ethernet network, is not recommended. Other networked
equipment, such as DAS, servers, computers, and phone systems can cause high data trafc
across the Ethernet network—resulting in the possibility of unexpected interruption of an
ongoing test. See Figure 31.
PC Host
Computer
Corporate Ethernet Network
Straight Through
Ethernet Cables
Corporate Network Connection
(Not Recommended)
Function
Generator
Digital
Multimeter
Computers
Servers
Examples
of High
Ethernet Traffic
DAS
Phone
Systems
28000
System
Additional
28000
System

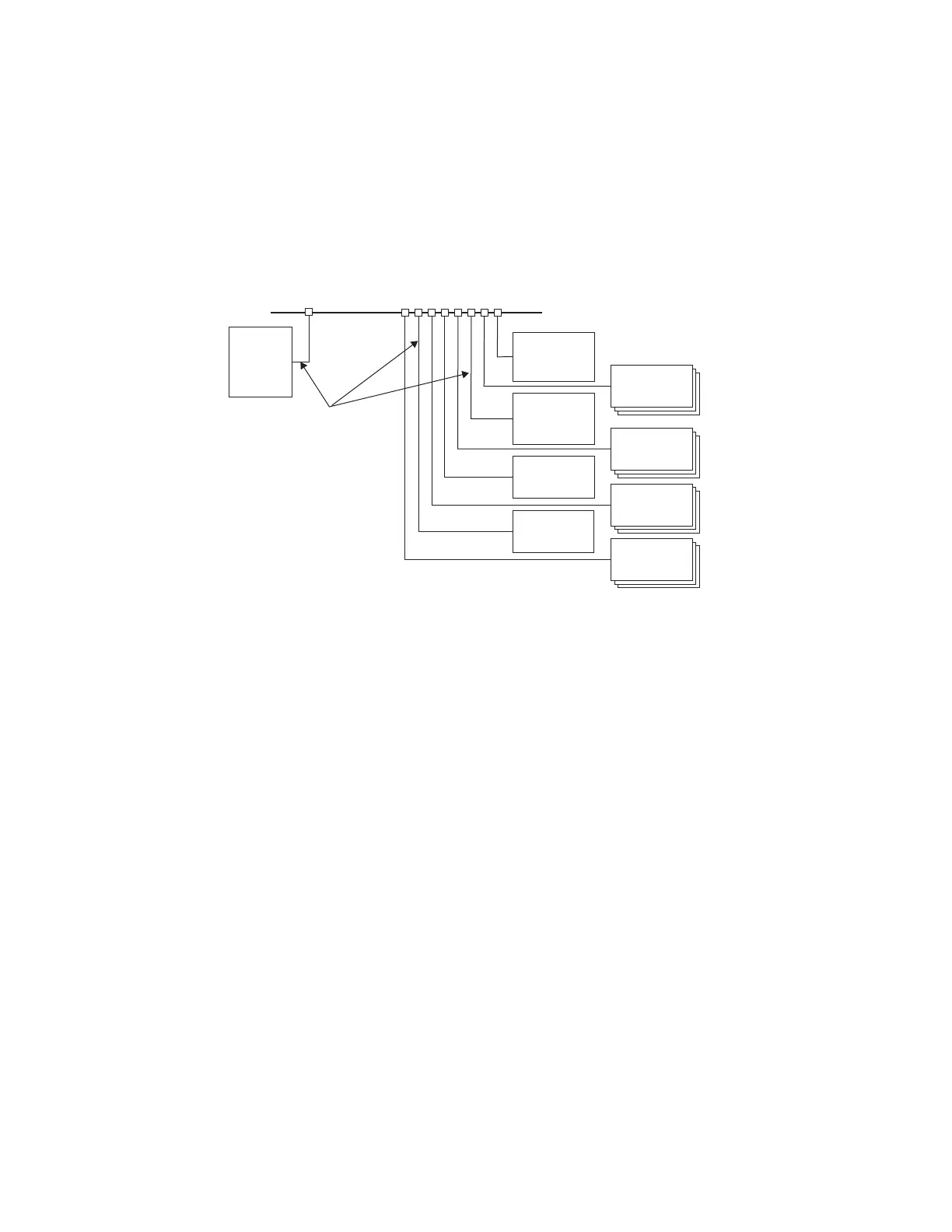

Figure 31 Typical Corporate Network Connection Diagram (Not Recommended)
