Precision Filters, Inc. 28000 Signal Conditioning System Installation Instructions
Rev. B
28000 System Installation
Page 35
Rear Mounting
Bracket
Rear Mounting
Plate
Screws and Washers
from Rear Bumper
Rear Mounting
Plate
Screws and Washers
from Rear Bumper
Rear Mounting
Bracket
6-32 x 1/2 Phillip Pan Head Screws
#6 Internal Tooth Lock Washers
#6 Flat Washers
28002 Chassis

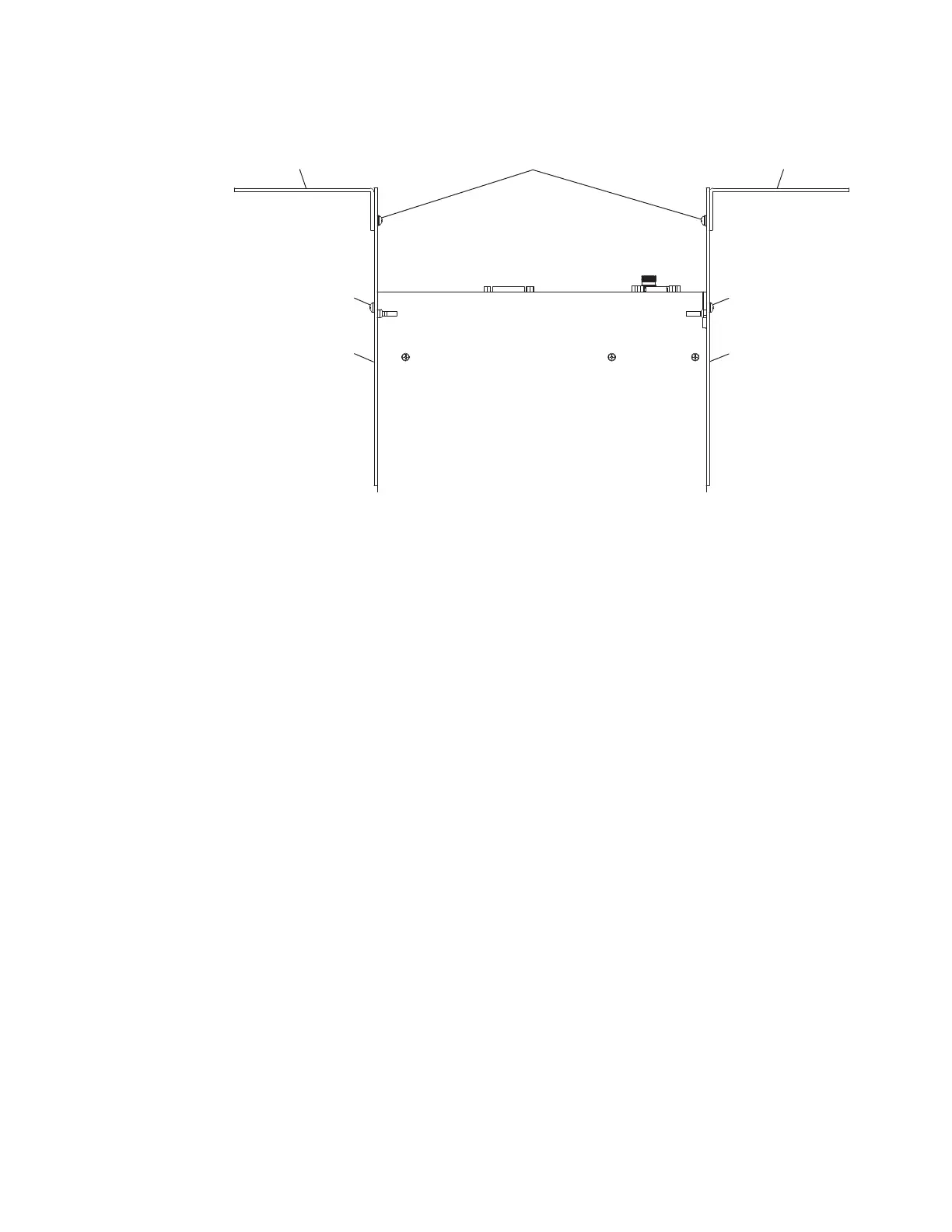

Figure 26 Rear Mounting Plates and Rear Mounting Brackets attached to a 28002 Chassis
