C842, C842i, C846, C846i Upright and Recumbent Cycle
Page 49

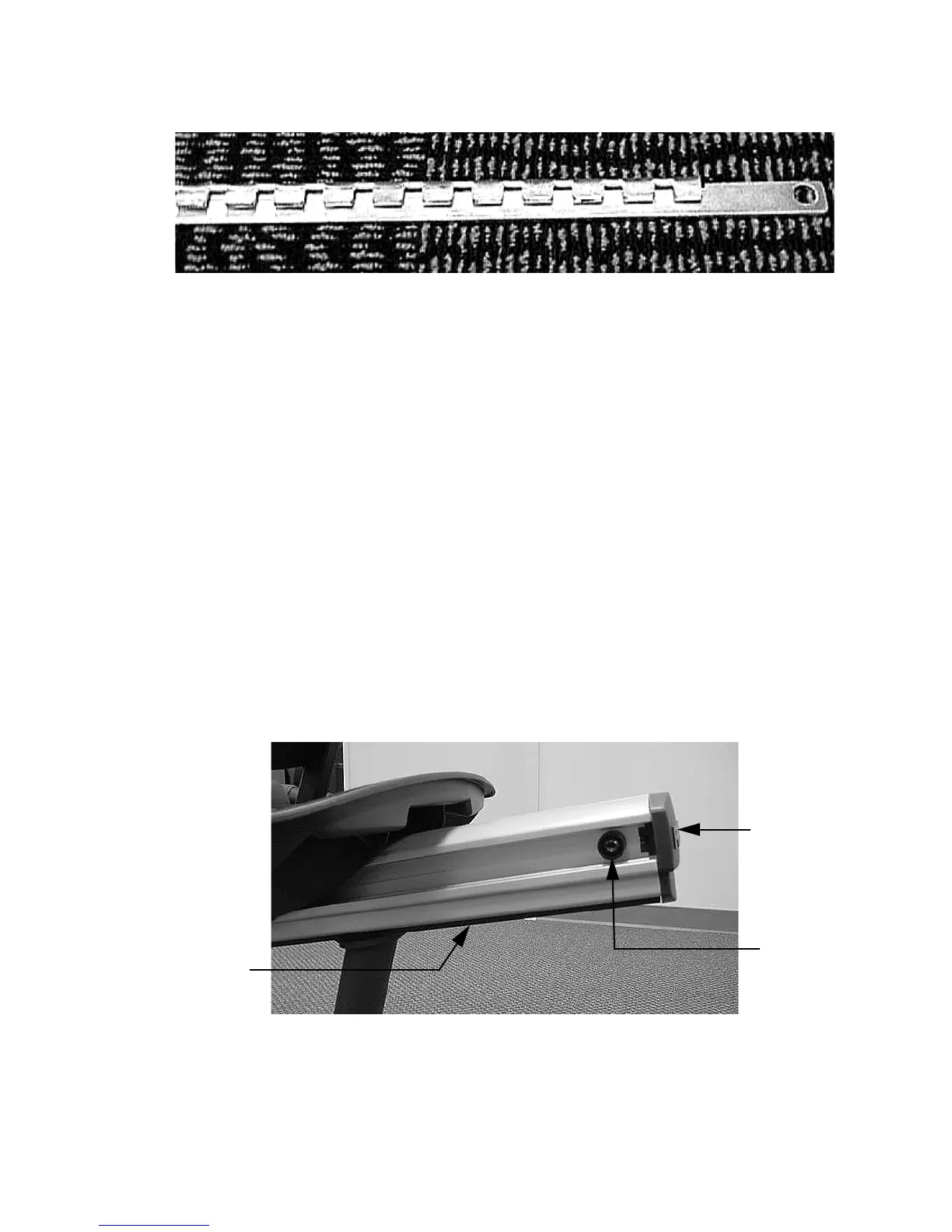

Diagram 7.7 - Seat Guide
11. Loosen the bolts that retains the front end of each of the seat guides to the cycle frame (See
Diagram 7.7). Raise the rear of the seat guides and securely tighten the front bolts. The
guide must be up as far as possible or the seat will not slide freely.
12. Slide the seat onto the cycle’s frame. Slide the end cap onto the end of the frame. Slide both
seat stop/bolts through end cap and the rear of the seat guide and thread them into the
cycle’s frame. Securely tighten the seat guide bolts.
13. Lift the seat adjustment lever and ensure that the seat freely travels throughout it’s full range
and securely locks into position when the seat adjustment lever is released.
14. If the seat movement, in step 13, is too tight or there is excessive side to side wobble, adjust
the seat per Procedure 5.3.
15. There is a hand held heart rate cable the connects the seat carriage to the seat rail. Care
must be taken when removing the seat carriage to avoid damaging the hand held heart rate
cable.
16. Move the seat to its most forward position. Remove the seat accessory tray by carefully
spreading the tabs and sliding the tray off of the acorn nuts.
Diagram 7.8 - Seat Rail
17. Loosen but do not remove the two screws retaining the end cap. Remove the end cap.
Remove both seat stops, one each side.
18. Locate the plate that covers the hand held heart rate cable, on the seat rail near the rear of
End Cap
Seat Stop
Seat Rail
To Next Page
