Precor EFX 835 Service Manual

EFX 885, 835, 825
Service Manual 20039-166
Page 107
©2011 Precor Incorporated, Unauthorized Reproduction and Distribution Prohibited by Law
10. Disconnect the Metric cable (JK6), Machine Controls cable (JK12), Option Cap cable (JK5, if applicable), and
Keypad Metric cable (JK1) from the Upper PCA board. See Diagram 6.5.8.
11. Remove the four screws that fasten the Upper PCA board to the console and remove the Upper PCA.

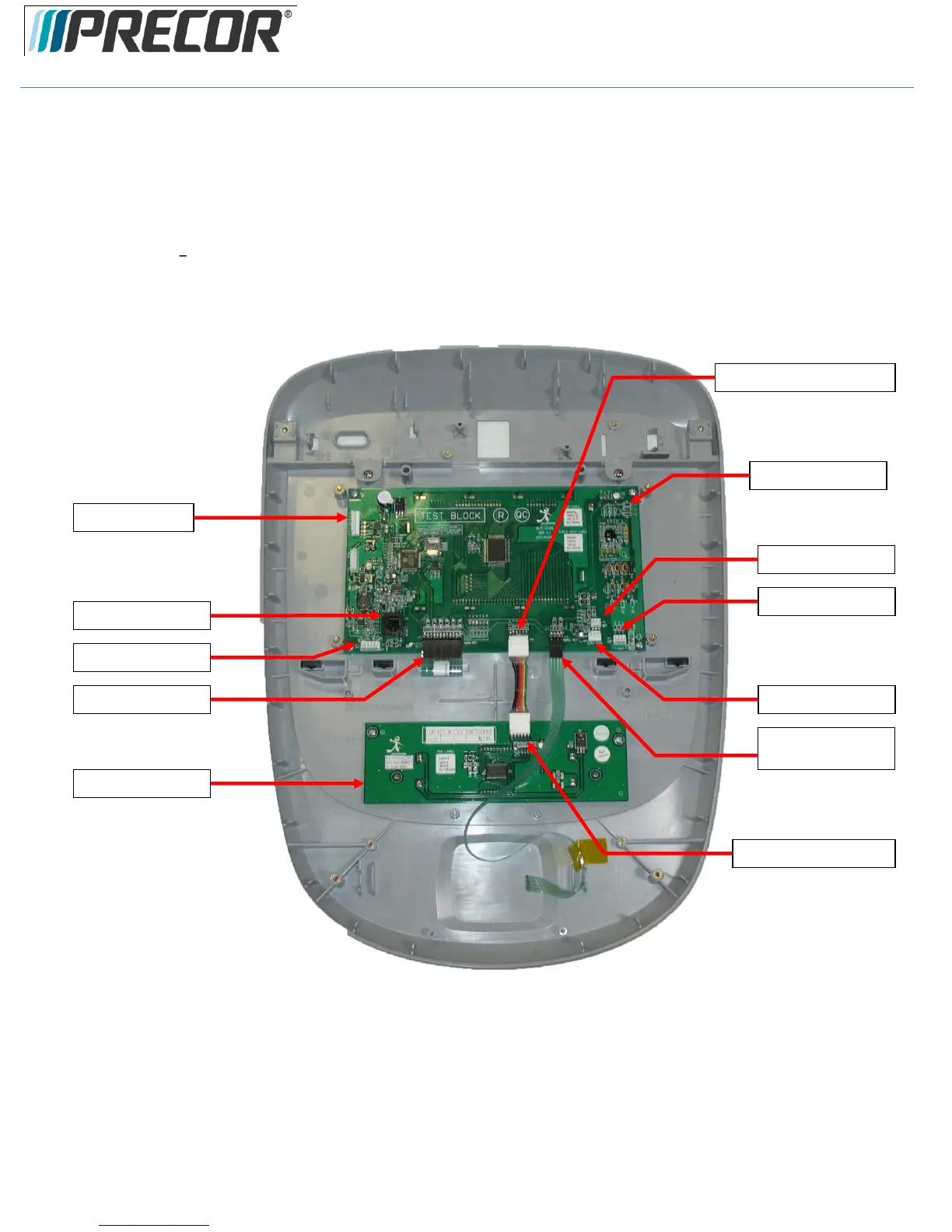

Diagram 6.5.8 P20 Upper PCA & Metric Board
Upper PCA Board
Stop Key (JK14)
Hand Held HR (JK7)
Option Cap (JK5)
Auto Stop (JK11)
Wireless HR (JK8)
Data Port (JK3)
Metric Board
Keypad Metric (JK1)
Metric Connector (JK6)
Machine Controls
Connector (JK2)
Metric Connector
