EFX 885, 835, 825
Service Manual 20039-166
Page 154
©2011 Precor Incorporated, Unauthorized Reproduction and Distribution Prohibited by Law
Procedure 10.11 Replacing the Stairarm Wheel
Procedure
WARNING
Before continuing with this procedure, review the Warning and Caution statements listed in Section One, Things You
Should Know.
1. Remove the lift cover per Procedure 10.2.
2. Grasp the center ramp cover and lift it upwards to unsnap it from the ramp. Remove the center ramp cover
from the EFX and set it aside.
3. Remove the two screws that fasten the ramp end cap to the ramp. Remove the ramp end cap. Refer to
Diagram 10.11.1.

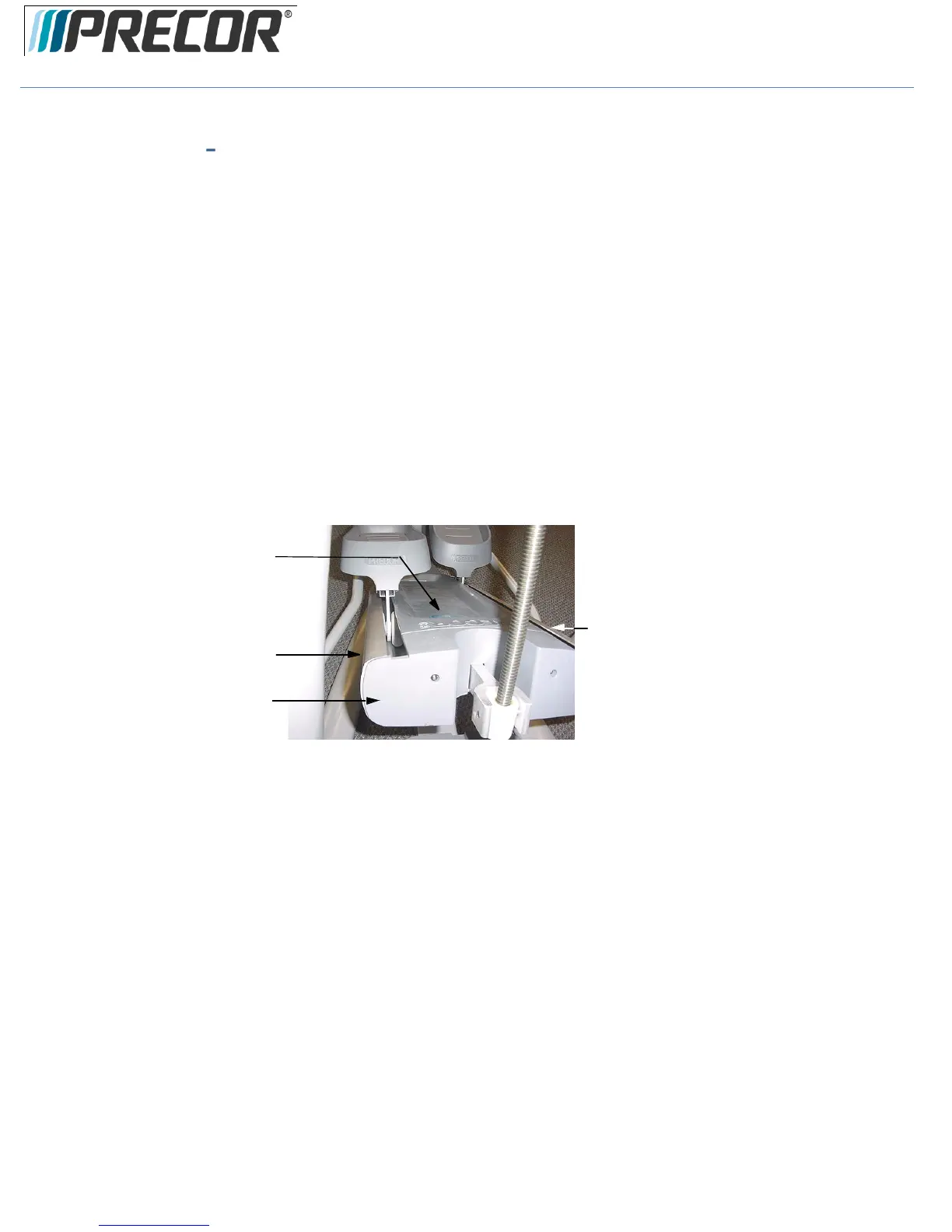

Diagram 10.11.1 -Ramp Assembly
4. The left side and/or right side ramp trim will need to be removed in order to access the stairarm wheels.
5. Loosen, but do not remove, the five screws that fasten ramp trim(s) required to access the wheel(s) being
replaced. Slide the ramp trim(s) off the front of the ramp.
6. Remove the screw retaining the wheel being replaced. Refer to Diagram 10.11.2. Slide the wheel off the
stairarm axle.
Left Side
Ramp Trim
Right Side
Ramp Trim
End Cap
Ramp
Center Ramp
Cover
To Next Page
