Precor EFX 835 Service Manual

EFX 885, 835, 825
Service Manual 20039-166
Page 166
©2011 Precor Incorporated, Unauthorized Reproduction and Distribution Prohibited by Law
Procedure 10.19 Replacing an External Power Input Jack
1. Remove the left and right side rear covers sections per Procedure 10.1.
2. Disconnect the J4 connector from the lower PCA.

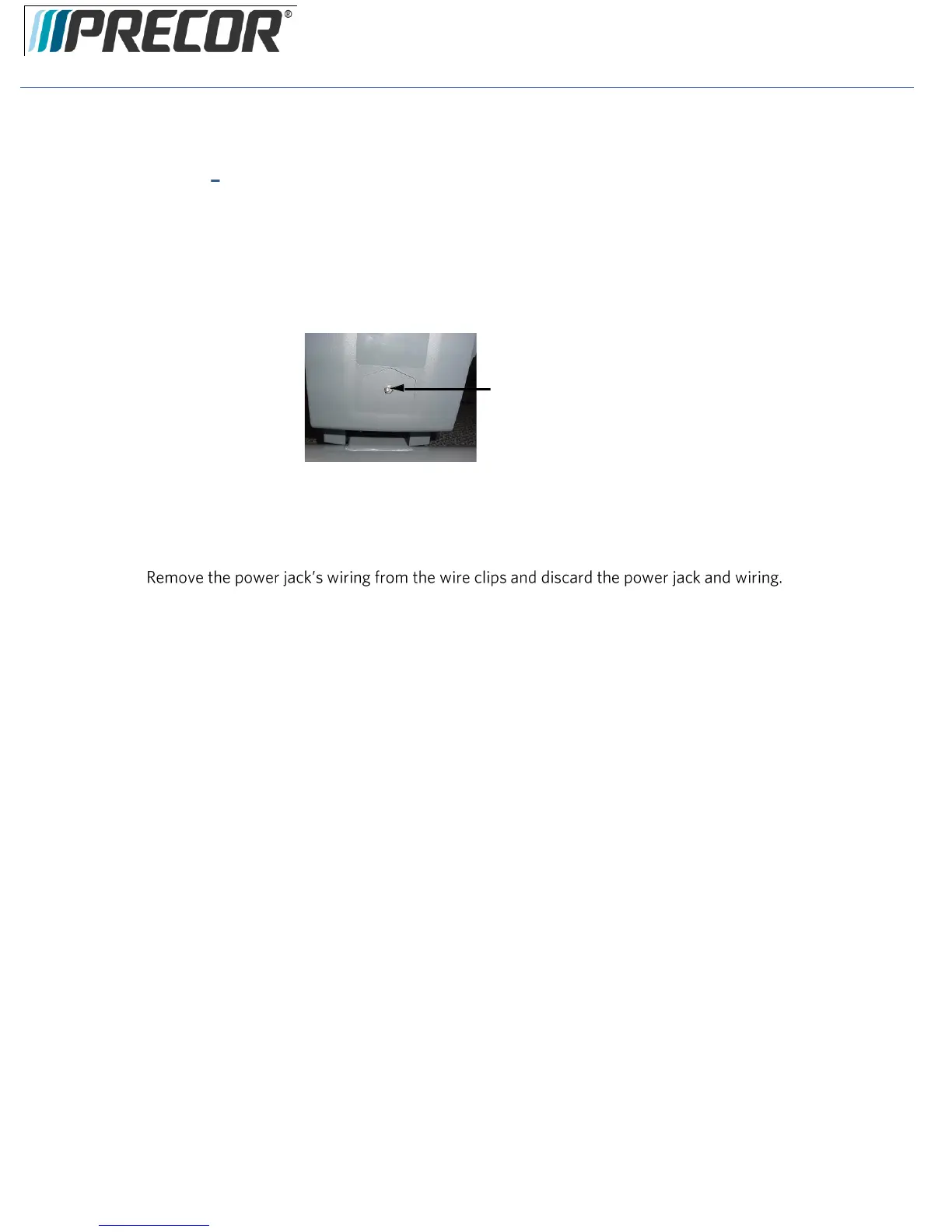

Diagram 10.19.1 - Power Input Jack Mounting
3. Remove the nut that fastens the external power input jack to the rear cover support. Refer to Diagram
10.19.1.
4.
5. Fasten the replacement external power input jack into the cover with the mounting nut provided with the
power input jack.
6. Route the power input jack wiring through the wire clips to the lower PCA. Connect the plug on the power
input jack wiring to the J4 connector on the lower PCA.
7. Replace the left and right side rear covers.
8. Check the operation of the EFX as described in Section Seven.
External Power
Supply
Input jack
