Procedure 10.21 Replacing a Handlebar Pivot
WARNING
Before continuing with this procedure, review the Warning and Caution statements listed in Section One, Things You
Should Know.
1. Remove the handlebar per Procedure 10.15.
2. Remove the cap from the upper end of the handlebar pivot. Remove the bearing shaft from the upper end of
the upper pivot arm. The bearing shaft will be very tight, a long handled socket wrench with a 7/16 hex key
will be necessary for removal. See Diagram 10.22.1.

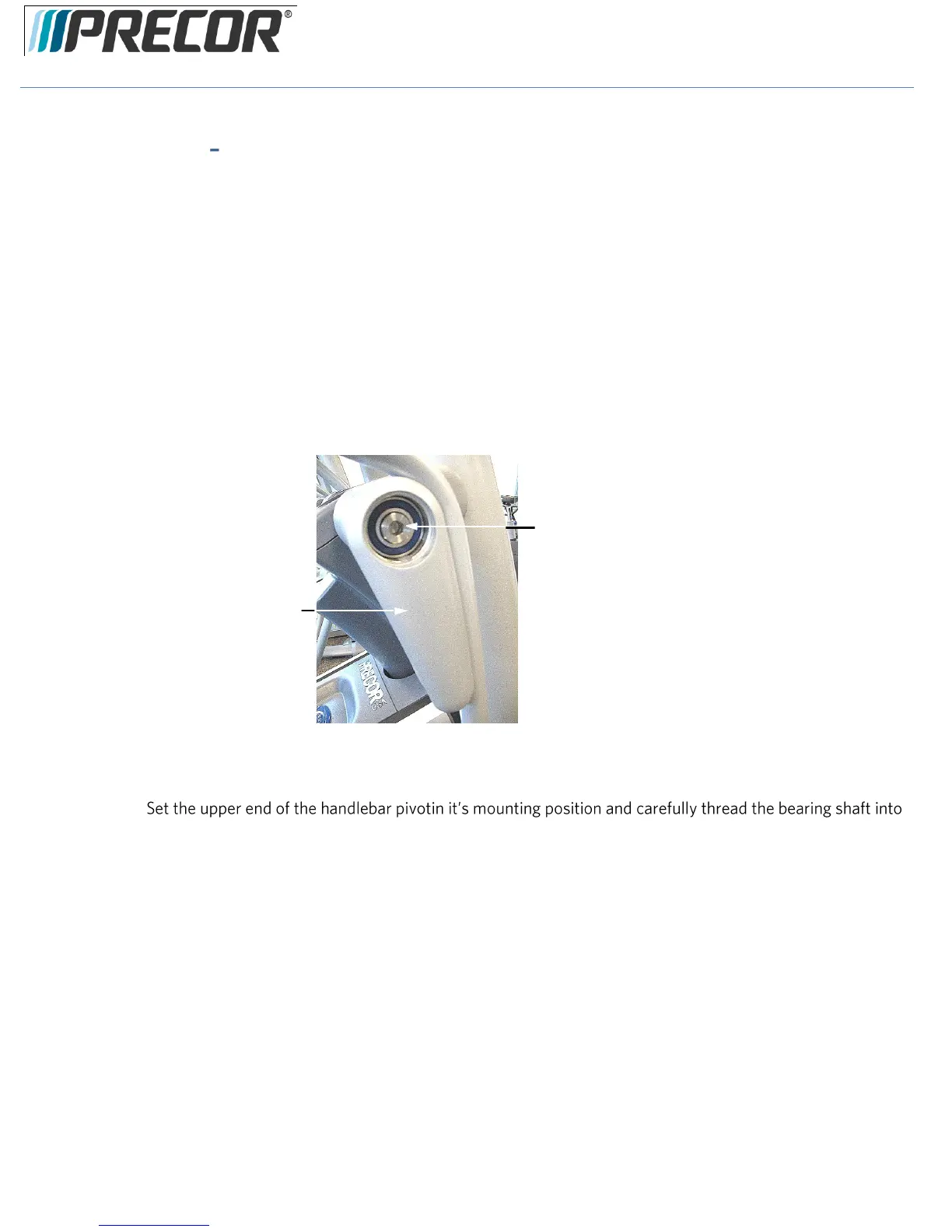

Diagram 10.22.1 - Handlebar Pivot
3. Remove the handlebar pivot from the unit.
4.
the frame. Care must be taken to avoid cross-threading the bearing shaft.
5. Torque the bearing shaft to 150 foot pounds (1800 inch pounds).
6. Replace the handlebar per Procedure 10.15.
7. Insert the cap into the upper end of the upper pivot arm.
Bearing Shaft
Handlebar Pivot
