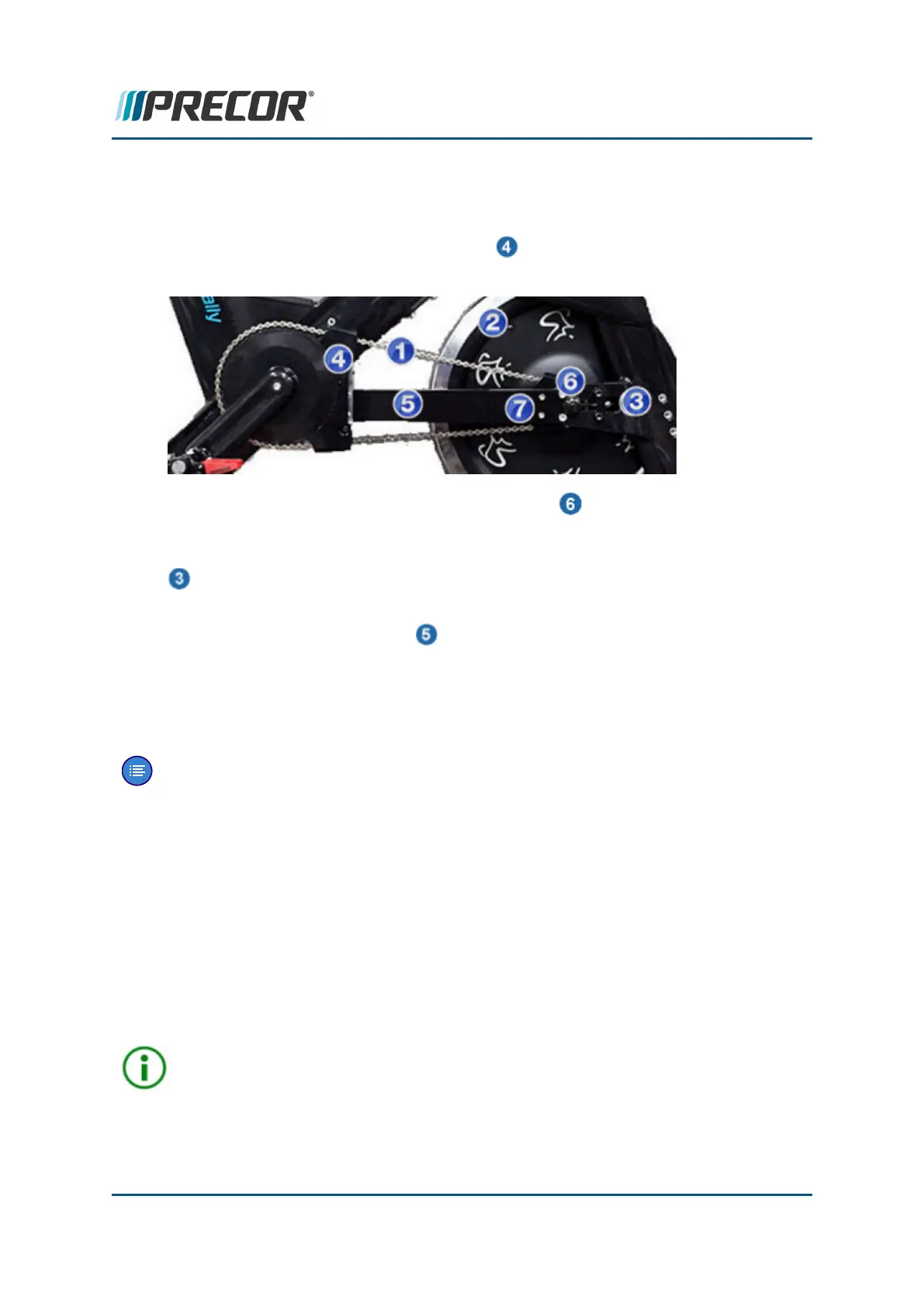

1. Remove front and rear chain guards, see "Belt/Chain Guard Cover Replacement" on
page19.
2. Remove all brake pad resistance by turning the resistance knob counter clockwise (-).
3.
Remove the rear chain sprocket finger guard by removing the fasteners (2x) using a
5 mm hex key. Retain part(s) and/or fastener(s) for installation.
4.
Loosen, but do not remove, the left and right axle nuts using a 19 mm wrench to
allow axle movement.
5. Remove chain tension by alternately loosening the left and right chain adjustment nuts
using a 10 mm wrench. Remove nuts. Retain part(s) and/or fastener(s) for install-
ation.
6.
Remove the frame cross member by removing the two front and two rear bolts,
washers, and nuts using a 6 mm hex key. Grasp the cross member to prevent falling dur-
ing removal. Retain part(s) and/or fastener(s) for installation.
7. Remove the flywheel using two service techs to carefully slide the flywheel rearward off
the frame.
NOTE:Make sure there is no brake pad resistance applied to the flywheel.
8. Remove the chain by carefully removing the chain off the front sprocket and then sliding
the chain over the rear crank arm and pedals.
Installation Instructions.
9. Place the chain over the pedals and rest it on the crank arm, do not put the chain onto
the sprocket teeth.
10. Place the other end of the chain onto the flywheel axle sprocket teeth.
11. Reinstall the flywheel using two service techs to carefully slide the flywheel into the
frame axle bracket. The chain adjustment bolts need to slide thru the adjustment nut
bracket holes.
TIP: You may find it easier to stand the bike frame on its front (resting on the front sta-
bilizer and handlebar) and then installing the flywheel into the axle mounting slots.
The weight of the flywheel will help to slide the flywheel into the mounting slots. Care-
fully hold the flywheel and return bike to the upright position.
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 29
5 Replacement Procedures
Chain Drive and Flywheel Replacement
