b. Use a thin wall 5/16' deep socket to hold the locking nut from turning while loosen-
ing the adjustment knob until removed. Keep light pressure on the adjustment
knob while loosening.

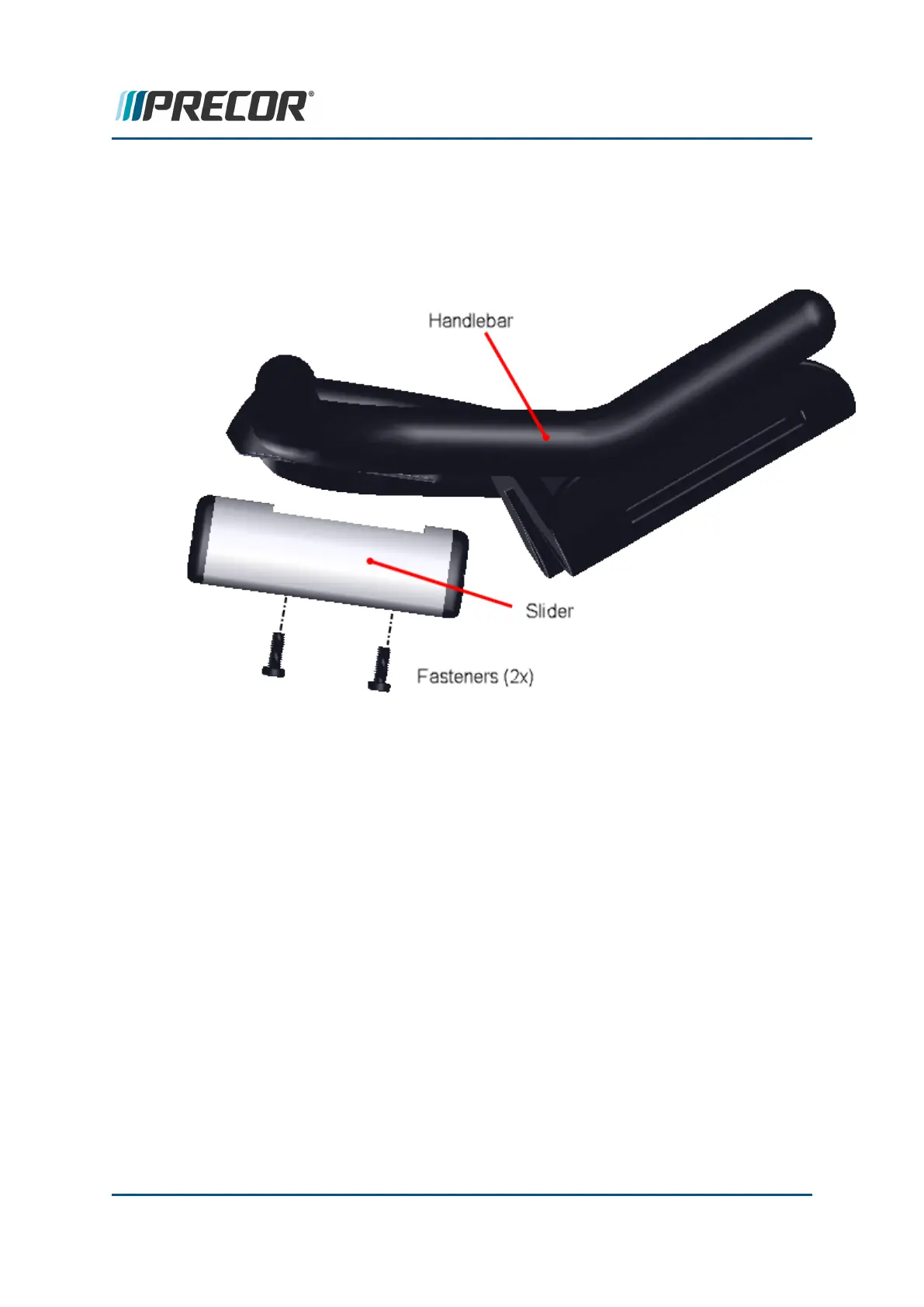

3. Remove the two fasteners and remove the slider from the handlebar.
Installation Instructions
4. Install the handlebar onto the slider in reverse order.
5. Reinstall the handlebar slider onto the handlebar post, see """Handlebar slider replace-
ment Instructions" on page1" above" on page31.
Handlebar Post replacement Instructions
Removal Instructions
1. Pull the handlebar height adjustment pop-pin and remove the handlebar post from the
frame. The handlebar post can be removed with the handlebar slider assembly
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 33
5 Replacement Procedures
Handlebar Assembly Replacement
