installed.
Installation Instructions
1. Clean and apply a thin film of the 3-IN-ONE SILICONE lubricant onto the handlebar
assembly post. Do not apply lubricant to the handlebar forward/back slider.

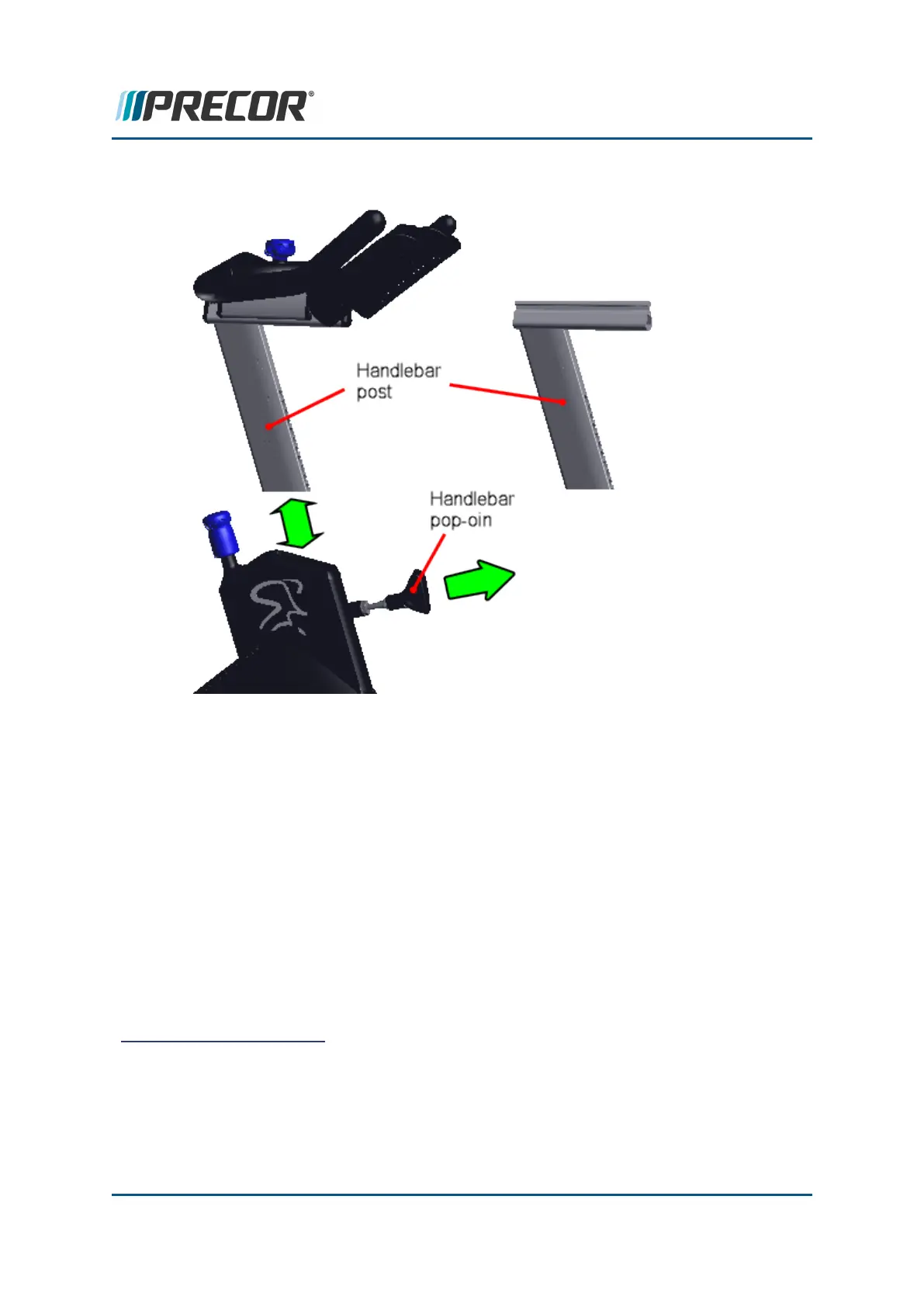

2. Install the handlebar post into the frame. Pull the handlebar pop-pin and engage one of
the post height holes.
3. If removed, reinstall the handlebar onto the handlebar slider, see """Handlebar replace-
ment Instructions" on page1" above" on page31.
4. If removed, install the handlebar slider assembly onto the handlebar post, see """Handle-
bar slider replacement Instructions" on page1" above" on page31.
5. Adjust the handlebar height and vertical reach to a comfprtable position.
6. Verify bike operation and return to service.
See Also
"Handlebar Adjustment Knob Replacement" on the facing page
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 34
5 Replacement Procedures
Handlebar Assembly Replacement
