Vitality Series Selectorized Line Leg Press/Calf Extension Assembly Guide: Getting Started 2
Getting Started
CAUTION: Do not attempt assembly by yourself. You will need assistance to
assemble this unit.
With assistance, assembly of the Leg Press / Calf Extension takes about
20 minutes to complete. In addition, you should allow more time if this is your
first time assembling this equipment.
Tools Required
Tools Included
Hardware Guide
Open the Boxes
Open the boxes and remove the packing materials.
Be careful to open boxes and assemble components in the sequence presented
in this manual.
Box Contents:
• Box 1: Weight tower frame, top weight plate, add-on weight assembly,
weight cable, seat frame assembly, movement arm assembly, and hardware
kit
• Box 2: Weight tower shrouds and upholstery pads/rollers

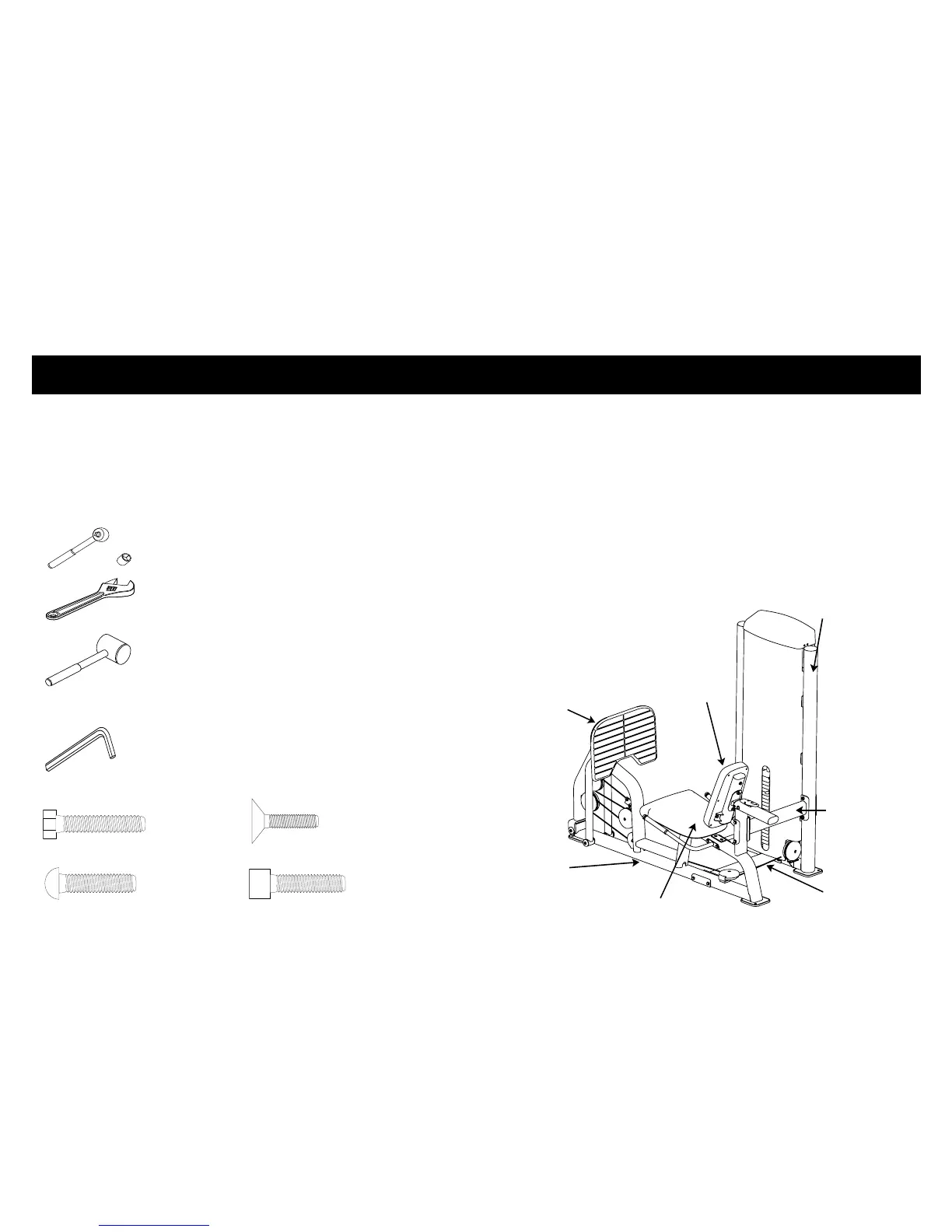

Figure 1: Equipment as assembled. The callouts identify the main components.
Ratchet Wrench and Sockets (metric)
Adjustable Wrench
Rubber Mallet
Hex Key Wrenches
Seat Pad
Back Pad
Foot Plate
Seat Frame
Weight Tower
Frame
Cross Support
Base Support
HHB = Hex Head Bolt
BHCS = Button Head Cap Screw
FHCS = Flat head Cap Screw
SHCS = Socket Head Cap Screw
