Vitality Series Selectorized Line Leg Press/Calf Extension Assembly Guide: Assemble the Equipment 3
Assemble the Equipment
CAUTION: Proper alignment and adjustment of the equipment is critical. While
tightening the fasteners, be sure to leave room for adjustments. Do not fully
tighten fasteners until instructed to do so.
Make sure the equipment is stable and placed on a solid surface. The equipment
is designed to be freestanding; however, it can be bolted to the floor for extra
stability. Precor highly recommends that the equipment be bolted to the floor to
reduce the risk of toppling the equipment due to improper use. Since floor
construction varies, please consult a professional building engineer for proper
fastening.
Attach the Weight Tower Frame to the Seat Frame
1. Attach the base support to the weight tower frame and seat frame using:
2 – M10 x 100 mm hex head bolts (base support to weight tower frame)
2 – M10 x 140 mm hex head bolts (base support to seat frame)
8 – 11 mm flat washers
4– M10 nylon lock nuts
Partially tighten the fasteners so the weight tower frame and seat frame are
stable.
2. Attach the cross support to the weight tower and seat frame using:
2 – M10 x 125 mm hex head bolts (cross support to weight tower frame)
2 – M10 x 135 mm hex head bolts (cross support to seat frame)
8 – 11 mm flat washers
4 – M10 nylon lock nuts
Partially tighten the fasteners.

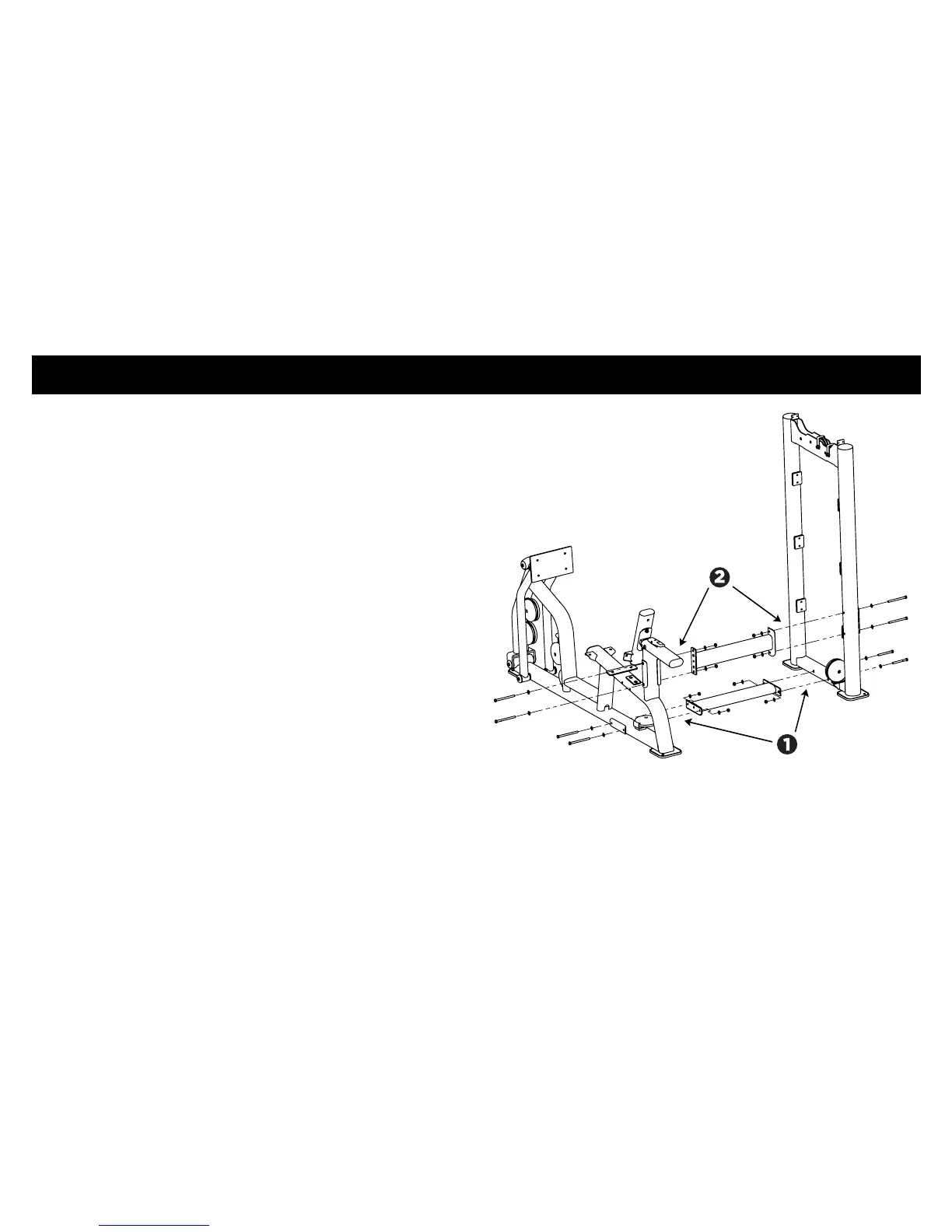

Figure 2: Major frame component assembly
