Vitality Series Selectorized Line Leg Press/Calf Extension Assembly Guide: Assemble the Equipment 10
Attach the Seat Pad and Back Pad
1. Attach the seat pad to the seat mounting bracket using:
4 – M10 x 30 mm hex bolts
4 – 11 mm flat washers
Note: The wide end of the seat pad should be facing the foot plate.
2. Attach the back pad to the back pad frame using:
2 – M10 x 30 mm hex bolts
1 – M10 x 75 mm hex bolt
3 – 11 mm flat washers
Note: The narrow end of the back pad should face upward.
3. Attach the rubber foot pad to the foot plate by positioning the top edge of
the rubber foot pad over the lip of the foot plate, and pressing the side edges
of the foot pad over the sides of the foot plate. Press the bottom edge of the
foot pad over the bottom side of the footplate.

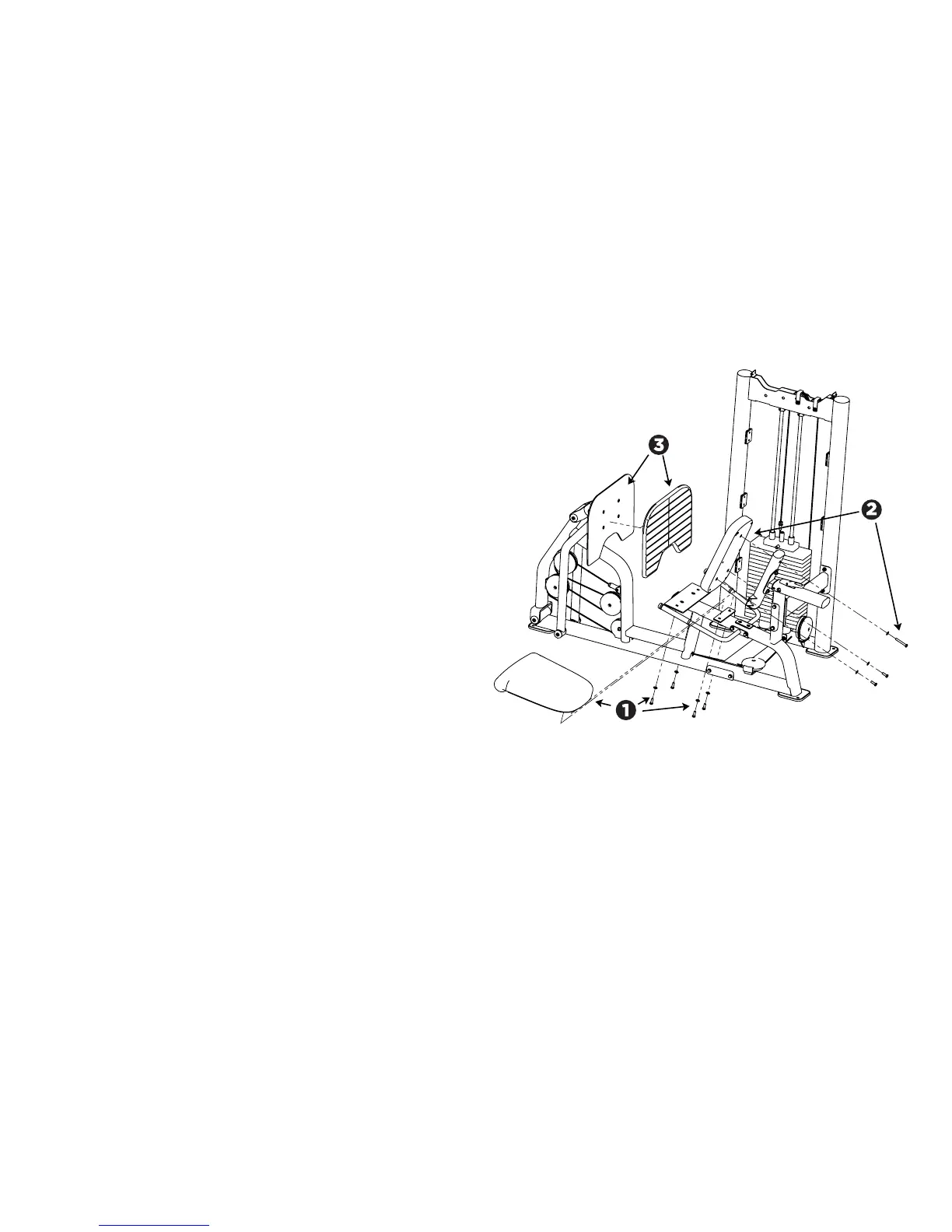

Figure 11: Seat, back, and foot pad attachment
