Vitality Series Selectorized Line Leg Press/Calf Extension Assembly Guide: Assemble the Equipment 11
Install the Weight Stack Shrouds and the Top Cap
Note: The inside shroud has a slot for weight selection. Both shrouds have three
slotted tabs on each side that fit into the shroud clips mounted to the inside of
the weight tower uprights.
1. Align the slotted tabs on the inside shroud with the shroud clips on both
sides of the weight tower.
2. Press the hooks into the clips and lower the shroud securely into place.
3. Repeat steps 1 and 2 to install the outside shroud.
4. Place the top cap on top of the shrouds so that the top edges of the shrouds
fit into the slot between the lip and the ribs of the top cap. Secure the top
cap to the weight tower frame using:
4 – M6 x 12 mm button head bolts
4 – 7 mm flat washers
Note: When you secure the top cap, if the top edges of the shrouds do not fit
securely into the slot between its lip and ribs, remove the cap and the shrouds.
Loosen the fasteners securing each of the shroud clips, then secure each clip
again so that it is mounted as high on the weight stack frame as possible. You
will need to push the clips up and hold them in place while you secure them.
After you have repositioned all of the shroud clips, repeat this procedure to
install the shrouds and the top cap.

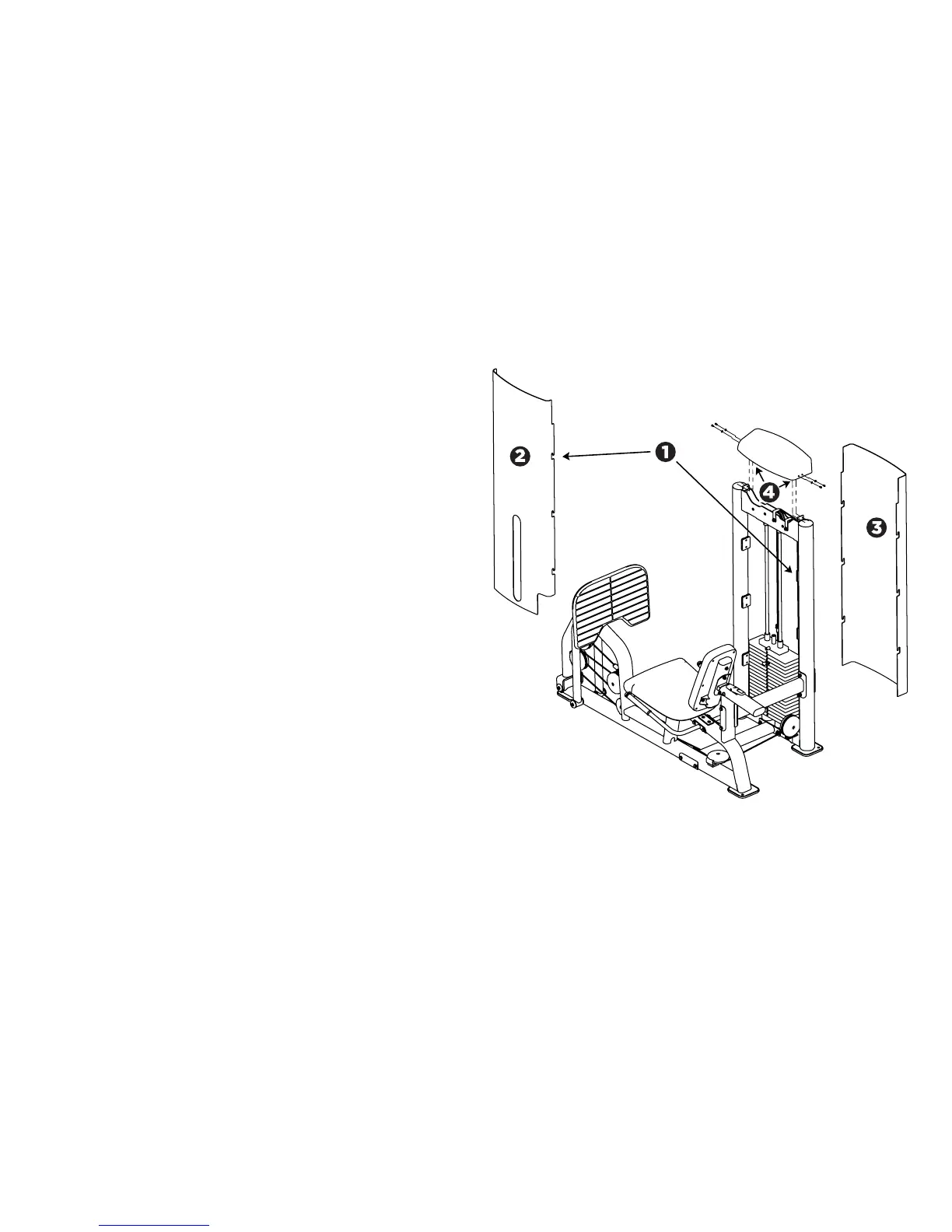

Figure 12: Weight stack shroud and top cap installation
To Next Page
