Vitality Series Selectorized Line Leg Press/Calf Extension Assembly Guide: Assemble the Equipment 4
Attach the Foot Plate to the Movement Arm
1. With assistance, align the foot plate to the mounting bracket on the
movement arm. Have your assistant hold the foot plate to the mounting
bracket on the movement arm, while you attach the foot plate using:
4 – M10 x 30 mm flat head cap screws
4 – 11 mm flat washers
4 – M10 nylon lock nuts
2. Attach the handlebar assembly to the seat frame using:
2 – M10 x 130 mm hex head bolts (horizontally)
2 – M10 x 75 mm flat head cap screws (vertically)
6 – 11 mm flat washers
4 – M10 nylon lock nuts
3. Attach the seat pad base support to the seat frame using:
2 – M10 x 25 mm flat head cap screws
2 – 11 mm flat washers
2 – M10 nylon lock nuts

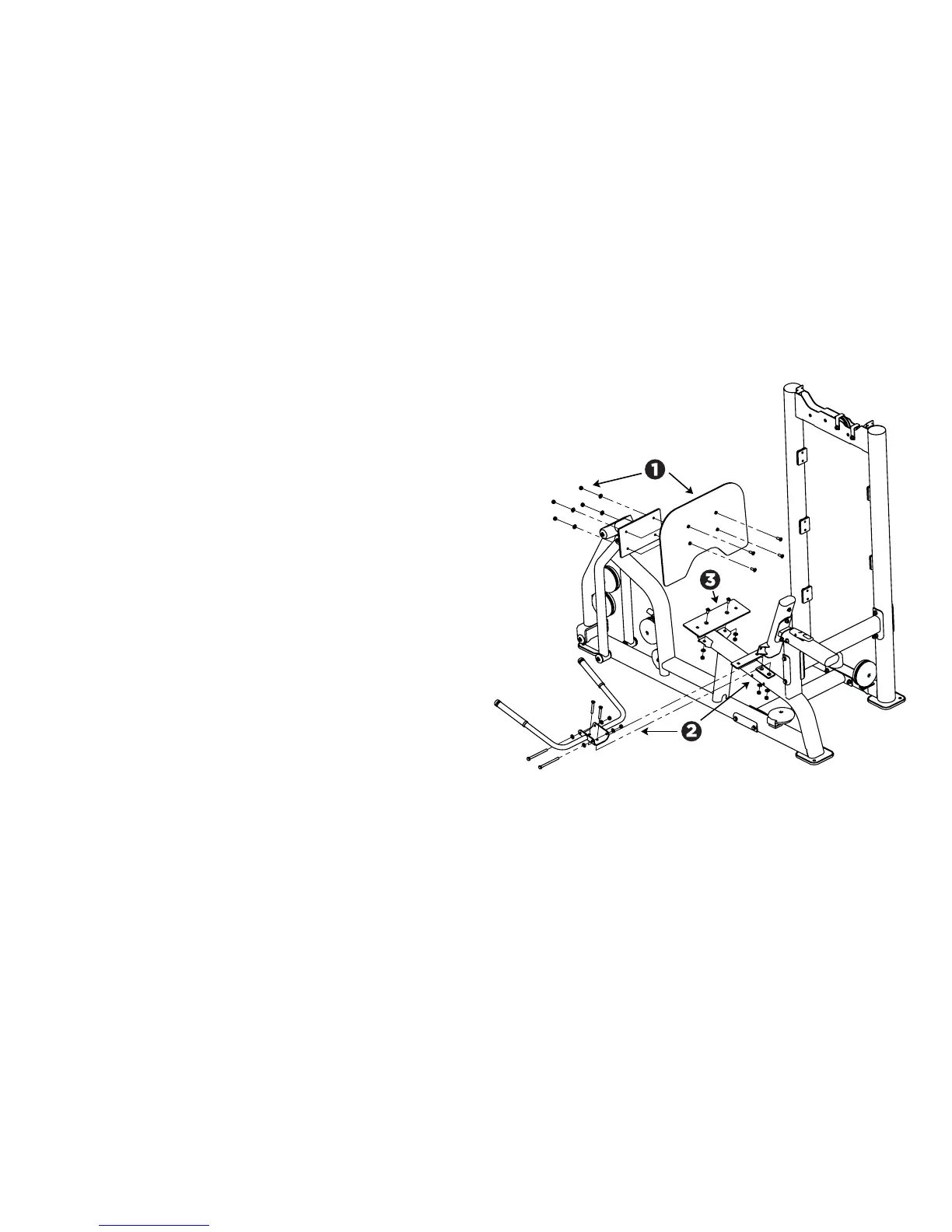

Figure 3: Foot plate and handlebar attachment
