Vitality Series Selectorized Line Leg Press/Calf Extension Assembly Guide: Assemble the Equipment 5
Install the Weight Stack Assembly
1. Insert the guide rods into the holes at the bottom of the weight tower frame.
Important: A hole passes through one end of each guide rod. Be sure to insert the
end with the hole into the bottom of the frame.
2. Pull the guide rods away from the frame, keeping their lower ends engaged
in the bottom of the tower frame. Slide one weight stack bumper over each
guide rod, narrow end up.
3. Check the guide rods for silicone lubricant. If you do not find any, then add
some of the silicone lubricant supplied in the hardware kit to the guide rods.
4. Carefully slide eighteen 15 lb. (7 kg) weight plates onto the guide rods, one
by one.
5. Slide the top weight plate (25 lb/12 kg) with weight stack stem onto the
two guide rods and lower the stem through the center holes of the weight
plates.
6. Slide the ring at the end of the tether on the weight selection pin over the
right-hand post on the top weight plate.
7. Screw the weight stack cable loosely into the center post on the top weight
plate.
8. Secure the weight stack assembly to the weight tower frame. Slide the guide
rod locking collars onto the guide rods with their narrow shoulders facing up.
Re-align the guide rods with the mounting holes at the top of the weight
tower.
9. While your assistant holds the guide rods in place, slide the collars up so the
shoulder of the collar fits into the tower frame. Secure the collars to the
guide rods by tightening the M8 set screws using the S4 hex key.
10. Apply the weight plate labels (select LBs or KGs) to the right of the weight
selection holes.

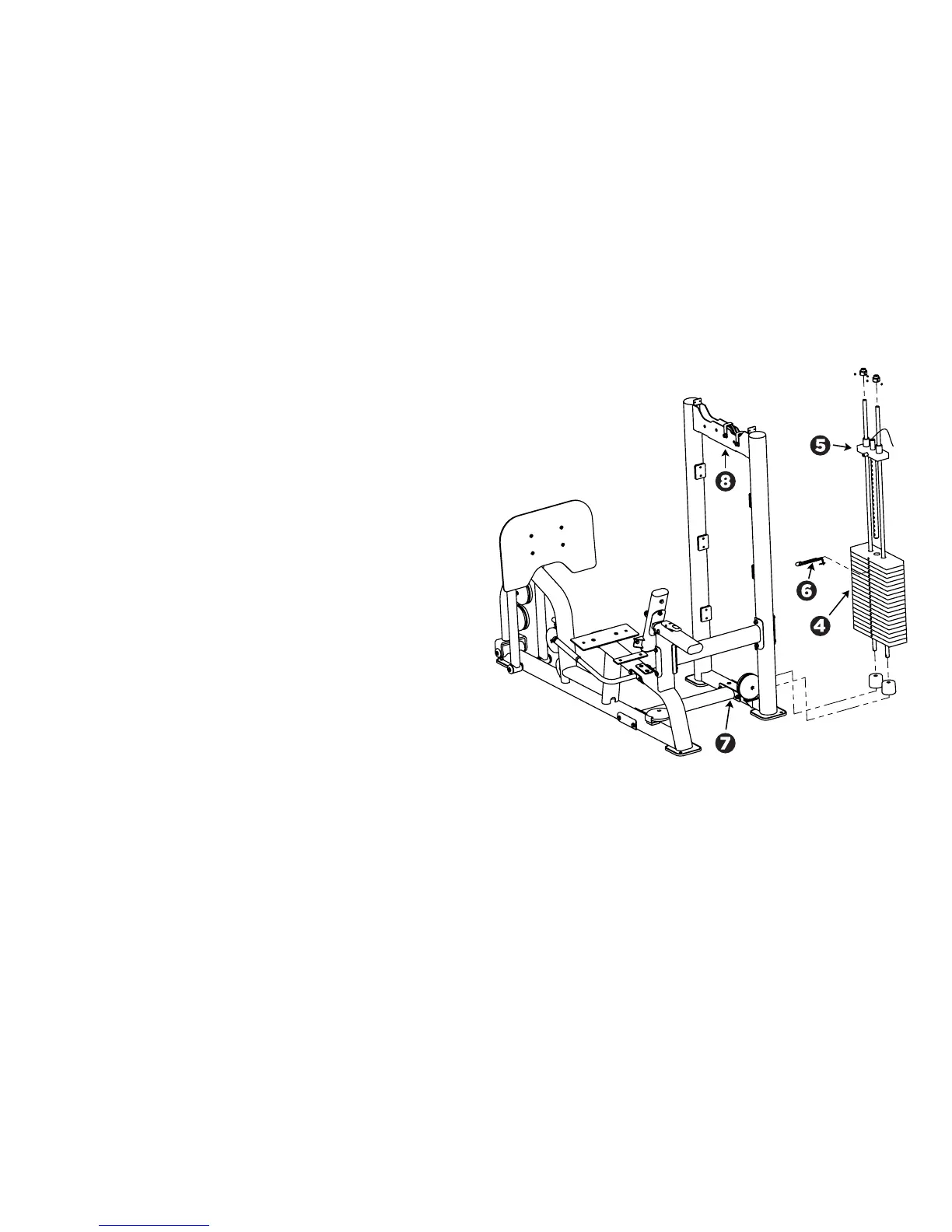

Figure 4: Weight stack installation
To Next Page
