Vitality Series Selectorized Line Leg Press/Calf Extension Assembly Guide: Assemble the Equipment 6
Install the Add-On Weight Assembly
1. Insert the lower end of the 14 mm guide rod into the retaining ring at the
bottom of the weight tower frame.
Note: The end of the guide rod with the screw hole in it should face up.
2. Slide the 287 mm support tube onto the guide rod from the top down.
3. Slide the support ring onto the guide rod, followed by the rubber bumper.
4. Slide the 7.5 lb (3.5 kg) add-on weight onto the guide rod, making sure that
the groove is at the top end of the weight.
5. Attach the top of the guide rod to the bracket at the top of the weight tower
frame using:
1 – M10 x 25 mm hex head bolt
1 – 11 mm flat washer
6. Fully tighten the M8 set screw in the retaining ring using the S4 hex key.

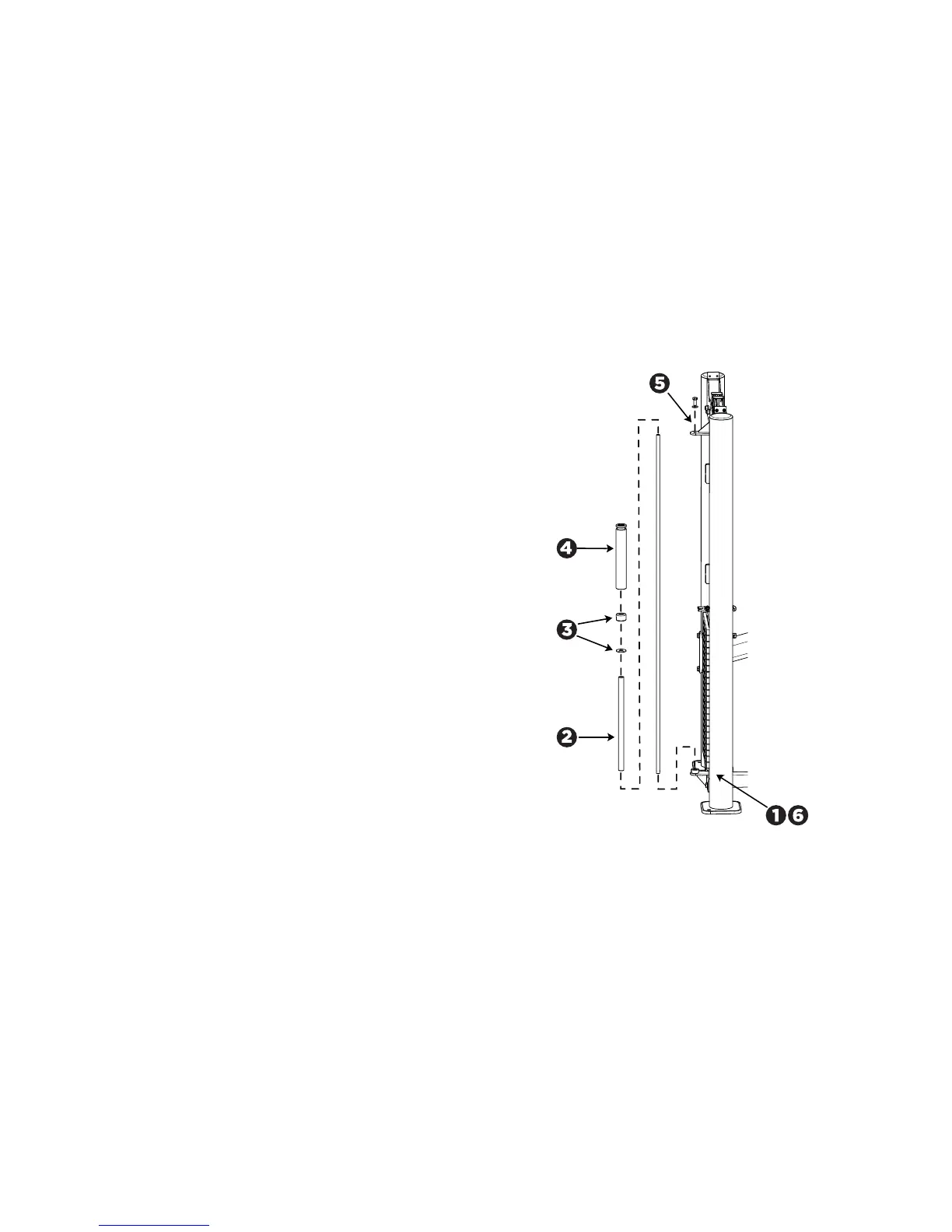

Figure 5: Add-on weight installation
