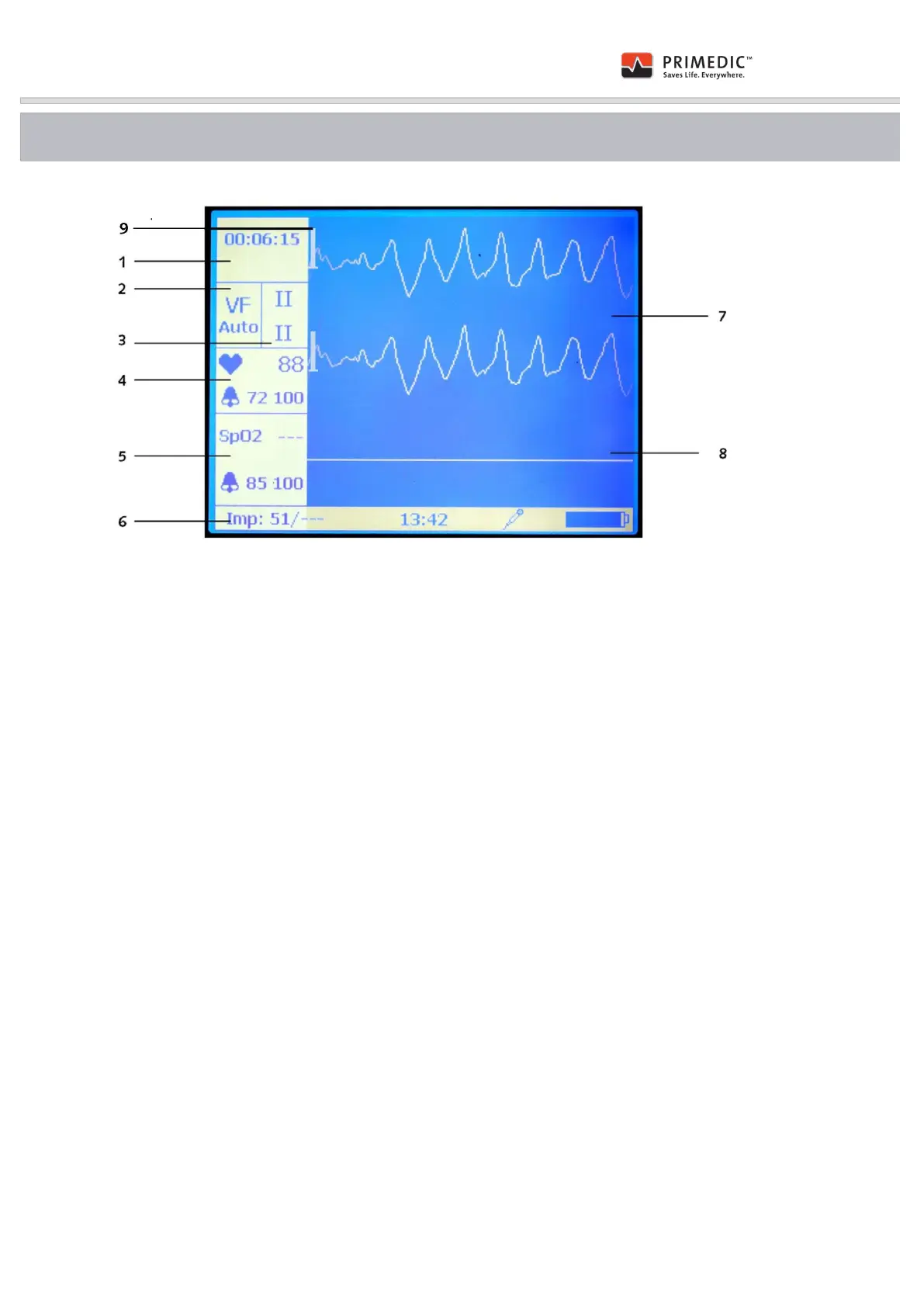

Fig. 14: Monitor display
(1) Indicator Swtich-on time/ Energy level / Pacer
(2) Mode AUTO/Manual
(3) ECG channel display
(4) Indicator heart rate and alarm limits
(5) Indicator Pulsoximeter and alarm limits
(6) Status line for indicating patient impedance, time, microphone, battery charge, pacer
status, CF card capacity, printer status, paper status
(7) Indicator ECG-channels (max.2 )
(8) SpO2 curve, messages, information
(9) Calibration peak, height corresponds to 1mV (display size depends upon the
sensitivity of the ECG)
