Description of device

METRAX GmbH

DefiMonitor XD 21324 / GB / K05

37 / 116

4.5.4 ECG patient cable, 3-pin

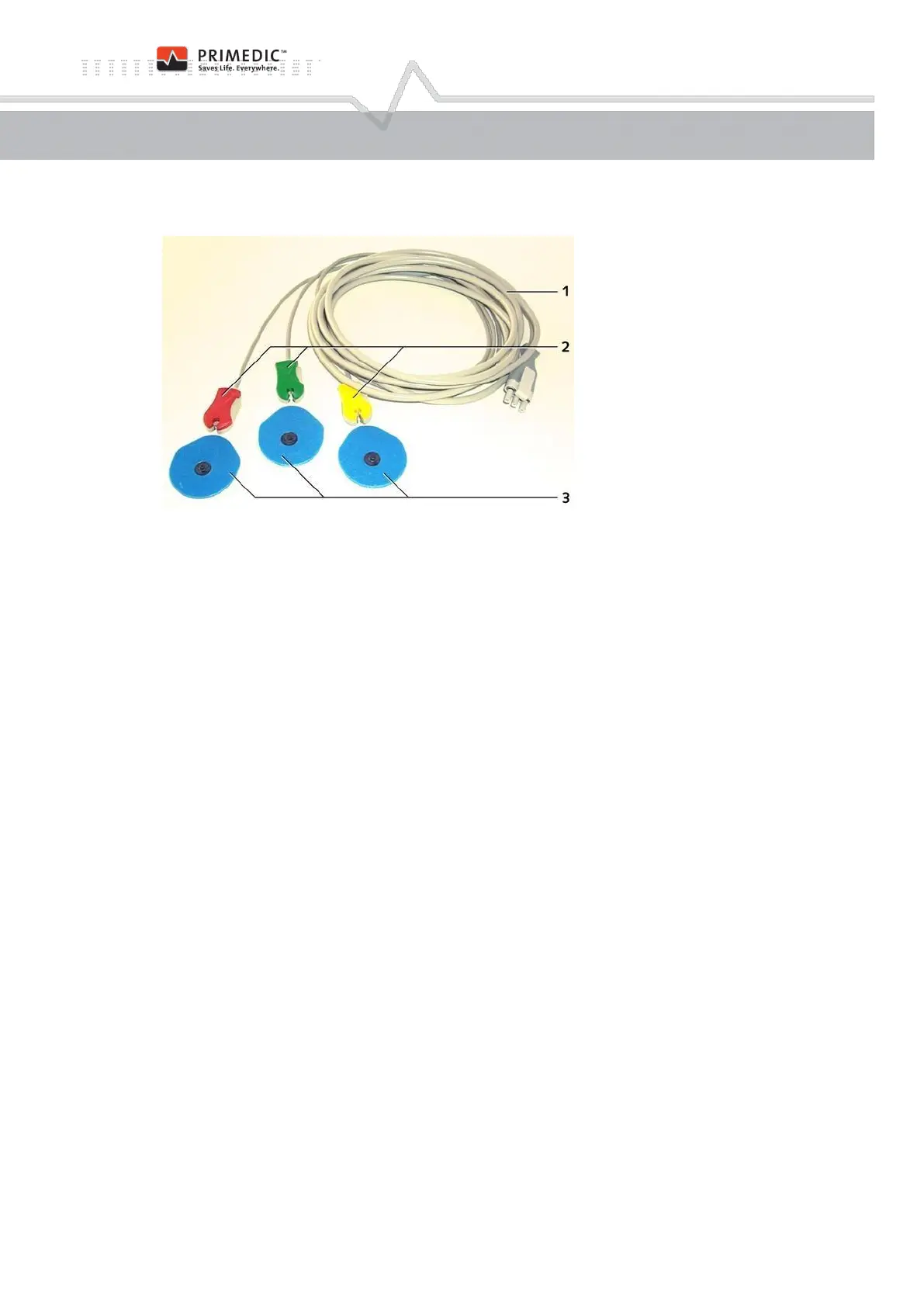

Fig. 18: ECG patient cable, 3-pin

(1) 3-pin ECG electrode cable with connector

(2) Electrode clips (red, green, yellow)

(3) ECG electrodes (Ag/AgCl)
