Description of device

36 / 116

DefiMonitor XD 21324 / GB / K05

METRAX GmbH

4.5.2 PRIMEDIC

SavePads Connect cable

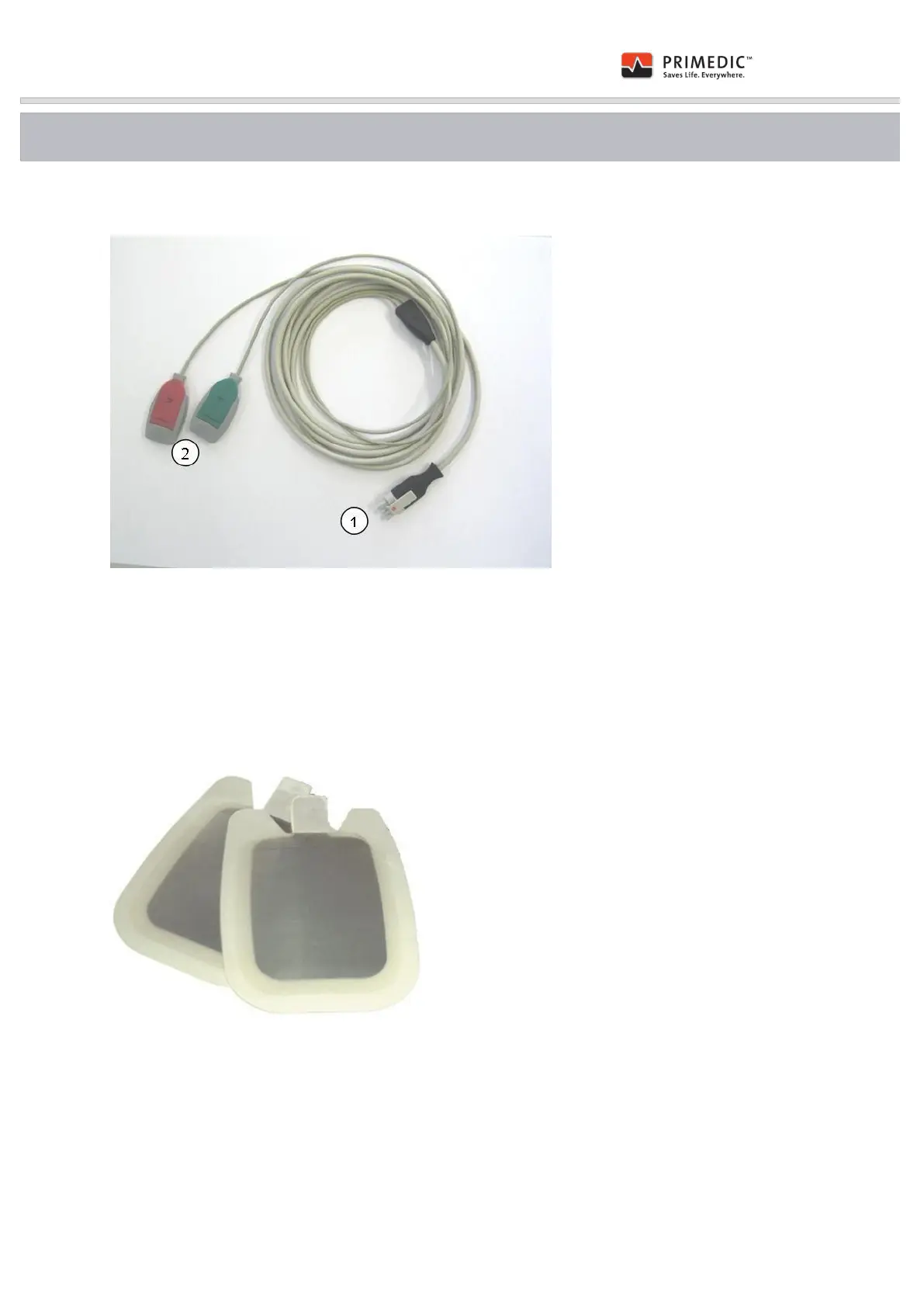

Fig. 16: PRIMEDIC™ SavePadsConnect cable, 2-pin

(1) Connector

(2) Connecting clips for SavePads Connect

4.5.3 PRIMEDIC

SavePads

Fig. 17: PRIMEDIC

SavePads Connect

Defibrillation electrodes with protective film
