Three items can be adjusted here:
• Tear off Position. This value adjusts the position of the
last label printed after it has been presented for tear off.
This only applies if the output mode is set to "Present the
label." Add to the current value to move the tear point
closer to the printer. Subtract from the current value to
move the tear point away from the printer. After adjusting
the value click the "Set" button to send the value to the
printer.
•
Left Margin Offset. This value moves the printed label
left or right. Add to the current value to move the printed
label to the right. Subtract from the current value to move
the printed label to the left. After adjusting the value, click
the “Set” button to send the value to the printer.
Note: Before adjusting this value make sure the label stock is properly load-
ed so that there is no gap between the edge of the liner and the fixed
throat guide. Any gap at this point will greatly affect the Left mar-
gin offset value needed to align the label. Also, if you adjust the
value with improperly loaded label stock you will have to adjust it
again if you load the label stock correctly the next time.
•

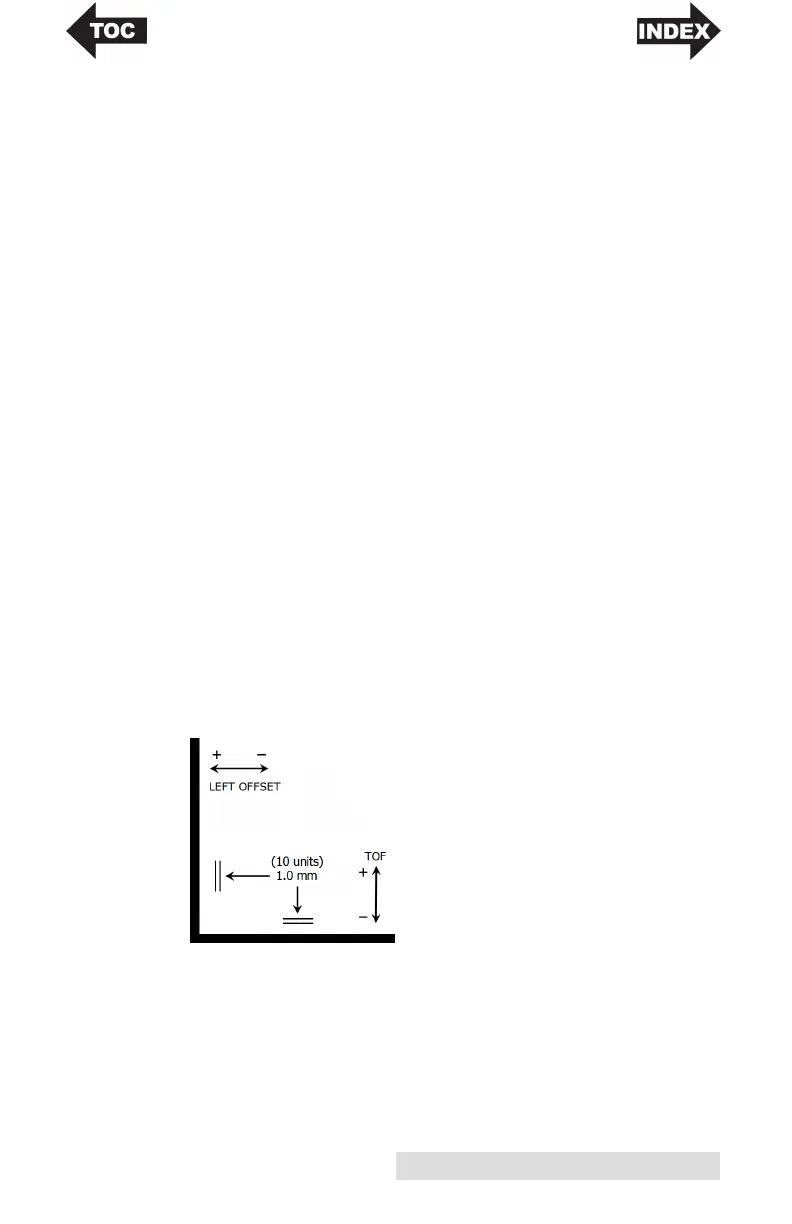

Top of Form (TOF). This value moves the print start
position up or down on the label. Add to the current value
to move the printed label down or toward the printer.
Subtract from the current value to move the printed label
up or away from the printer. After adjusting the value
click the “Set” button to send the value to the printer.
You may have to make
several adjustments to one or
more of these values. After
each adjustment you can
click the Test button to print
a small test pattern on the
label. This will help you find
the proper alignment value.
