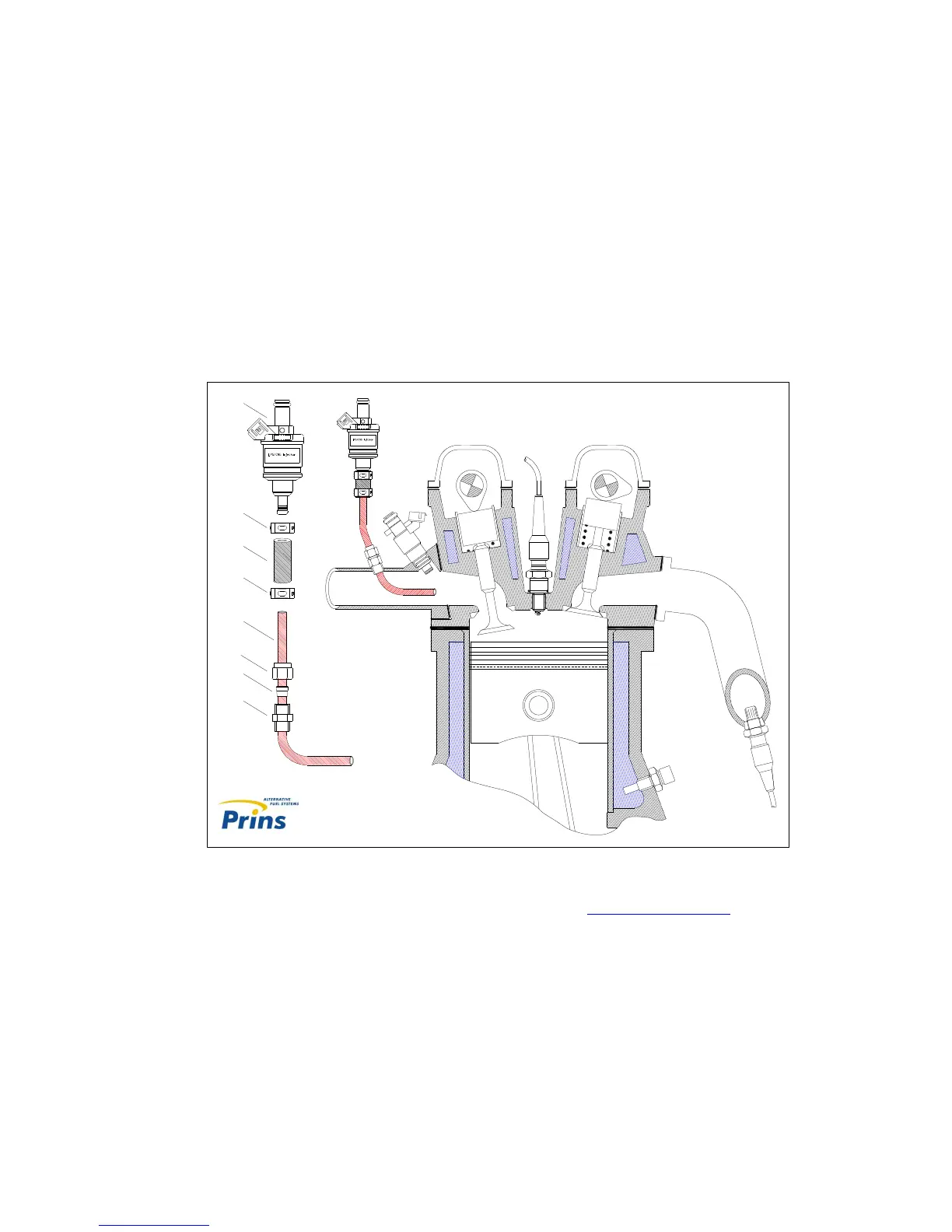

Diagram 2 VSI inlet manifold coupling with nylon hose

petrol injector

Coupling

Barrel

Hose clamp

Nylon hose

LPG hose

Nut

VSI injector

Hose clamp

inlet manifold

VSI inlet manifold coupling with nylon hose

exhaust manifold

oxygen sensor
