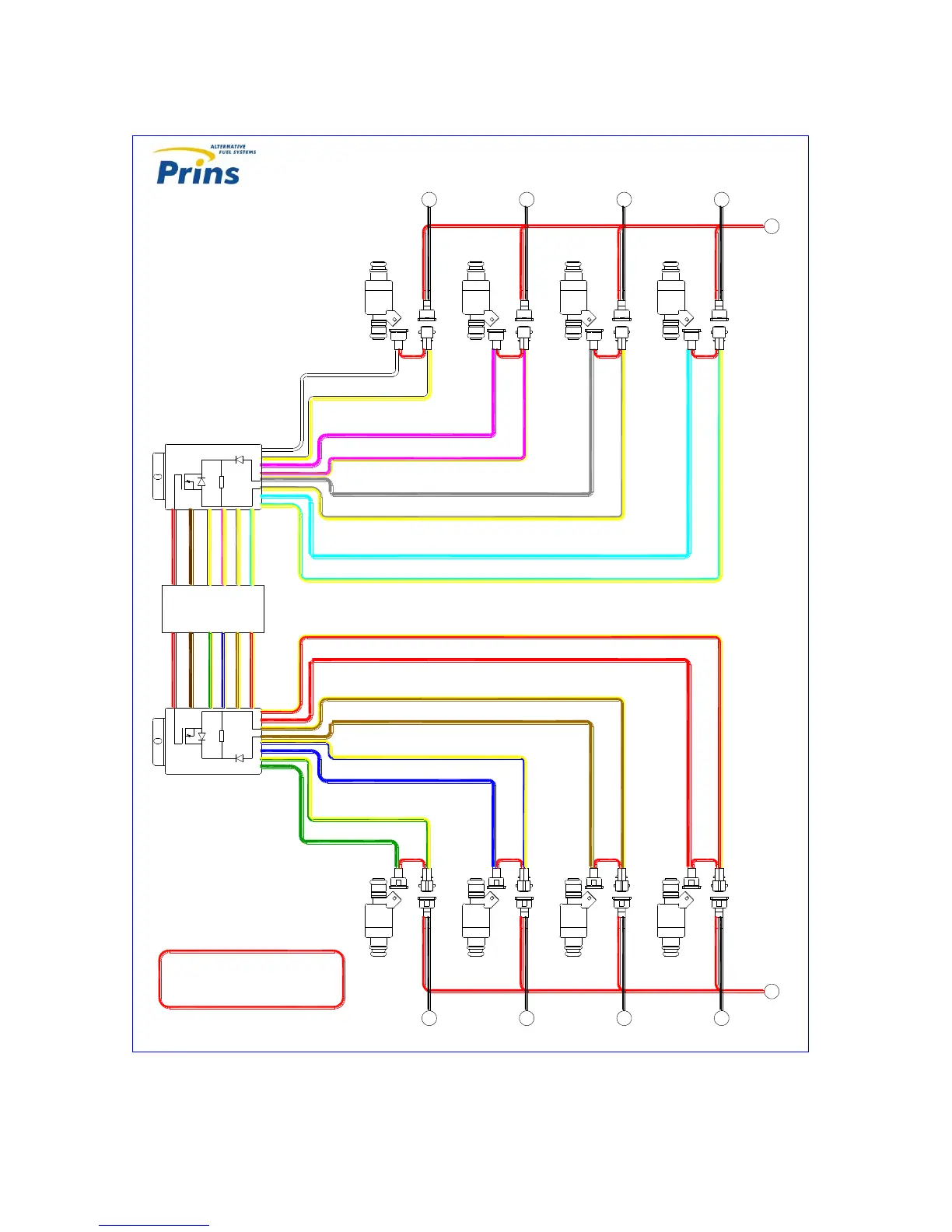

Diagram 17 Injection module 8-cylinder ( 180/ 70024 connector)
-
+
petrol ecu
8-CYLINDER CONNECTOR INJECTION MODULE VSI 1 REV.B 06-06-2005
green min inj side 2
green-yellow 38 ecu side 2
brown min inj side 6
brown-yellow 10 ecu side 6
blue min inj side 4
blue-yellow 36 ecu side 4
7
+
-
+
-
+
-
+
-
5
31
---
petrol ecu petrol ecu petrol ecu
PETROL INJECTORS
petrol ecu
pink min inj side 3
4
petrol ecu
PETROL INJECTORS
-
2
-
+
white-yellow 39 ecu side 1
white min inj side 1
- -
petrol ecu
6
-
+
-
+
8 cylinder
injection module
180/70024
grey-yellow 11 ecu side 5
grey min inj side 5
pink-yellow 37 ecu side 3
light blue min inj side 7
light blue-yellow 9 ecu side 7
-
petrol ecu
8
-
+
+
50 MAIN GROUND
26 SIMU LOW=ON
VSI-8 computer
11 ecu side 5
37 ecu side 3
39 ecu side 1
9 ecu side 7
50 MAIN GROUND
26 SIMU LOW=ON
36 ecu side 4
38 ecu side 2
8 ecu side 8
10 ecu side 6
red min inj side 8
red-yellow 8 ecu side 8
8 cylinder
injection module
180/70024
Make sure that the polarity of the
petrol injectors and the VSI
connectors are simular !
