Electrical connections Dual Sensor Interface (DSI)

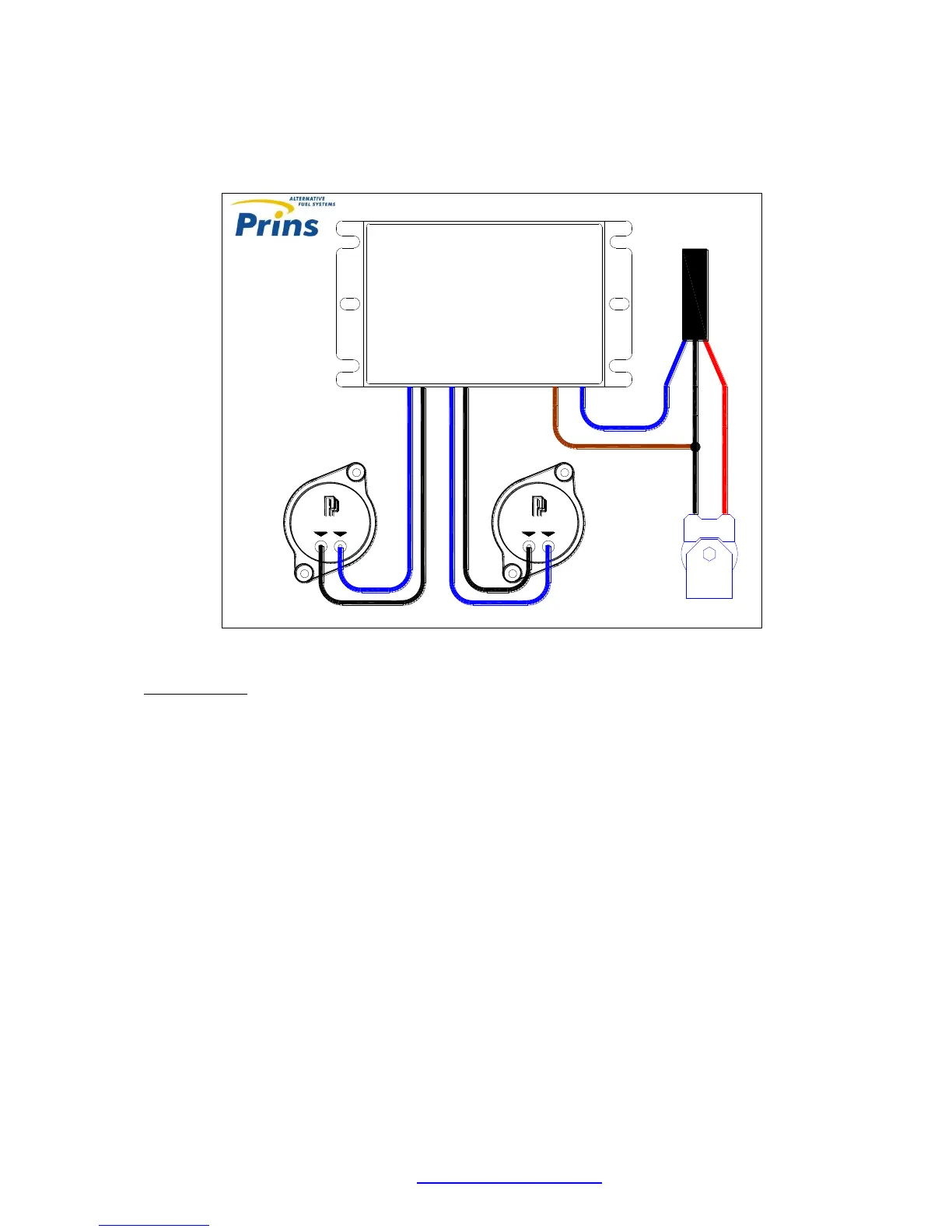

DSI connection:

Connect the interface wiring according to drawing, all blue and black wires are exchangeable since they

are internally connected.

The DSI makes it possible to connect two level sensors to one lpg switch.

The DSI will always show the highest lpg level on the switch.

PRINS

GROUND SIGNAL

BLACK BLUE

GROUND SIGNAL

BLACK BLUE

PRINS

Dual Sensor Interface

080/70066

Hall level indicator

080/70065

Tank lock off valve
