Prins VSI LPG - Electrical Connections

To Next Page

To Previous Page

Electrical connections on the LPG reservoir

The wire harness contains the wires for connecting the LPG reservoir.

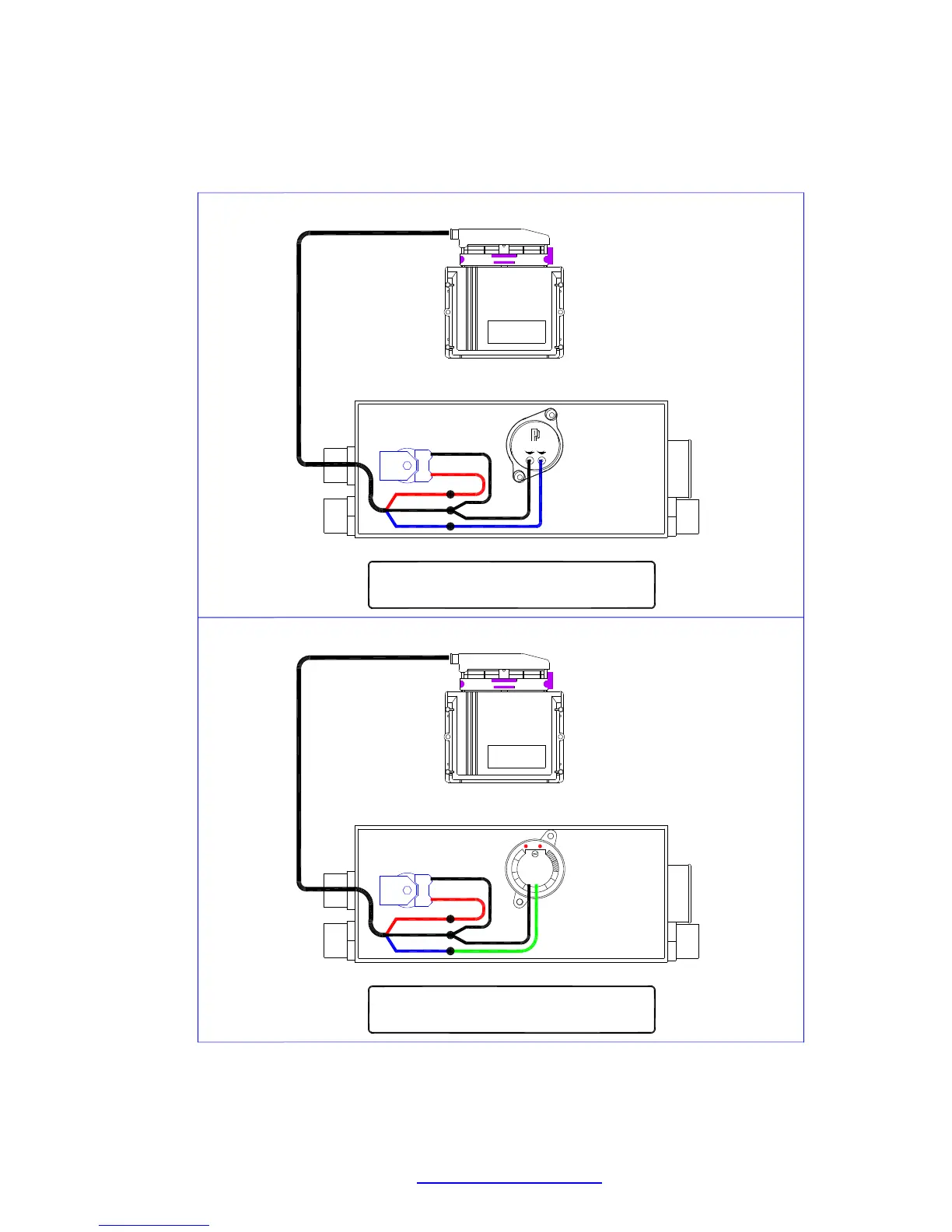

Refer to the following diagram when connecting the LPG reservoir.

BLACK BLUE

GROUND SIGNAL

PRINS

SOLDER THE CONNECTIONS IN THE FITTING BOX

AND PROTECT THEM WITH A SHRINK SLEEVE.

BLUE

BLACK

Tank gauge

Hall

COIL

TANK VALVE

BLACK

RED

BLACK

BLUE

FITTING BOX

VSI COMPUTER

TRIPLE WIRE CABLE

SOLDER THE CONNECTIONS IN THE FITTING BOX

AND PROTECT THEM WITH A SHRINK SLEEVE.

GREEN

BLACK

Tank gauge

0-95 Ohm

COIL

TANK VALVE

BLACK

RED

BLACK

BLUE

FITTING BOX

VSI COMPUTER

TRIPLE WIRE CABLE
