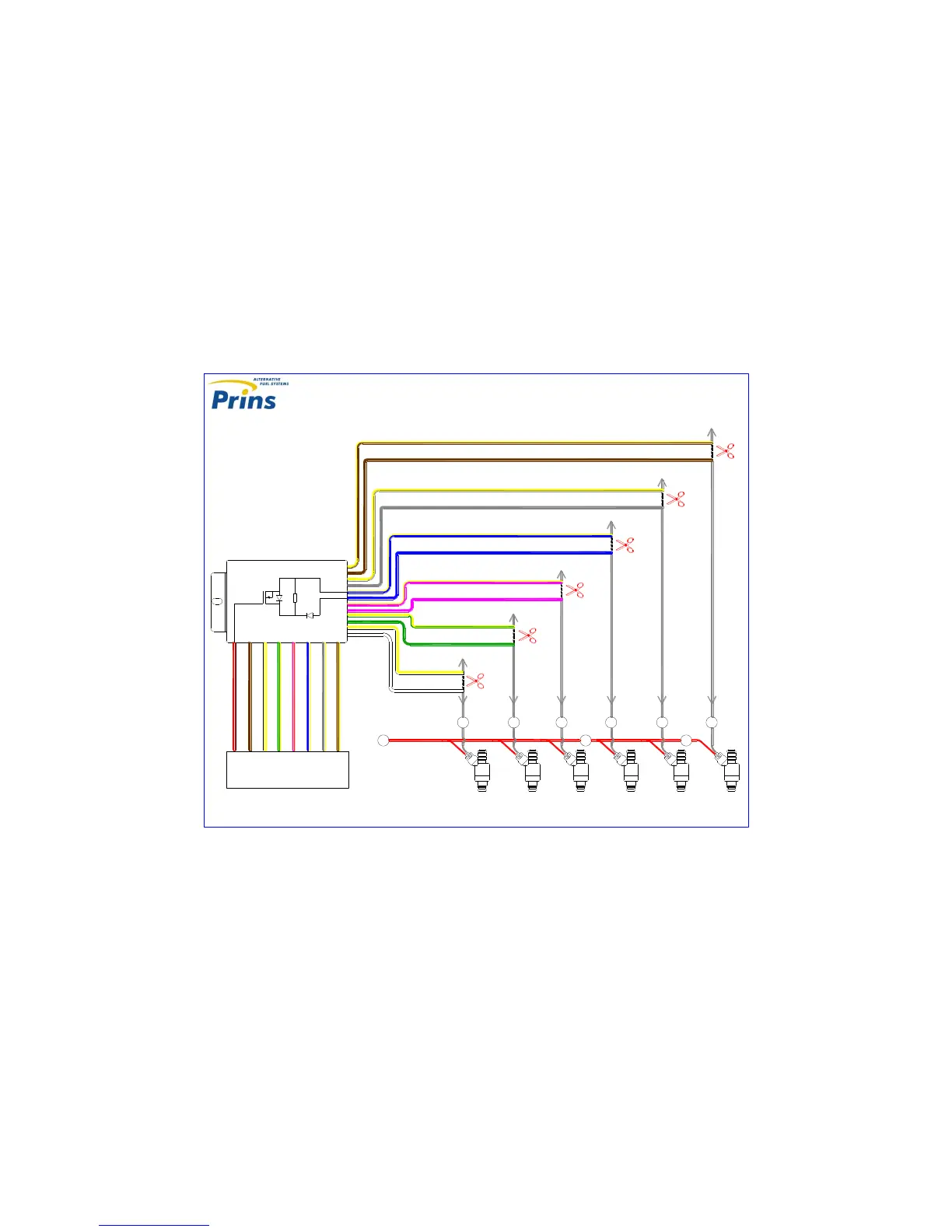

Diagram 16 Injection module 6-cylinder ( 180/70026 solder )
---
+
1 2
3
-
4
injection module
6 cylinder
180/70026
white min inj side 1
white-yellow 39 ecu side 1
petrol ecu
+
36 ecu side 4 37 ecu side 3 39 ecu side 1 38 ecu side 2
26 SIMU LOW=ON
50 MAIN GROUND
petrol ecu
petrol ecu
petrol ecu
PETROL INJECTORS
6-CYLINDER SOLDER INJECTION MODULE VSI 1 REV.B 06-06-2005
green min inj side 2
green-yellow 38 ecu side 2
pink min inj side 3
pink-yellow 37 ecu side 3
blue min inj side 4
blue-yellow 36 ecu side 4
5
+
6
--
petrol ecu
petrol ecu
11 ecu side 5 10 ecu side 6
grey min inj side 5
grey-yellow 11 ecu side 5
brown min inj side 6
brown-yellow 10 ecu side 6
VSI-8 computer
